GE8281SRM44.10A60E

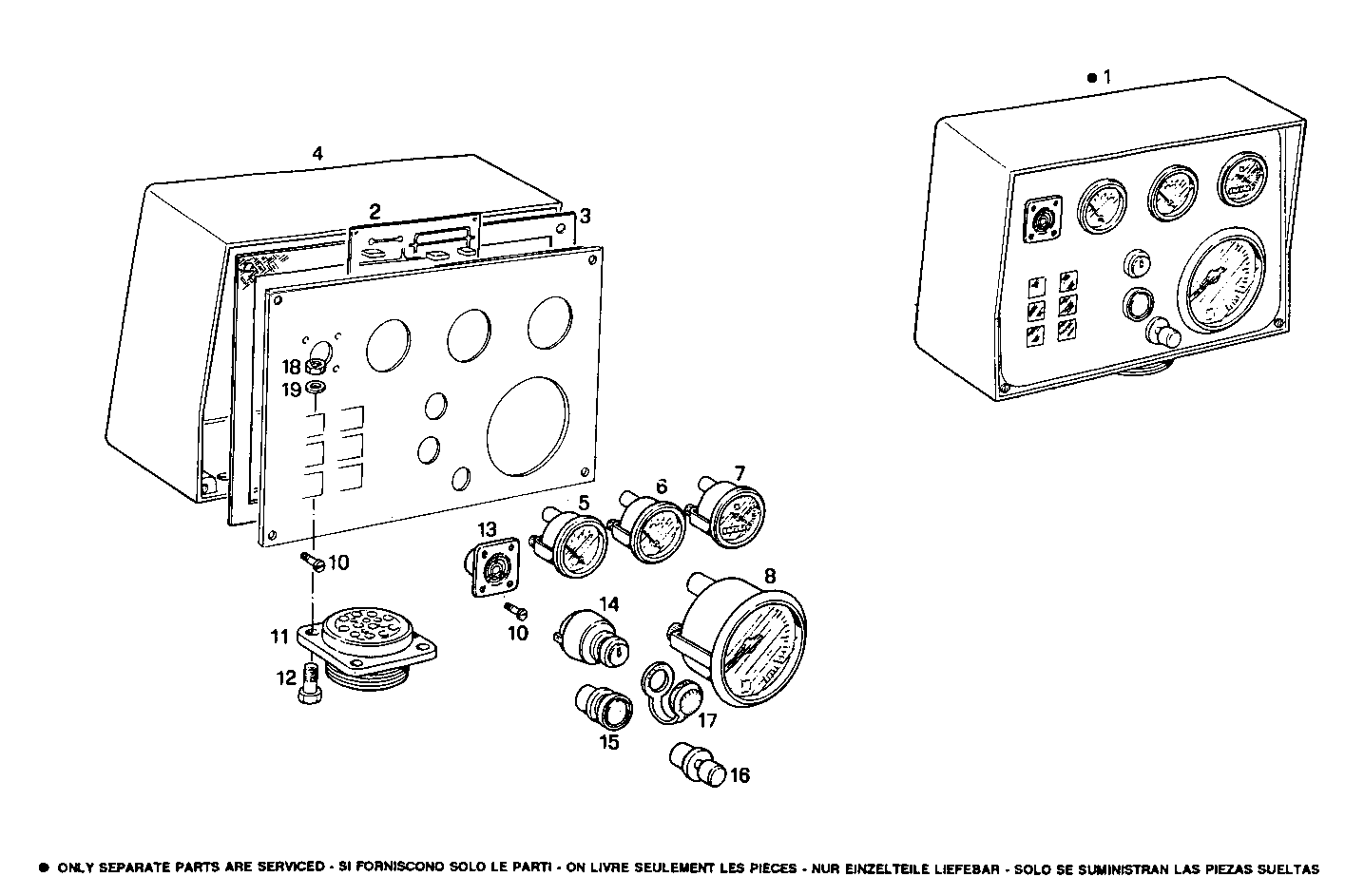

A38680901 ELECTRIC INSTRUMENTS PANEL - 12/24V - VDO

Iveco/FPT ELECTRIC INSTRUMENTS PANEL

Item Part number Description
1 8005597 INSTRUMENTS BOARD
2 8110391 ELECTRONIC CARD
3 8100350 GASKET
4 8108461 SUPPORT
5 8103060 PRESSURE GAUGE
6 8103061 THERMOMETER
7 8105392 VOLTMETER
8 8108379 REVOLUTION COUNTER
10 8103662 SCREW M4X10
11 8105629 CONNECTION
12 10374111 CYLIND-HEAD SCREW M4
13 8107950 ACOUSTIC HORN
14 8103708 SWITCH
15 8105611 PUSH BUTTON STOP
16 8111824 PUSH BUTTON RESET
17 8110226 CAP
18 16101711 NUT
19 12639901 WASHER
