GE8281SRM44.10A61E

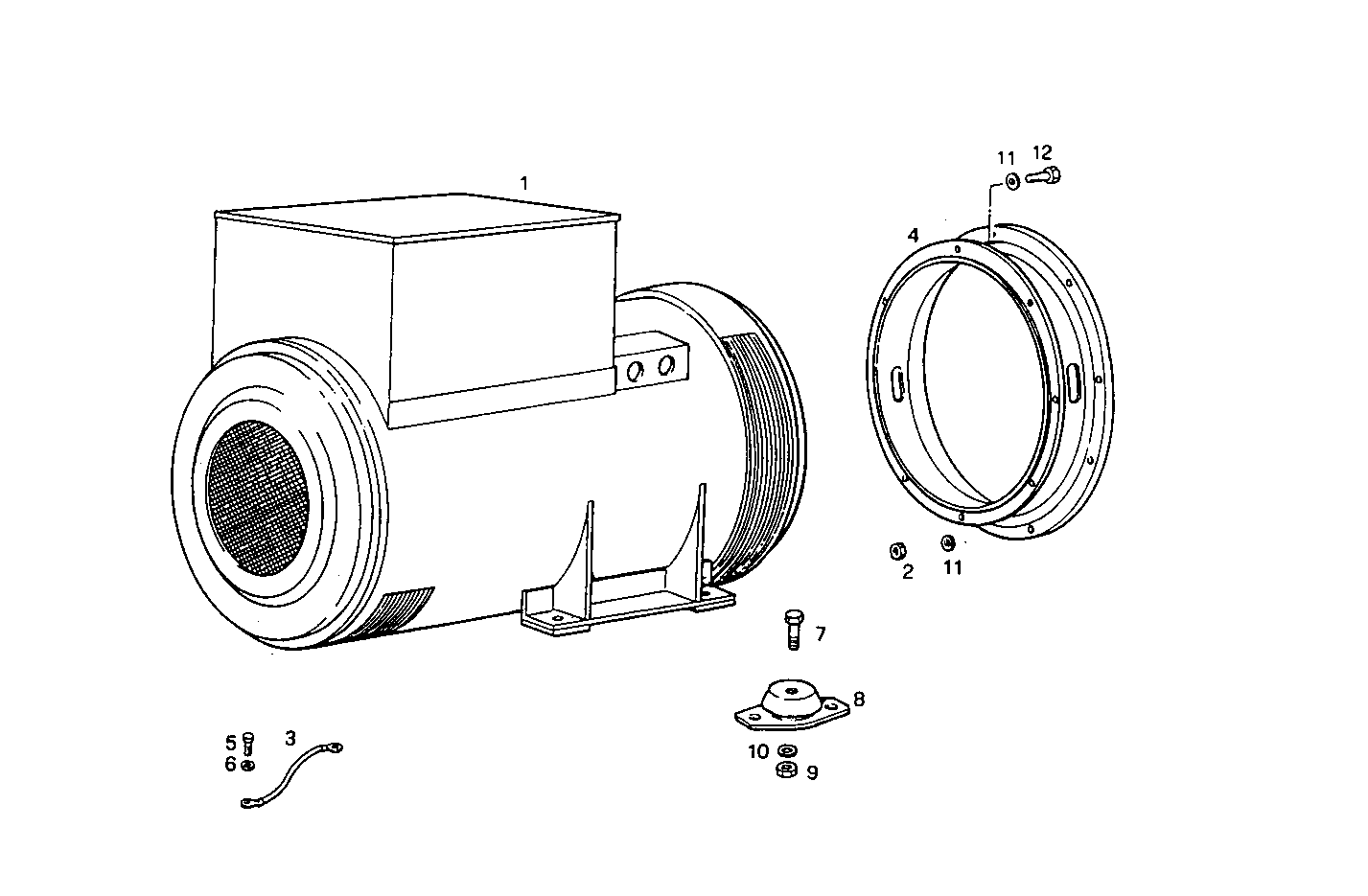

A37000916/01 ELECTRIC MACHINE - MARELLI

Iveco/FPT ELECTRIC MACHINE

Item Part number Description
1 8008393 ELECTRIC MACHINE
2 17038221 HEXAGON NUT M10
3 8104707 WIRE/CABLE
4 4928053 COUPLING BELL
5 16043124 SCREW M8X14 MM
6 17089471 SPRING WASHER Ø16X8 MM SP=1,4 MM
7 15997521 SCREW
8 4955094 RUBBER PAD
9 12164511 HEXAGON NUT M24X2
10 17093171 WASHER Ø24X46X5,4 MM
11 17090174 SPRING WASHER Ø10X20 MM
12 16607824 HEXAGON BOLT M10X35 MM (8.8)
