GE8281SRM44.10A62E

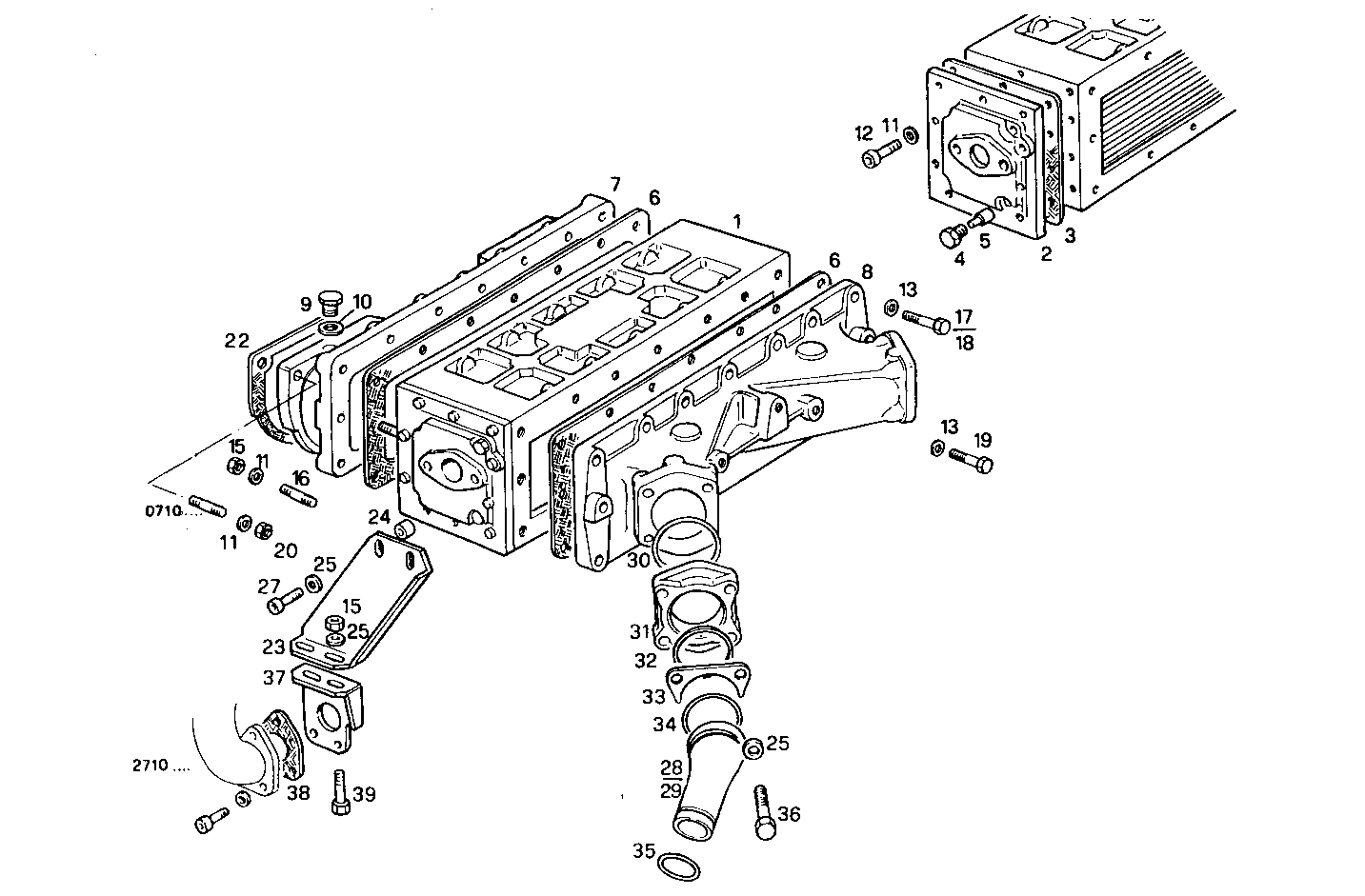

2460.006 AIR - WATER HEAT EXCHANGER

Iveco/FPT AIR - WATER HEAT EXCHANGER

Item Part number Description
1 8022764 AIR/WATER HEAT EXCHANGER ASSY
2 8113017 HEAT EXCHANG.COVER
3 8112975 GASKET
4 8109742 PLUG M12
5 8109743 SACRIFICAL ANODE Ø9,5 MM
6 8008906 GASKET
7 8105947 AIR HOOD
8 8016672 AIR HOOD
9 10304911 THREADED PLUG M20X1,5
10 98429280 SEAL GASKET Ø20X26 MM SP=1,5 MM
11 17095104 WASHER Ø10X21X2 MM
12 11306921 SCREW M10X1,25X30
13 17094914 WASHER 8x16
15 17037931 HEXAGON NUT M8X1,25
16 16729324 STUD M8X12X20 MM
17 16605624 HEXAGON BOLT M8X25 MM (8.8)
18 16606024 SCREW M8X45 MM
19 16605734 HEXAGON BOLT M8X30 MM
20 17038221 HEXAGON NUT M10
22 4786886 GASKET
23 8112533 RETAINER
24 8109399 SPACING BAR
25 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
27 16691024 CYLIND-HEAD SCREW M8X45 MM
28 8106025 AIR PIPE/DUCT RIGHT
29 8106026 AIR PIPE/DUCT LEFT
30 17291281 O-RING Ø94,84 MM SP=3,53 MM
31 8105950 FLANGE
32 8105951 CIRCLIP
33 8105952 PLATE
34 14465381 O-RING SP=3,53 MM
35 14464881 WASHER
36 16044021 HEXAGON BOLT M8X1,25X40 MM
37 8112532 RETAINER
38 4863490 FLAT ENGINE GASKET
39 16605524 HEXAGON BOLT M8X20 MM
