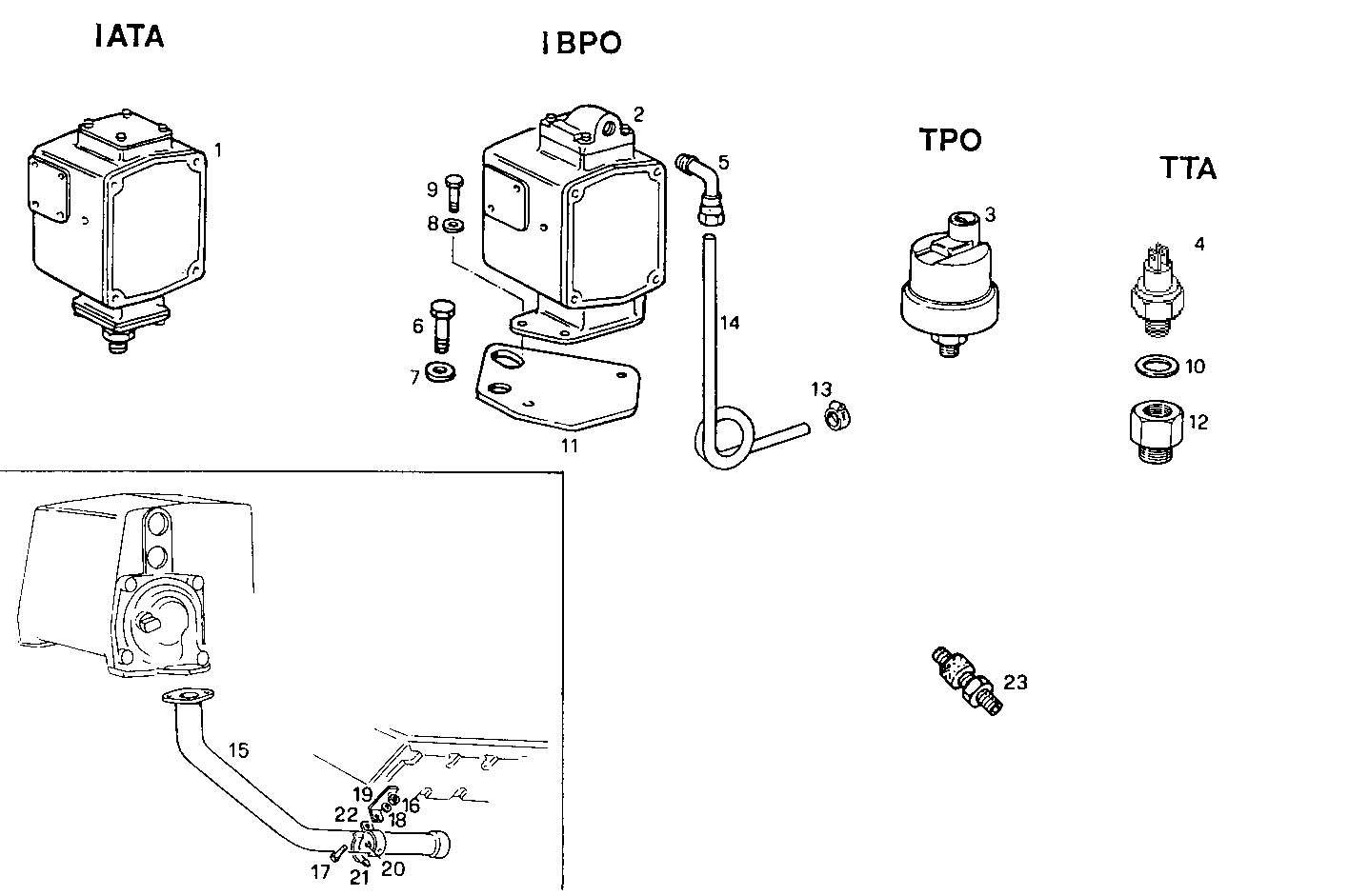

| Item |
Part number |
Description |
|
1 |
8110742 |
TRANSMITTER |
|
2 |
8111452 |
TRANSMITTER |
|
3 |
8100417 |
TRANSMITTER TPO |
|
4 |
8100418 |
TRANSMITTER TTA |
|
5 |
8111261 |
PIPE SOCKET Ø1/8'' MM |
|
6 |
15540221 |
HEXAGON BOLT M12X1,25X20 MM |
|
7 |
11190779 |
SPRING WASHER Ø12X24 SP=2,8 MM |
|
8 |
11197779 |
SPRING WASHER Ø6X12 MM |
|
9 |
10979421 |
HEXAGON BOLT M6X10 MM |
|
10 |
10282460 |
SEAL GASKET Ø14X20 MM |
|
11 |
8111263 |
RETAINER |
|
12 |
4928330 |
PIPE SOCKET M16X1,5/M14X1,5 |
|
13 |
4656139 |
FASTENING BRACKET |
|
14 |
8111262 |
OIL LINE |
|
15 |
8112442 |
WATER PIPE |
|
16 |
17037931 |
HEXAGON NUT M8X1,25 |
|
17 |
16043421 |
HEXAGON BOLT M8X20 MM |
|
18 |
11193879 |
SPRING WASHER Ø8X16 MM |
|
19 |
8113297 |
RETAINER |
|
20 |
1366290 |
RUBBER LUG |
|
21 |
8113295 |
CLAMP Ø50 MM |
|
22 |
8113296 |
CLAMP Ø50 MM |
|
23 |
4933865 |
TRANSMITTER |
