GE8281SRM44.30A60E

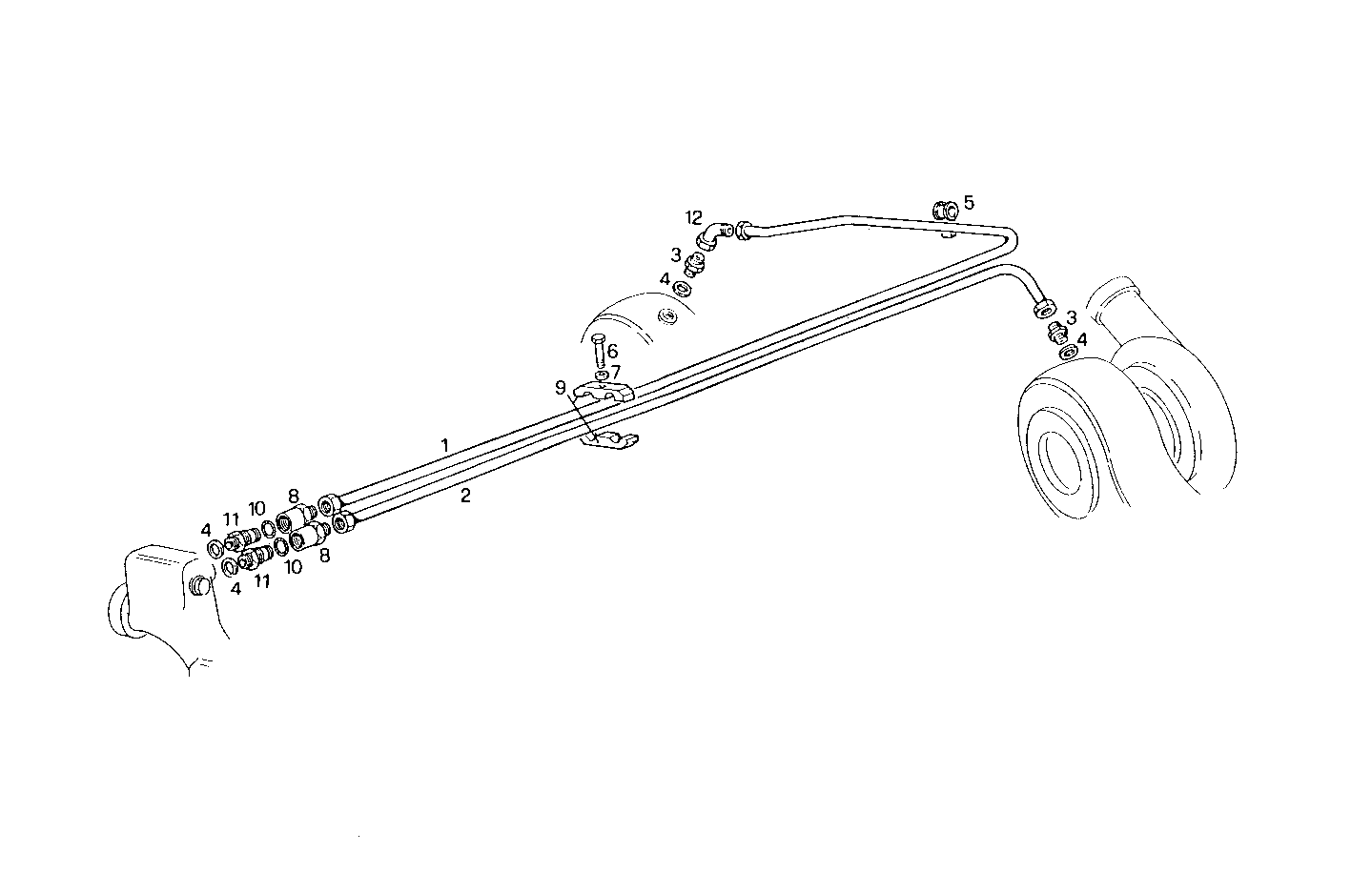

3210.067/04 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8008218 | WATER PIPE [from 04-90] |
| 2 | 8008217 | WATER PIPE [from 04-90] |
| 3 | 8110943 | PIPE SOCKET M30X1,5/M25X1,5 |
| 4 | 98429282 | SEAL GASKET Ø26X33 MM SP=1,5 MM |
| 5 | 8111710 | CLIP |
| 6 | 16043621 | HEXAGON BOLT M8X25 MM |
| 7 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 8 | 8007521 | PIPE SOCKET |
| 9 | 8008215 | CLAMP |
| 10 | 17282181 | O-RING Ø21,8 MM SP=2,6 MM |
| 11 | 8007520 | PIPE SOCKET |
| 12 | 8111254 | PIPE SOCKET |
