GE8281SRM44.30A60E

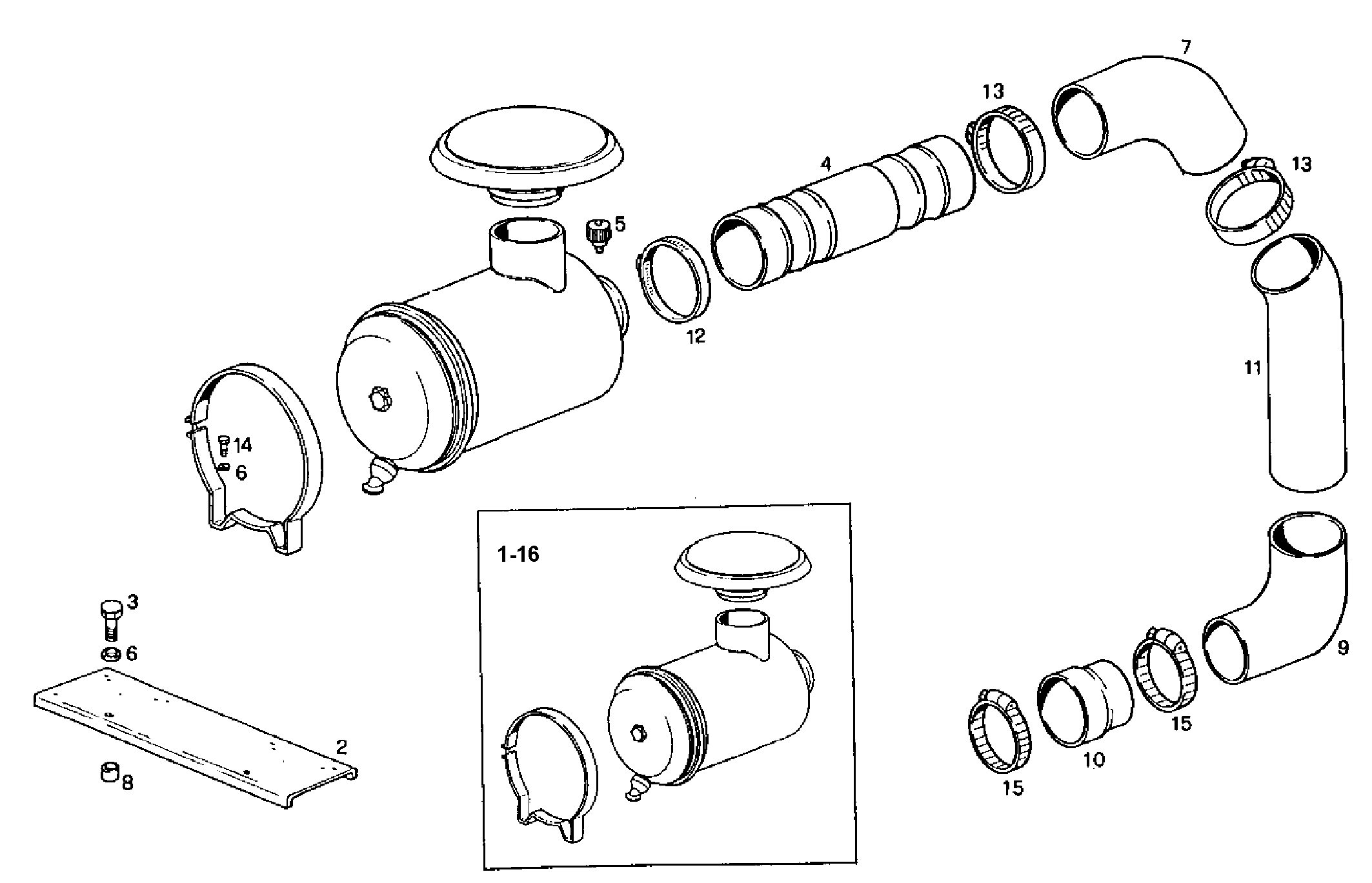

A21210049/01 DRY AIR CLEANER - with mechanical clogging gauge - genset
| Item | Part number | Description |
|---|---|---|
| 1 | 8016975 | AIR CLEANER ASSY |
| 2 | 8019389 | SUPPORT |
| 3 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 4 | 8018132 | FILTER HOSE |
| 5 | 8027294 | CHOCKED FILTER INDIC. MECHANICAL |
| 6 | 17090174 | SPRING WASHER Ø10X20 MM |
| 7 | 8020234 | AIR PIPE/DUCT |
| 8 | 8005194 | SPACING BAR |
| 9 | 8109999 | INTAKE ELBOW |
| 10 | 8111448 | CONNECTOR SLEEVE |
| 11 | 8020230 | FILTER HOSE |
| 12 | 17764993 | CLIP Ø50/70 MM |
| 13 | 17765493 | CLIP Ø70/90 MM |
| 14 | 16607624 | SCREW M10X25 |
| 15 | 17765293 | CLIP |
| 16 | 8034705 | AIR CLEANER ASSY |
