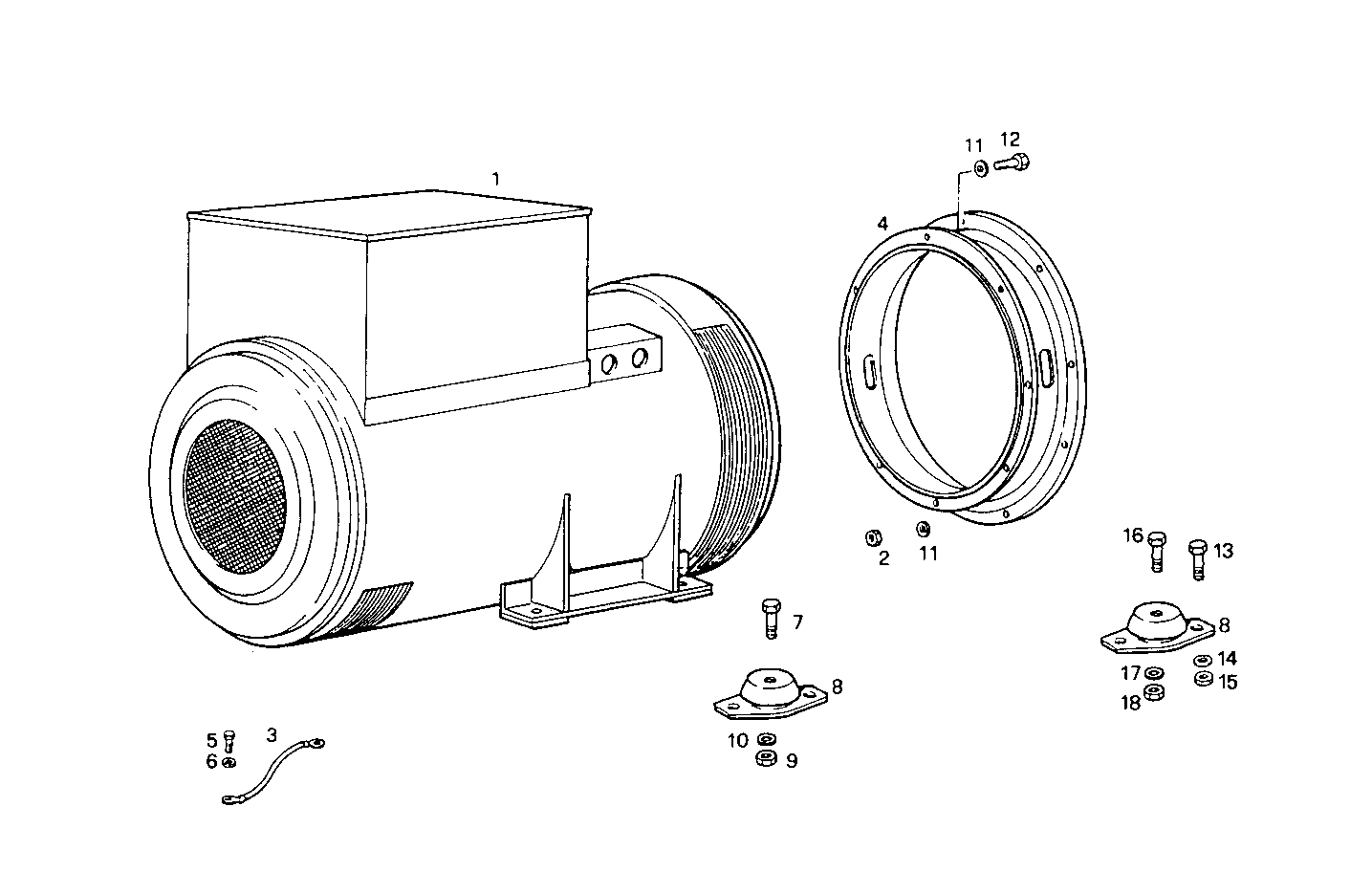

| Item |
Part number |
Description |
|
1 |
8008394 |
ELECTRIC MACHINE |
|
2 |
17038221 |
HEXAGON NUT M10 |
|
3 |
8104707 |
WIRE/CABLE |
|
4 |
4928053 |
COUPLING BELL |
|
5 |
16043124 |
SCREW M8X14 MM |
|
6 |
17089474 |
SPRING WASHER �8X16 MM SP=1,4 MM |
|
7 |
15997521 |
SCREW |
|
8 |
4955094 |
RUBBER PAD |
|
9 |
12164511 |
HEXAGON NUT M24X2 |
|
10 |
11200679 |
SPRING WASHER �24,5 MM |
|
11 |
17090174 |
SPRING WASHER �10X20 MM |
|
12 |
16607824 |
HEXAGON BOLT M10X35 MM (8.8) |
|
13 |
16614624 |
HEXAGON BOLT M16X40 MM |
|
14 |
17092374 |
SPRING WASHER �16X34X3,6 MM |
|
15 |
17038921 |
NUT M16X2 |
|
16 |
16620124 |
SCREW M24X3X80 |
|
17 |
17093174 |
WASHER �24X46X5,4 MM |
|
18 |
17039721 |
HEXAGON NUT M24 |
