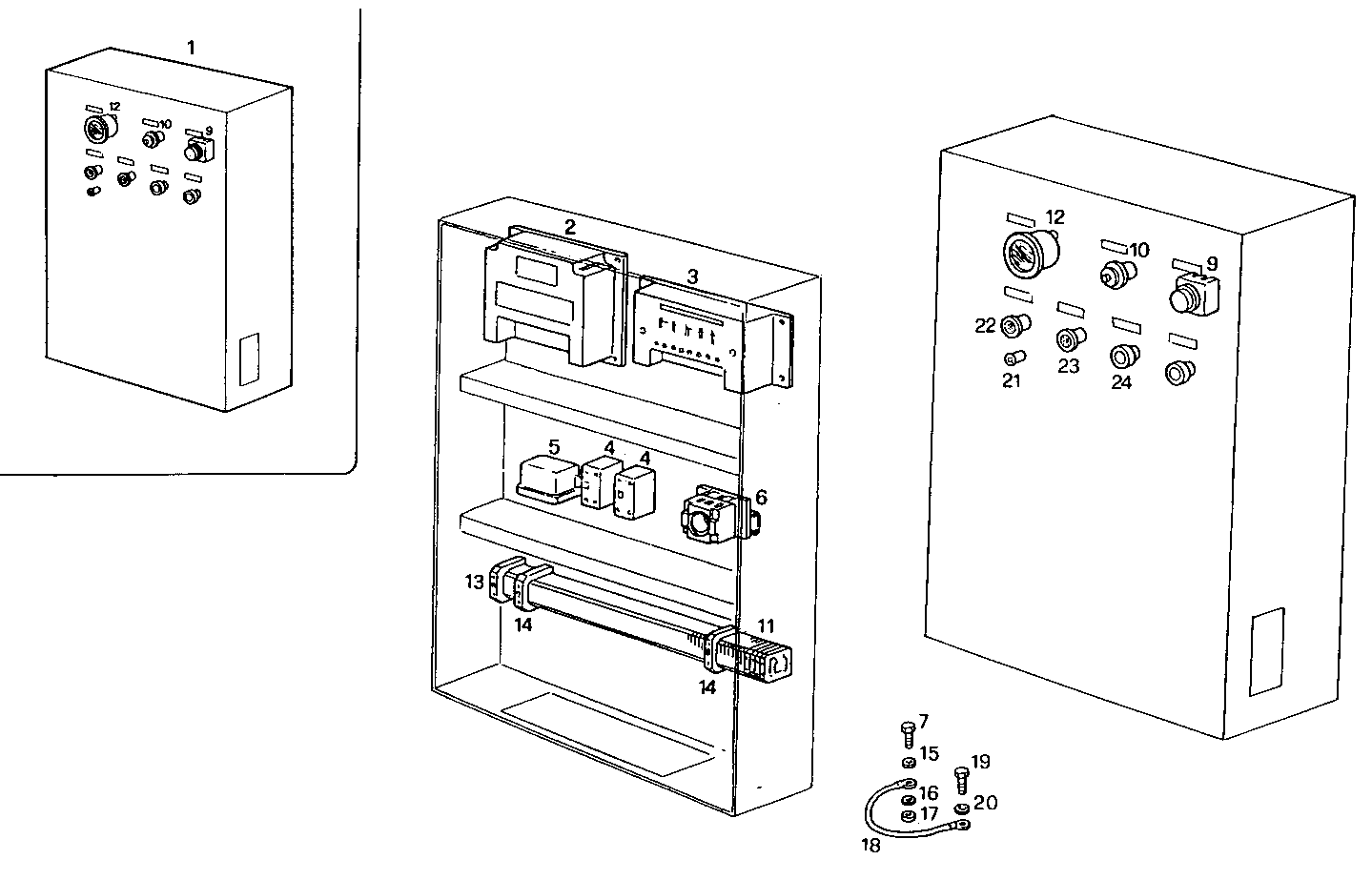

| Item |
Part number |
Description |
|
1 |
8023583 |
CONTROL BOARD ASSY ASSY |
|
2 |
8022929 |
SPEED CONTROL |
|
3 |
8104389 |
SWITCHGEAR |
|
4 |
8023505 |
RELAY |
|
5 |
8108575 |
RELAY STARTER [up to 12-90] |
|
6 |
8102662 |
RELAY SPRECHER |
|
7 |
16605924 |
SCREW M8X40 MM |
|
8 |
8100693 |
CHOCK |
|
9 |
8023506 |
SWITCH |
|
10 |
8110378 |
POTENTIOMETER |
|
11 |
8022348 |
CLAMP CBD 4 |
|
12 |
8102399 |
HOURMETER |
|
13 |
8023507 |
CLAMP CBD 10 |
|
14 |
8023508 |
CLAMP |
|
15 |
17094914 |
WASHER 8x16 |
|
16 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
17 |
17016214 |
SPACING BAR |
|
18 |
8110852 |
EARTH WIRE |
|
19 |
16607724 |
HEXAGON BOLT M10X1,5X30 MM (8.8) |
|
20 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
21 |
8022006 |
LUMINOUS INDICATOR |
|
22 |
8022005 |
PIN |
|
23 |
8023510 |
PUSH BUTTON |
|
24 |
8012651 |
PUSH BUTTON |
