GE8291SRG75.10A80S

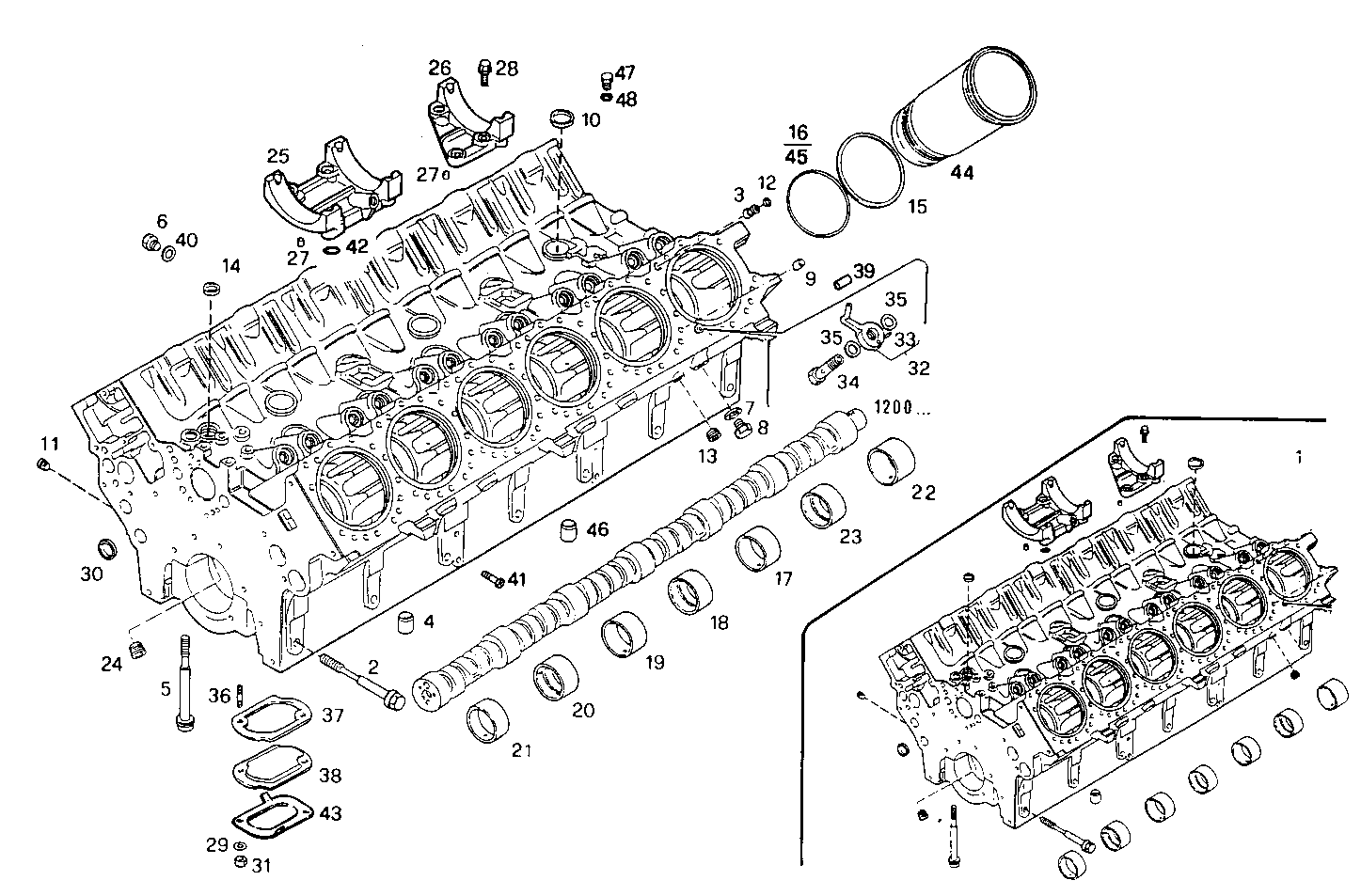

0400.046 CRANKCASE

Iveco/FPT CRANKCASE

Item Part number Description
1 8012830 CRANKCASE ASSY
2 4818507 HEXAGON BOLT M16
3 4671990 DOWEL PIN
4 17275410 DOWEL PIN Ø8 MM
5 8040440 CRAHKSFT.BEAR.STUD
6 16992411 THREADED PLUG M16X1,5
7 98429280 SEAL GASKET Ø20X26 MM SP=1,5 MM
8 10304911 THREADED PLUG M20X1,5
9 17275610 DOWEL PIN
10 16991370 LOCK PLUG Ø45 MM
11 16997811 PLUG M24X1,5
12 17277981 O-RING 1,78x9,25
13 16997411 THREADED PLUG M16X1,5
14 16991190 PLUG
15 4686958 FLAT ENGINE GASKET TOP
16 99448045 O-RING
17 4719557 BUSH
18 4677736 CAMSHAFT BEARING MIDDLE
19 4699804 CAMSHAFT BEARING MIDDLE REAR
20 4699803 CAMSHAFT BEARING FRONT MIDDLE
21 4750565 CAMSHAFT BEARING FRONT
22 4719556 BUSH
23 4718709 BUSH
24 16997311 PLUG M14X1,5
25 4882562 SUPPORT
26 4882248 SUPPORT
28 4686762 HEXAGON BOLT M10X1,25X30
29 12625201 WASHER Ø8X21X1,5 MM
30 4720130 CENTERING RING
31 17157021 NUT M8X1,25
32 4810581 OIL NOZZLE ASSY
33 10837210 DOWEL PIN Ø3 MM
34 4693650 SCREW CONNECTOR
35 4700613 GASKET
36 16729224 STUD M8X16 MM
37 4863514 FLAT ENGINE GASKET
38 8026012 COVER
39 10838010 DOWEL PIN Ø16 MM
40 4858609 WASHER Ø16X22 MM SP=1,5 MM
41 4882461 PIPE SOCKET
42 17281581 O-RING Ø12,37X2,62 MM
43 8018247 PLATE
44 4787299 CYLINDER LINER
45 99443709 O-RING
46 4687606 DOWEL PIN
47 11903111 LOCK PLUG M10X1,25
48 4858606 GASKET Ø10X14X1 MM
