GE8291SRG75.10A80S

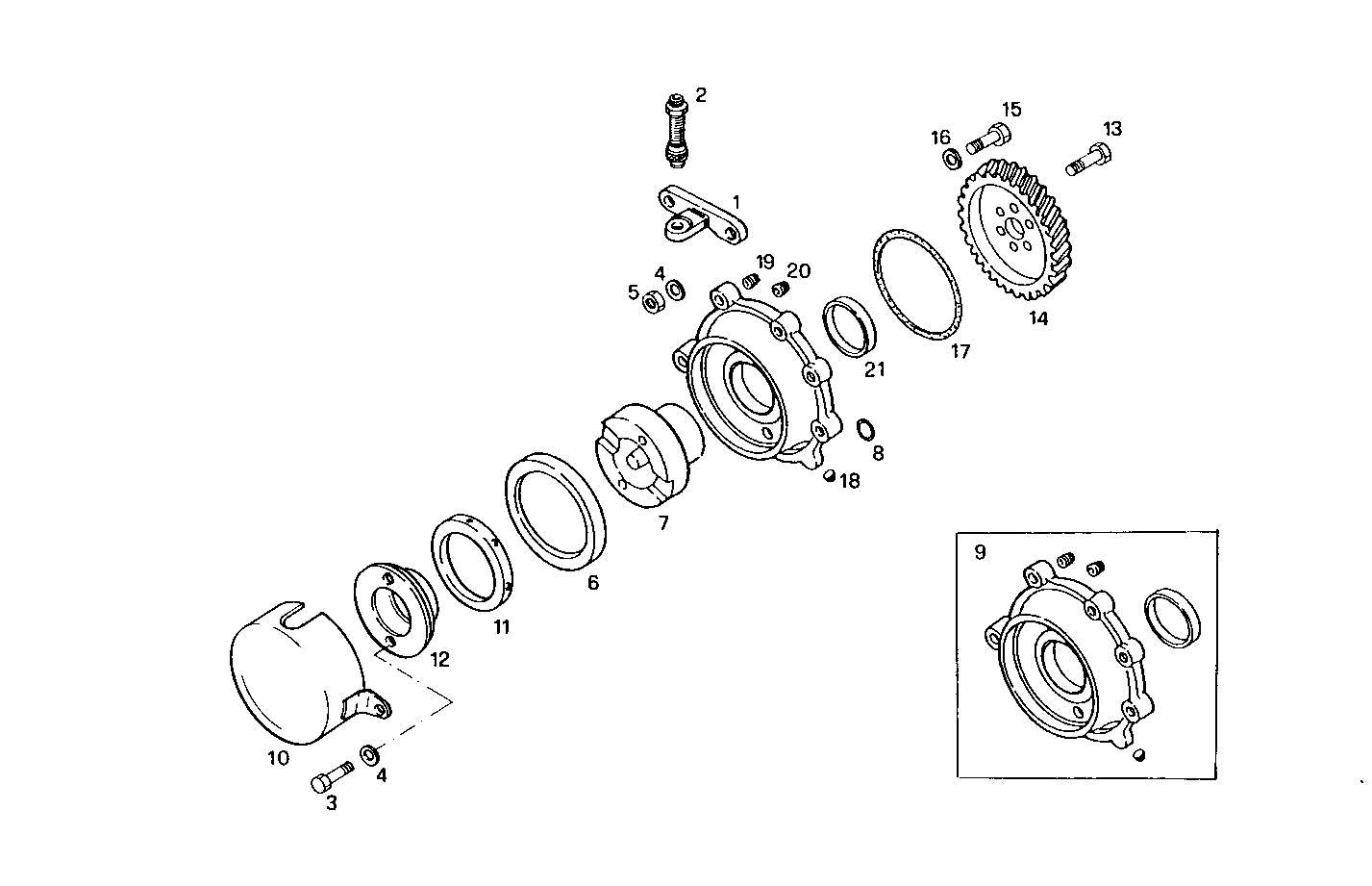

2820.000 IGNITION CONTROL

Iveco/FPT IGNITION CONTROL

Item Part number Description
1 8019833 SUPPORT
2 8017838 PICK-UP
3 11306921 SCREW M10X1,25X30
4 17090174 SPRING WASHER Ø10X20 MM
5 12164711 HEXAGON NUT M10X1,25
6 40101453 SHAFT SEAL Ø108X135 MM SP=15
7 8013125 SHAFT
8 17281481 O-RING Ø10,7 MM SP=2,6 MM
9 4861995 SUPPORT ASSY
10 8019831 COVER
11 8027869 IGNITION CONTROL DISC
12 8019830 STOP WASHER
13 17455134 HEXAGON BOLT M8X25
14 4817393 GEAR
15 16605624 HEXAGON BOLT M8X25 MM (8.8)
16 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
17 17293381 O-RING Ø171,00X3,53 MM
18 10269150 LOCK PLUG M6X1
19 13582371 THREADED INSERT M10X1,25
20 13582271 THREADED INSERT M8
21 4861349 BUSH
