GE8291SRG75.10A80S

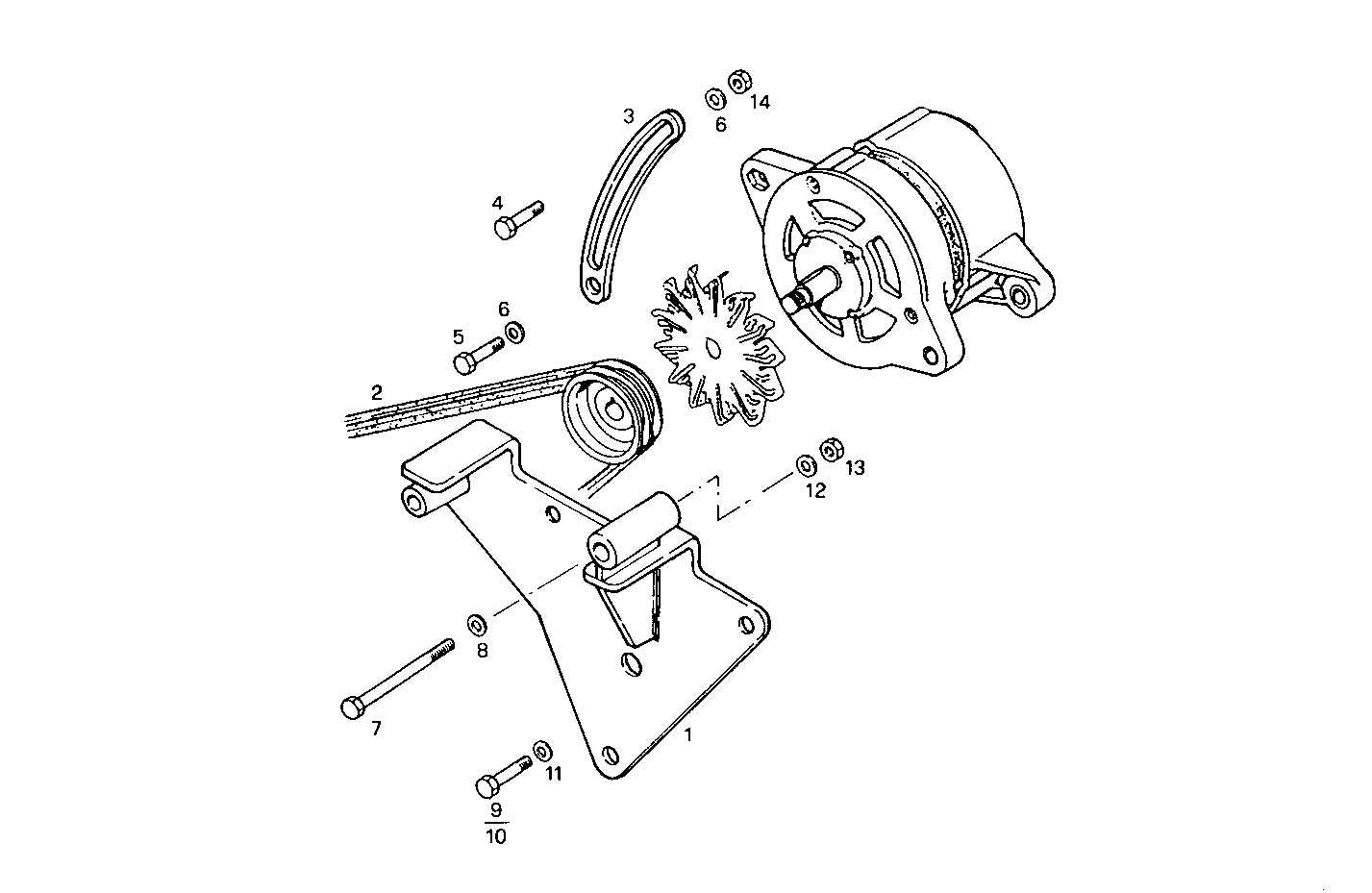

4010.090 MOUNT
| Item | Part number | Description |
|---|---|---|
| 1 | 8025858 | SUPPORT |
| 2 | 98473924 | V-BELT KIT |
| 3 | 4799775 | BRACE/STRUT |
| 4 | 16607924 | HEXAGON BOLT M10X1,5X40 MM |
| 5 | 16607724 | HEXAGON BOLT M10X1,5X30 MM (8.8) |
| 6 | 17090074 | SPRING WASHER Ø10X20X1,9 MM |
| 7 | 16607224 | SCREW |
| 8 | 17095204 | WASHER Ø12X20 MM |
| 9 | 16607624 | SCREW M10X25 |
| 10 | 16608224 | SCREW M10X1,5X55 MM |
| 11 | 17090174 | SPRING WASHER Ø10X20 MM |
| 12 | 17091074 | WASHER Ø12X24X2,8 MM |
| 13 | 17038421 | HEXAGON NUT M12 (8) |
| 14 | 17038121 | HEXAGON NUT M10 |
