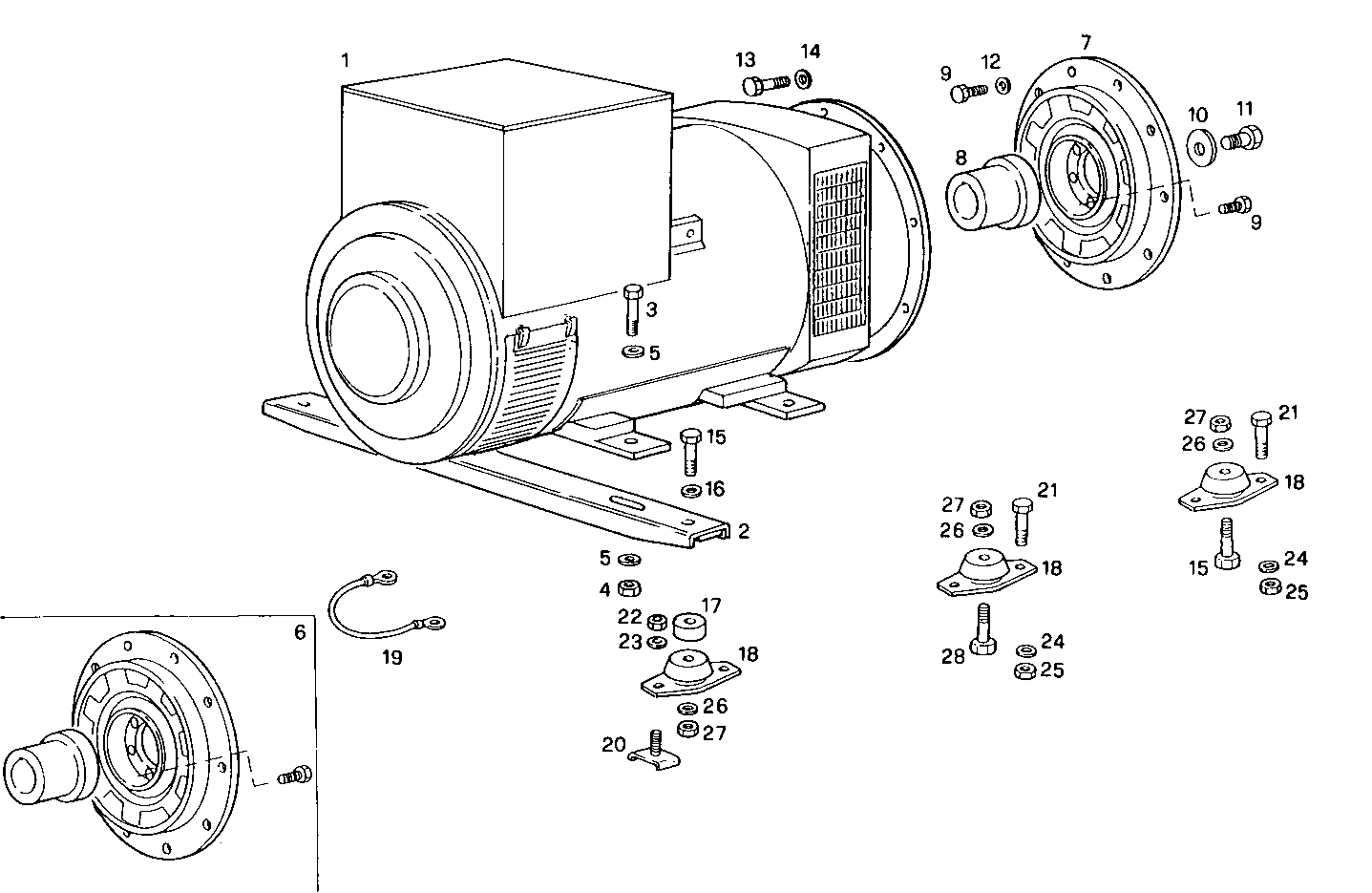

| Item |
Part number |
Description |
|
1 |
8028784 |
ELECTRIC MACHINE HC 5342/D |
|
2 |
8016859 |
SUPPORT |
|
3 |
16620624 |
SCREW M24X130 |
|
4 |
17039721 |
HEXAGON NUT M24 |
|
5 |
17093174 |
WASHER Ø24X46X5,4 MM |
|
6 |
8022126 |
FLEXIBLE COUPLING ASSY |
|
7 |
8014277 |
FLEXIBLE COUPLING |
|
8 |
8022127 |
HUB |
|
9 |
17462134 |
SCREW |
|
10 |
8022136 |
WASHER |
|
11 |
16619624 |
SCREW M24x3x50 MM |
|
12 |
17095604 |
WASHER Ø16X28 MM |
|
13 |
16610124 |
HEXAGON BOLT M12X40 MM |
|
14 |
17091074 |
WASHER Ø12X24X2,8 MM |
|
15 |
16620124 |
SCREW M24X3X80 |
|
16 |
8016962 |
WASHER |
|
17 |
8022659 |
SPACING BAR |
|
18 |
4955094 |
RUBBER PAD |
|
19 |
8110856 |
EARTH WIRE |
|
20 |
8015168 |
SCREW |
|
21 |
16614624 |
HEXAGON BOLT M16X40 MM |
|
22 |
17038721 |
NUT M14X2 [from ...] |
|
23 |
17091974 |
SPRING WASHER Ø14X32 MM SP=3,4 MM |
|
24 |
17092374 |
SPRING WASHER Ø16X34X3,6 MM |
|
25 |
17038921 |
NUT M16X2 |
|
27 |
17037931 |
HEXAGON NUT M8X1,25 |
|
28 |
8015074 |
SCREW |
