GE8291SRG75.10A80S

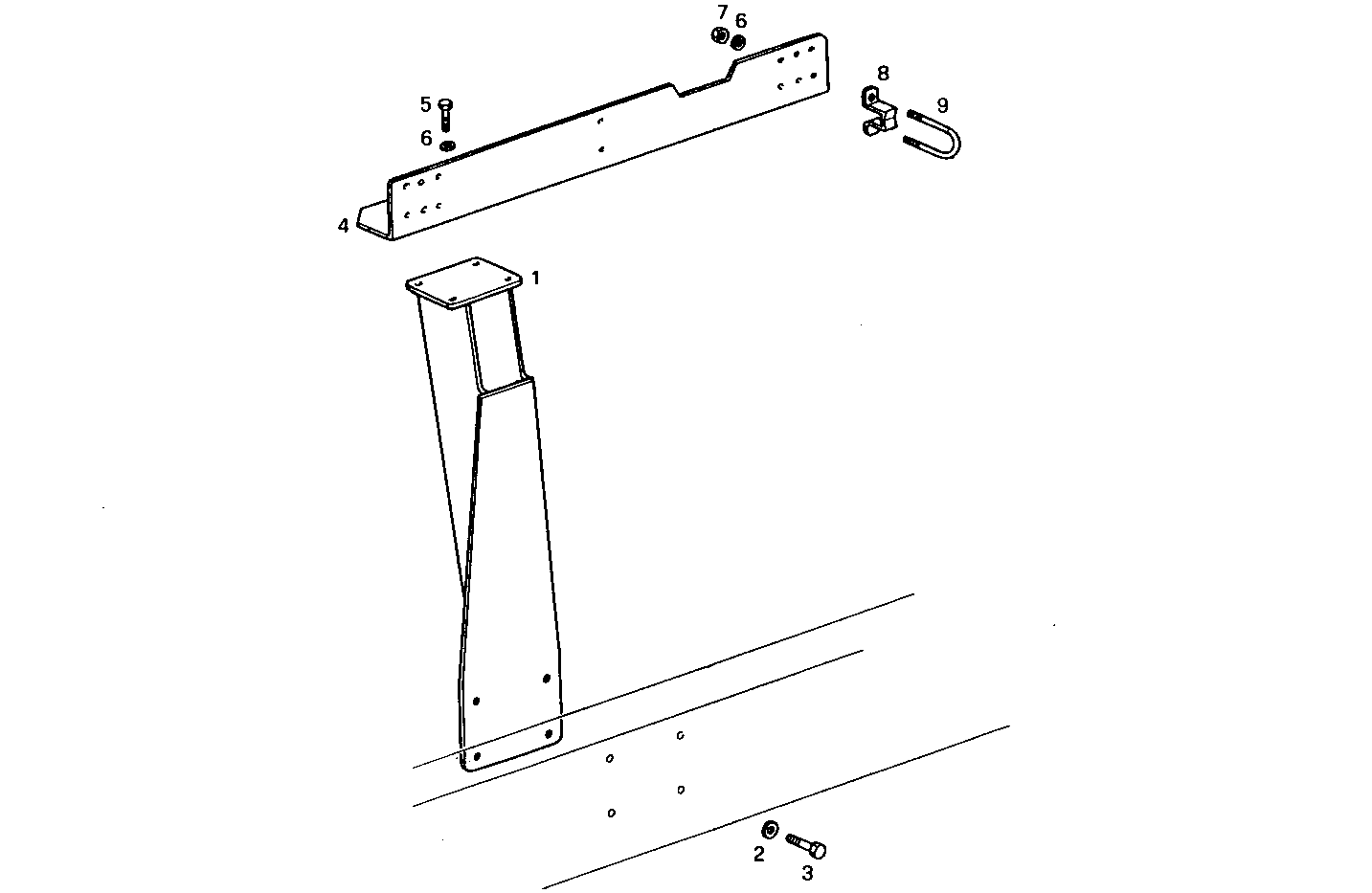

A85010001/02 GAS CONTROL TRAIN
| Item | Part number | Description |
|---|---|---|
| 1 | 8023480 | RETAINER |
| 2 | 17090974 | SPRING WASHER Ø12X24 MM |
| 3 | 16609824 | HEXAGON BOLT M12X1,75X25 MM |
| 4 | 8023479 | RETAINER |
| 5 | 16607524 | HEXAGON BOLT M10X1,5X20 MM (8.8) |
| 6 | 17090374 | WASHER |
| 7 | 17038121 | HEXAGON NUT M10 |
| 8 | 8023478 | YOKE |
| 9 | 8023656 | TIE ROD |
