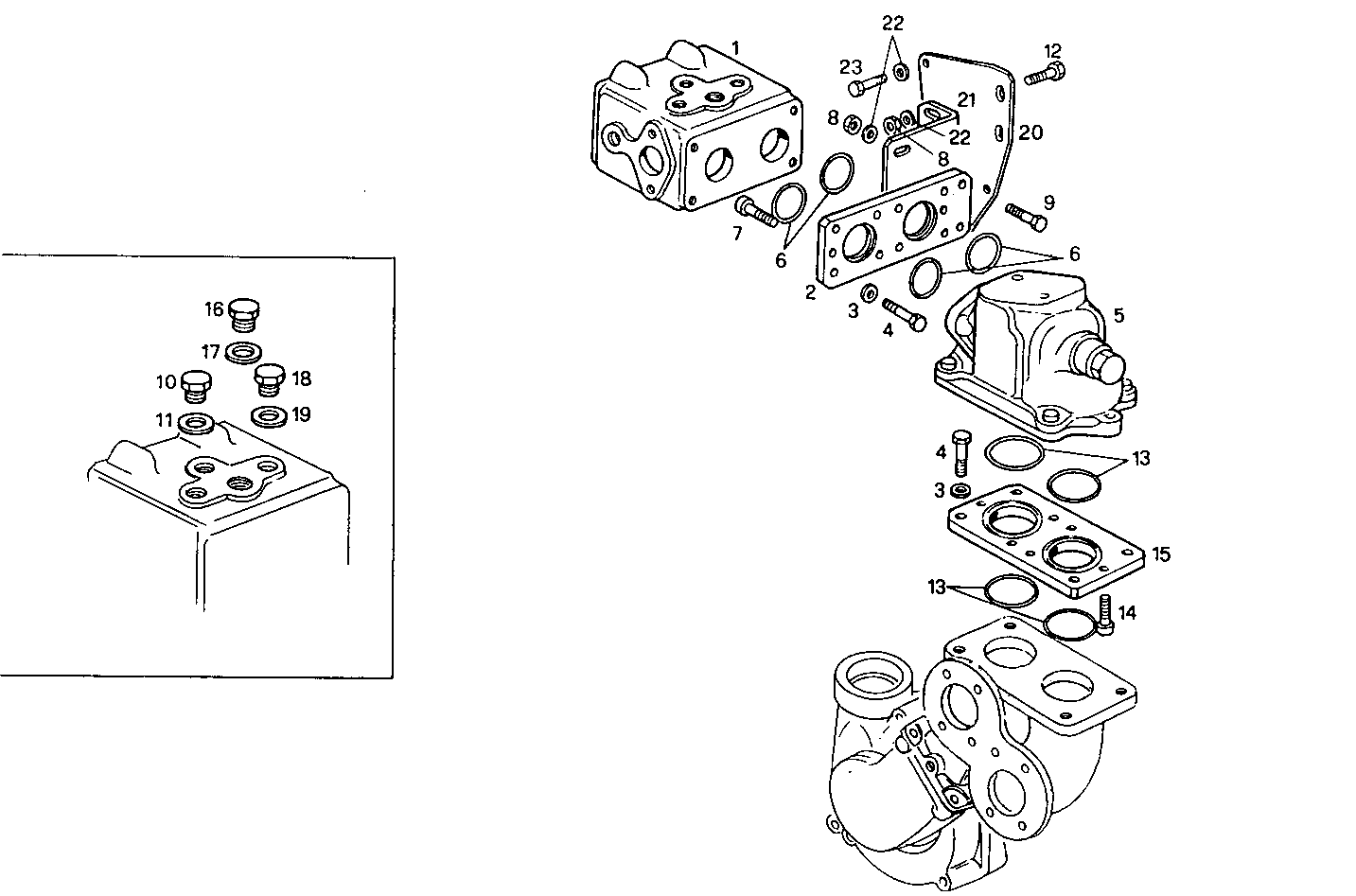

| Item |
Part number |
Description |
|
1 |
8013498 |
WATER CONVEYOR |
|
2 |
8017514 |
FLANGE |
|
3 |
17095104 |
WASHER Ø10X21X2 MM |
|
4 |
16607824 |
HEXAGON BOLT M10X35 MM (8.8) |
|
5 |
8006402 |
THERMOSTAT ASSY |
|
6 |
17283581 |
O-RING Ø44,12 MM SP=2,62 MM |
|
7 |
16690524 |
SCREW M8X20 MM (8.8) |
|
8 |
17038121 |
HEXAGON NUT M10 |
|
9 |
16607924 |
HEXAGON BOLT M10X1,5X40 MM |
|
10 |
4858394 |
PLUG |
|
11 |
11271460 |
GASKET Ø21X26X1,5 MM |
|
12 |
16607624 |
SCREW M10X25 |
|
13 |
17285181 |
O-RING Ø69,52 MM SP=2,62 MM |
|
14 |
14307321 |
SCREW |
|
15 |
8007161 |
FLANGE |
|
16 |
16992440 |
THREADED PLUG M16X1,5 |
|
17 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
18 |
16993440 |
PLUG M22X1,5 |
|
19 |
10263460 |
WASHER Ø22X28X1,5 MM |
|
20 |
8017512 |
PLATE |
|
21 |
8017513 |
RETAINER |
|
22 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
23 |
11306921 |
SCREW M10X1,25X30 |
