GE8291SRG85.10A80S

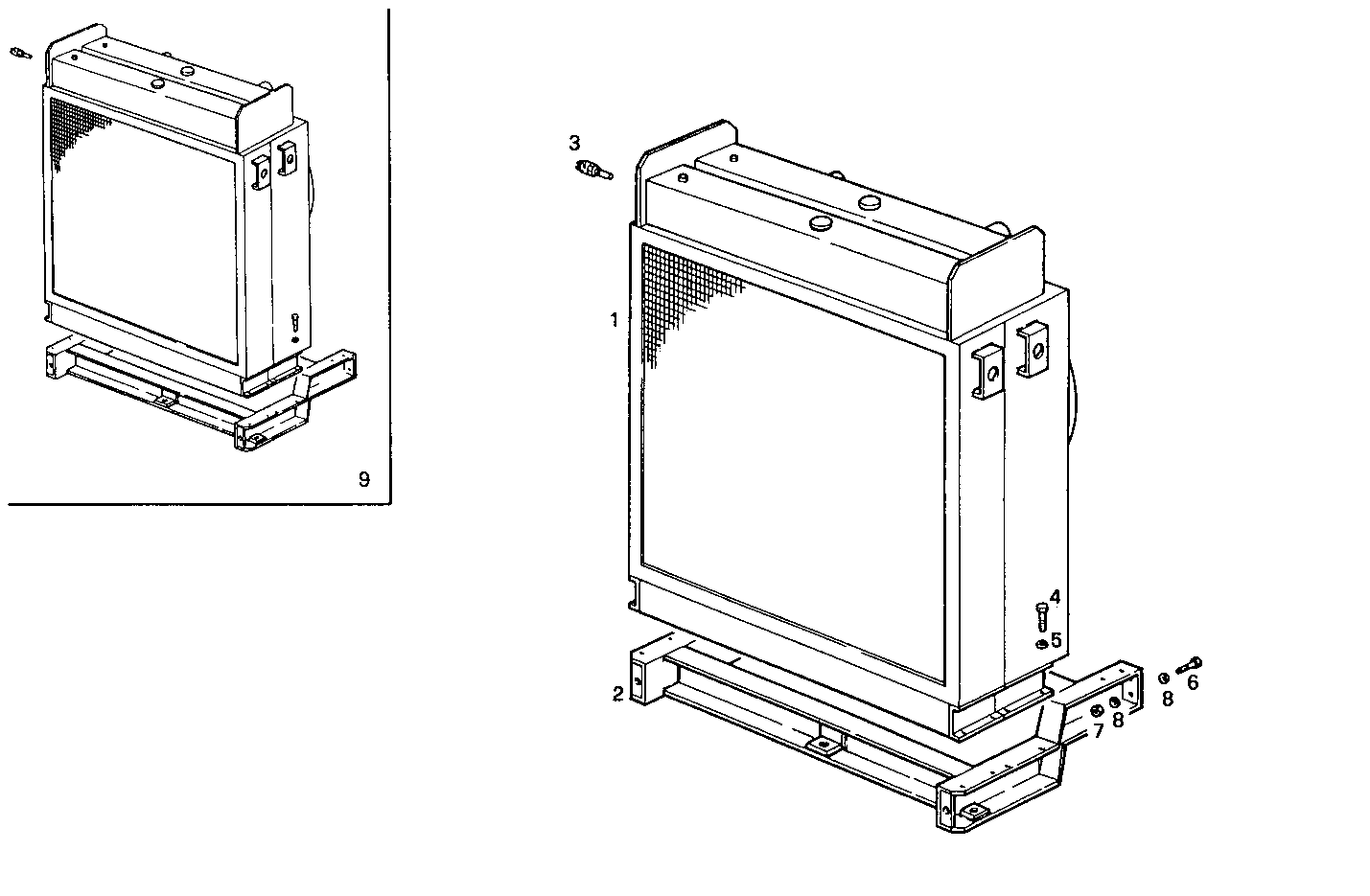

A22610001/01 RADIATOR 2 CIRCUITS AIR/WATER - loose
| Item | Part number | Description |
|---|---|---|
| 1 | 8018395 | WATER RADIATOR ASSY |
| 2 | 8019059 | SUPPORT |
| 3 | 8006054 | TRANSMITTER TBLA |
| 4 | 16609924 | HEXAGON BOLT M12X30 MM (8.8) |
| 5 | 17091374 | SPRING WASHER Ø12X30X3,0 MM |
| 6 | 16617224 | SCREW M20X50 |
| 7 | 17039321 | NUT M20X2,5 |
| 8 | 17092774 | WASHER Ø20X38X4,6 MM |
| 9 | 8019211 | WATER RADIATOR |
