GE8361SRi25.00A50L

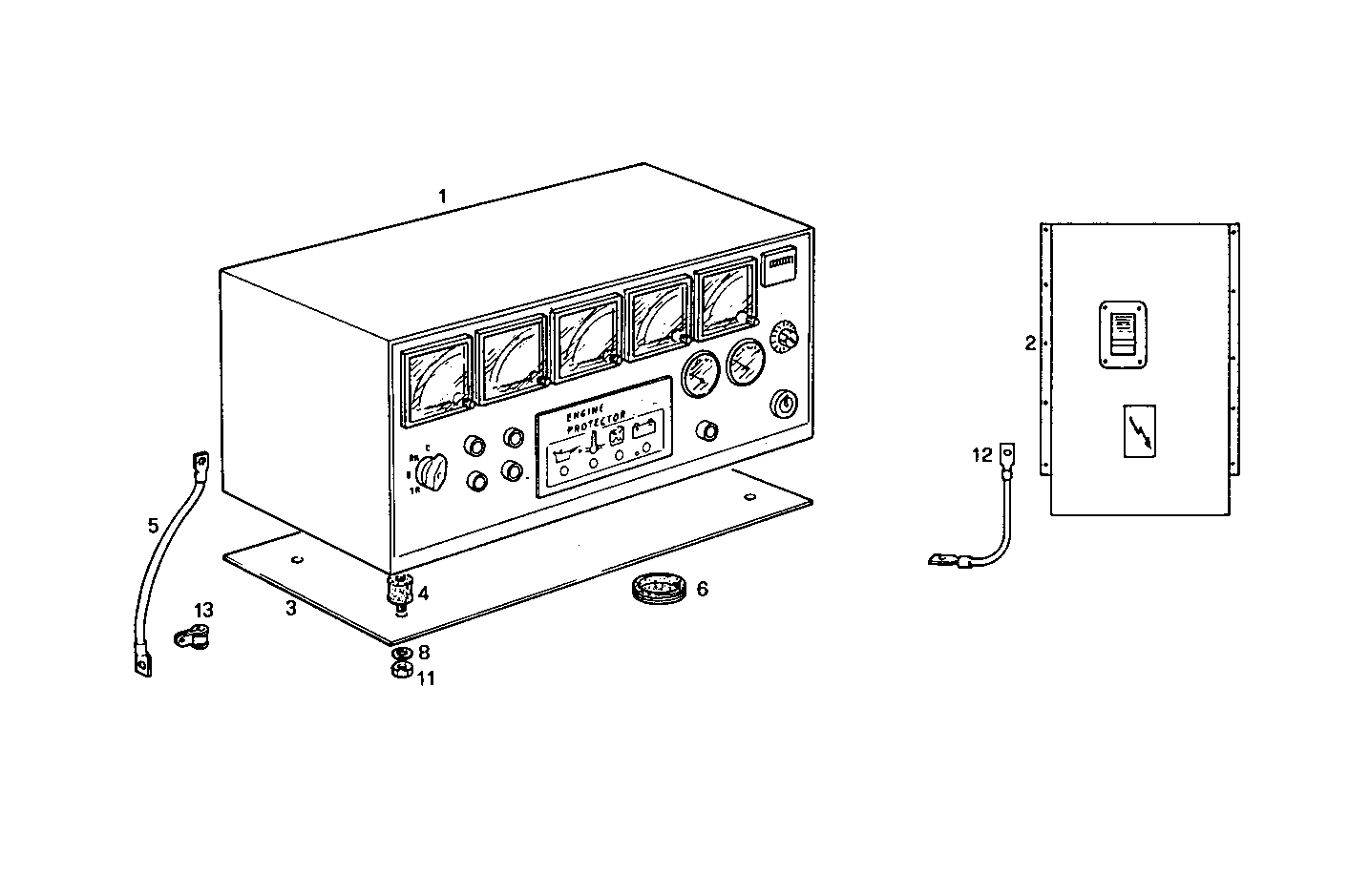

A60220006/01 MANUAL CONTROL BOARD FOR ELECT. MACHINE - LEROY
| Item | Part number | Description |
|---|---|---|
| 1 | 8009059 | CONTROL BOARD ASSY |
| 2 | 8110911 | DIFFERENTIAL SWITCH 250A |
| 3 | 8110934 | EL.MACHINE COVER |
| 4 | 8104155 | DOWEL |
| 5 | 8006993 | EARTH WIRE |
| 6 | 8113214 | INSULATING RING |
| 8 | 11197771 | SPRING WASHER Ø6X12 MM SP=1,2 MM |
| 11 | 15896211 | HEXAGON NUT M6 |
| 12 | 8104358 | EARTH WIRE |
| 13 | 10441290 | PIPE CLIP Ø10 MM |
