GE8361SRi25.00A52S

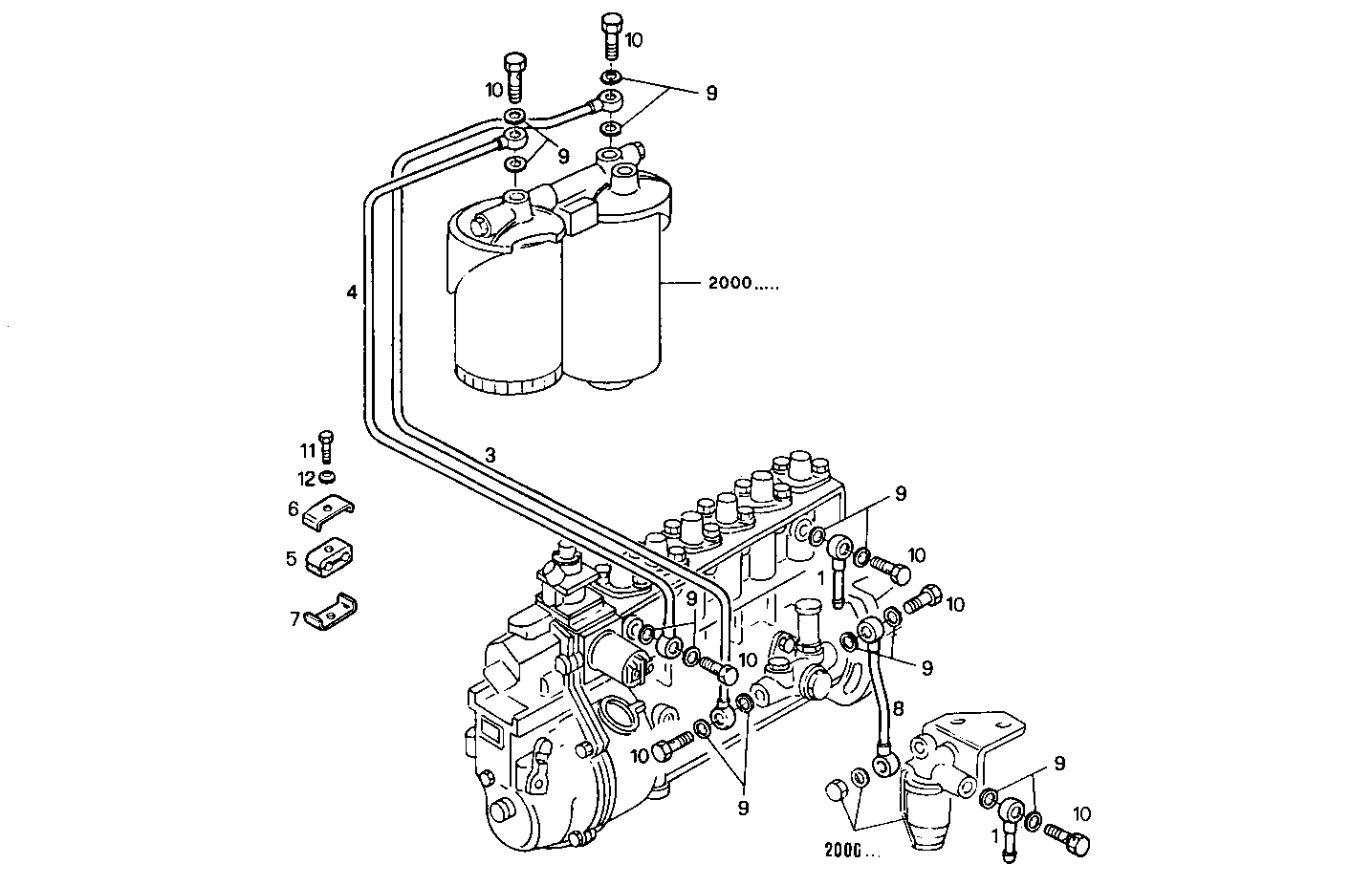

2030.024 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 98404882 | PIPE SOCKET Ø8 MM |
| 3 | 98429677 | FUEL LINE |
| 4 | 98429692 | FUEL LINE |
| 5 | 4871771 | RUBBER LUG |
| 6 | 4871773 | RETAINER ASSY |
| 7 | 4871774 | RETAINER ASSY |
| 8 | 8010748 | FUEL LINE |
| 9 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 10 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 11 | 16603824 | SCREW M6X25 |
| 12 | 17088474 | WASHER Ø6X12 MM |
