GE8361SRi25.00A52S

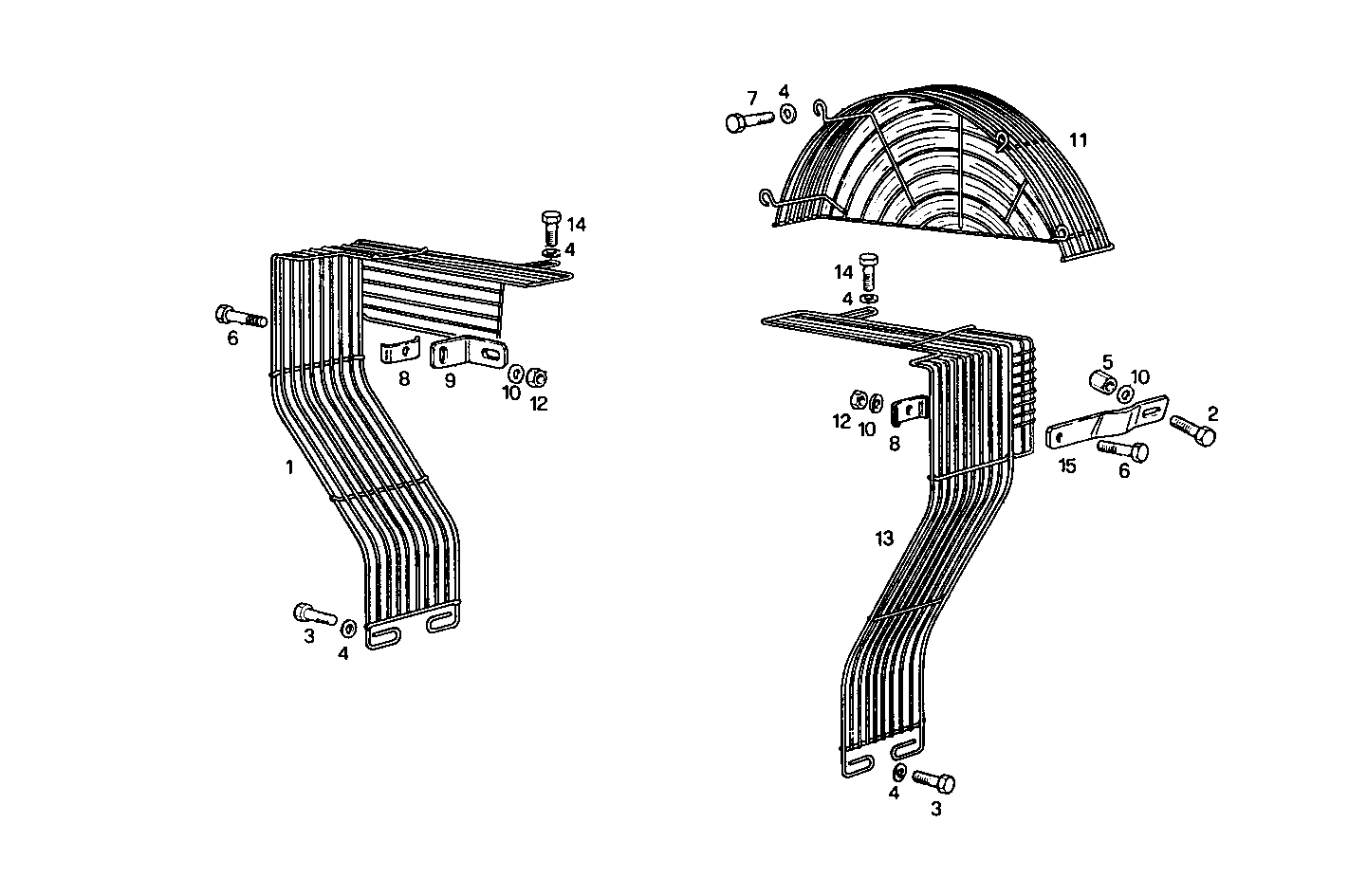

5770.003 SHIELDS
| Item | Part number | Description |
|---|---|---|
| 1 | 8108021 | PROTECTION |
| 2 | 4934617 | NUT |
| 3 | 16605524 | HEXAGON BOLT M8X20 MM |
| 4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 5 | 10979421 | HEXAGON BOLT M6X10 MM |
| 6 | 16602224 | HEXAGON BOLT M5X20 MM |
| 7 | 16043221 | HEXAGON BOLT M8X16 MM |
| 8 | 4641873 | RETAINER BOTTOM |
| 9 | 4935433 | RETAINER |
| 10 | 12624101 | WASHER Ø5X22X2MM |
| 11 | 4935430 | PROTECTION |
| 12 | 10725011 | NUT |
| 13 | 8108022 | PROTECTION |
| 14 | 15970521 | HEXAGON BOLT M10X20 MM |
| 15 | 4935432 | RETAINER |
