GE8361SRi25.00A52S

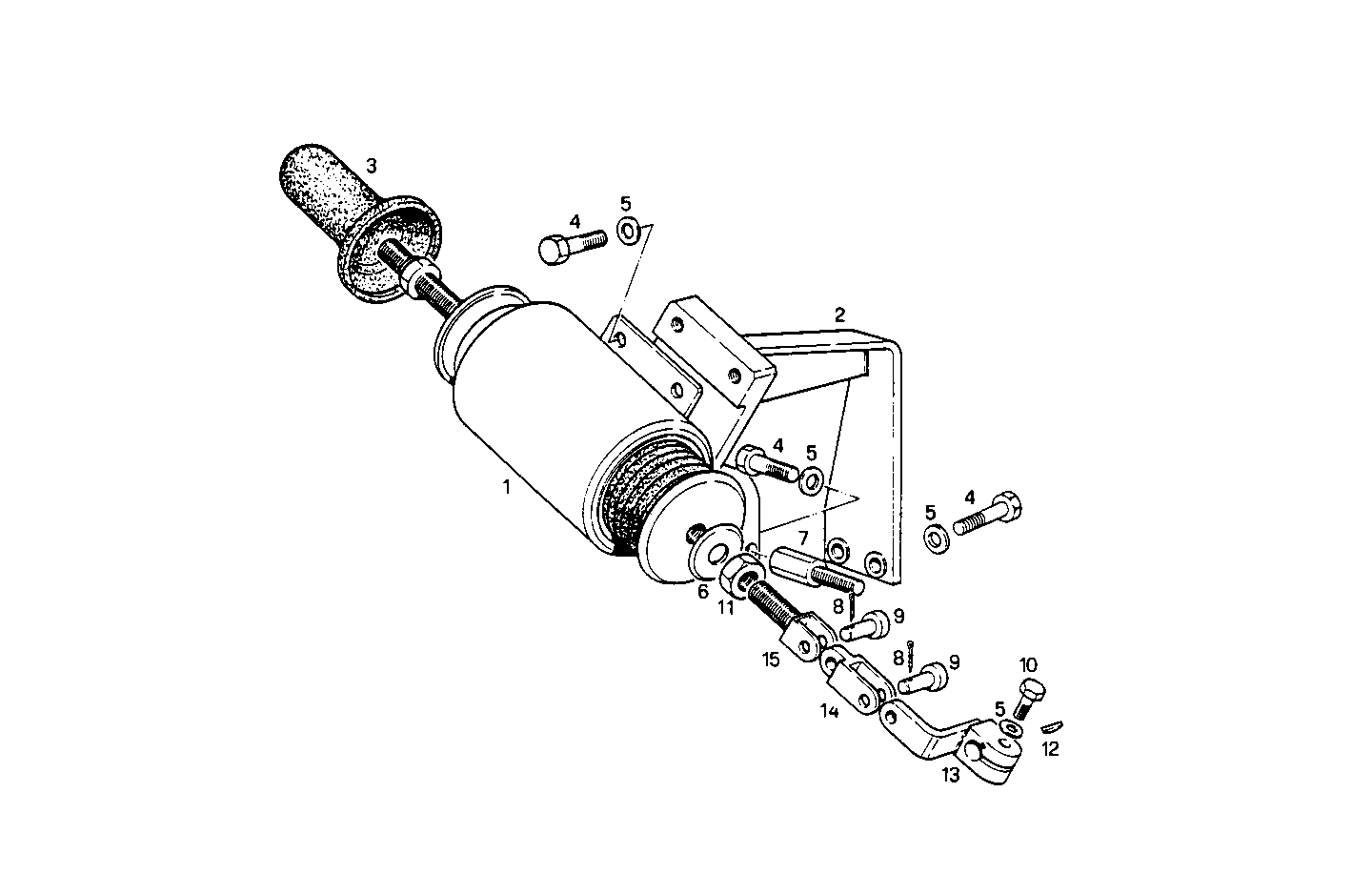

A38440004 STOP SOLENOID - ENERGIZE TO RUN - 24V
| Item | Part number | Description |
|---|---|---|
| 1 | 8112462 | SOLENOID ASSY |
| 2 | 8110754 | SUPPORT [up to 12-90] |
| 3 | 8111523 | PROTECTIVE HOOD |
| 4 | 10902221 | HEXAGON BOLT M6X16 MM |
| 5 | 17088474 | WASHER Ø6X12 MM |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 8110818 | SPACING BAR |
| 8 | 16852501 | SPLIT PIN Ø1,6X12 MM |
| 9 | 17718411 | PIN Ø5 MM |
| 10 | 10977721 | HEXAGON BOLT M5X14 MM |
| 11 | 17037931 | HEXAGON NUT M8X1,25 |
| 12 | 1136607 | KEY |
| 13 | 8110753 | LEVER |
| 14 | 8108833 | CLEVIS |
| 15 | 8110822 | CLEVIS |
