GE8361SRi25.00A52S

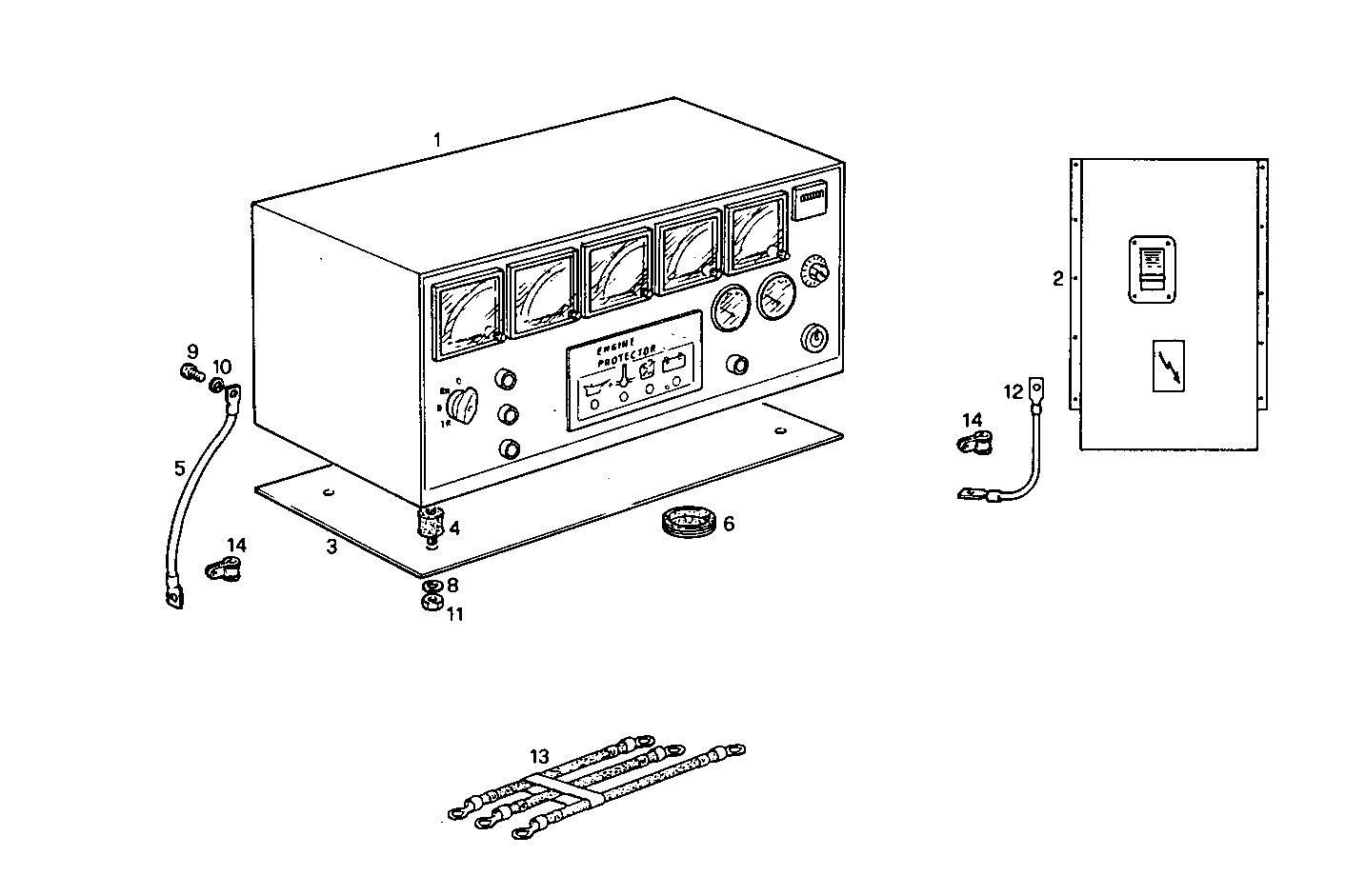

A60210009/01 MANUAL CONTROL BOARD FOR ELECT. MACHINE - STAMFORD
| Item | Part number | Description |
|---|---|---|
| 1 | 8009013 | CONTROL BOARD ASSY 380V 50-60HZ [from ...] |
| 2 | 8110788 | DIFFERENTIAL SWITCH 500A |
| 3 | 8110933 | COVER |
| 4 | 8104155 | DOWEL |
| 5 | 8111019 | EARTH WIRE |
| 6 | 8113214 | INSULATING RING |
| 8 | 11197771 | SPRING WASHER Ø6X12 MM SP=1,2 MM |
| 9 | 16043124 | SCREW M8X14 MM |
| 10 | 11193871 | WASHER Ø8X16X1,4 MM |
| 11 | 15896211 | HEXAGON NUT M6 |
| 12 | 8104707 | WIRE/CABLE |
| 13 | 8006430 | ENGINE HARNESS |
| 14 | 10441290 | PIPE CLIP Ø10 MM |
