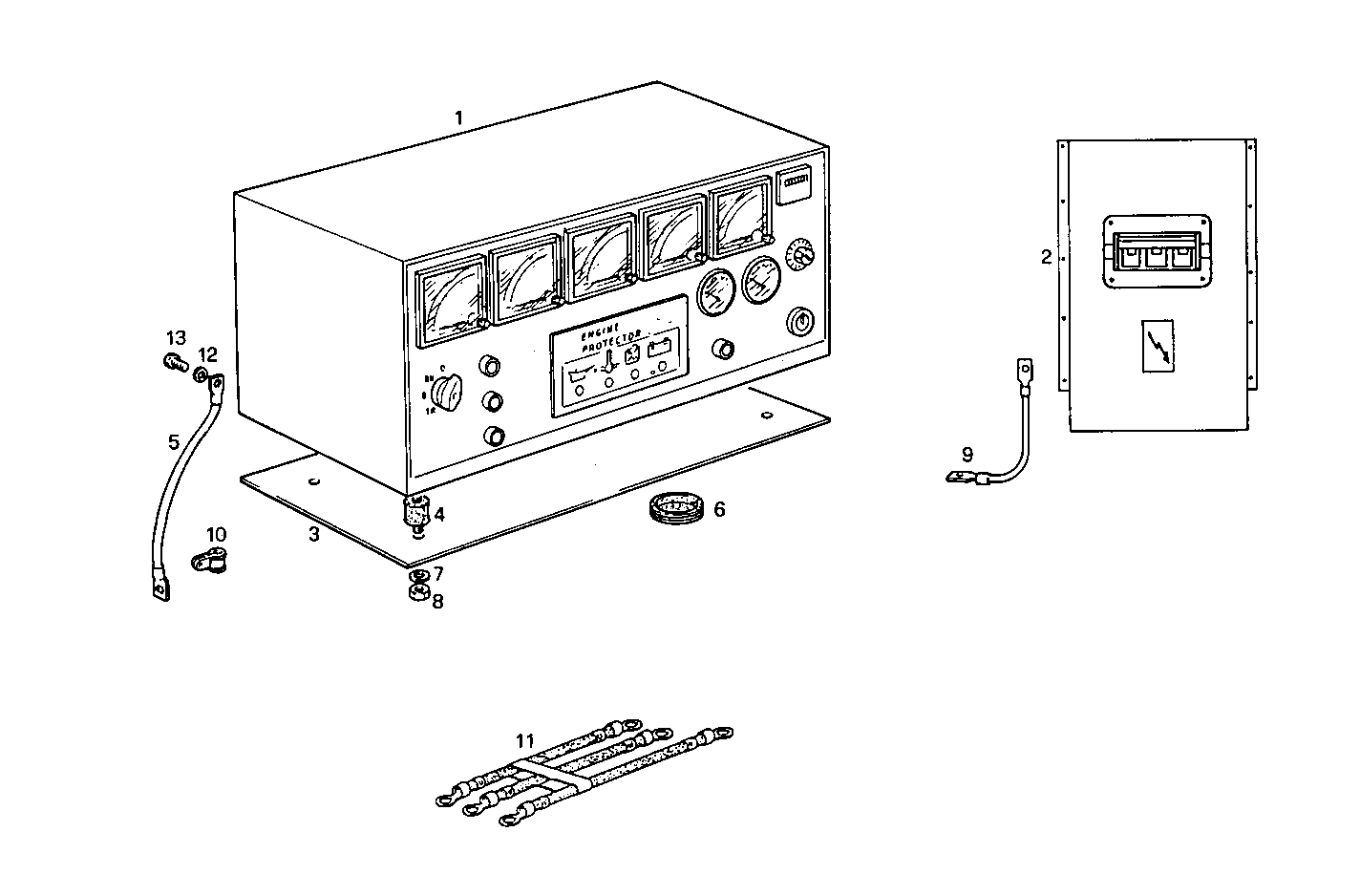

A60210040 MANUAL CONTROL BOARD FOR ELECT. MACHINE - STAMFORD

Iveco/FPT MANUAL CONTROL BOARD FOR ELECT. MACHINE

Item Part number Description
1 8009013 CONTROL BOARD ASSY 380V 50-60HZ [from ...]
2 8110788 DIFFERENTIAL SWITCH 500A
3 8110933 COVER
4 8104155 DOWEL
5 8111019 EARTH WIRE
6 8113214 INSULATING RING
7 17088474 WASHER Ø6X12 MM
8 17037821 HEXAGON NUT M6X1
9 8104707 WIRE/CABLE
10 17314890 CLIP
11 8006430 ENGINE HARNESS
12 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
13 16043124 SCREW M8X14 MM
