GE8361SRi25.06A955

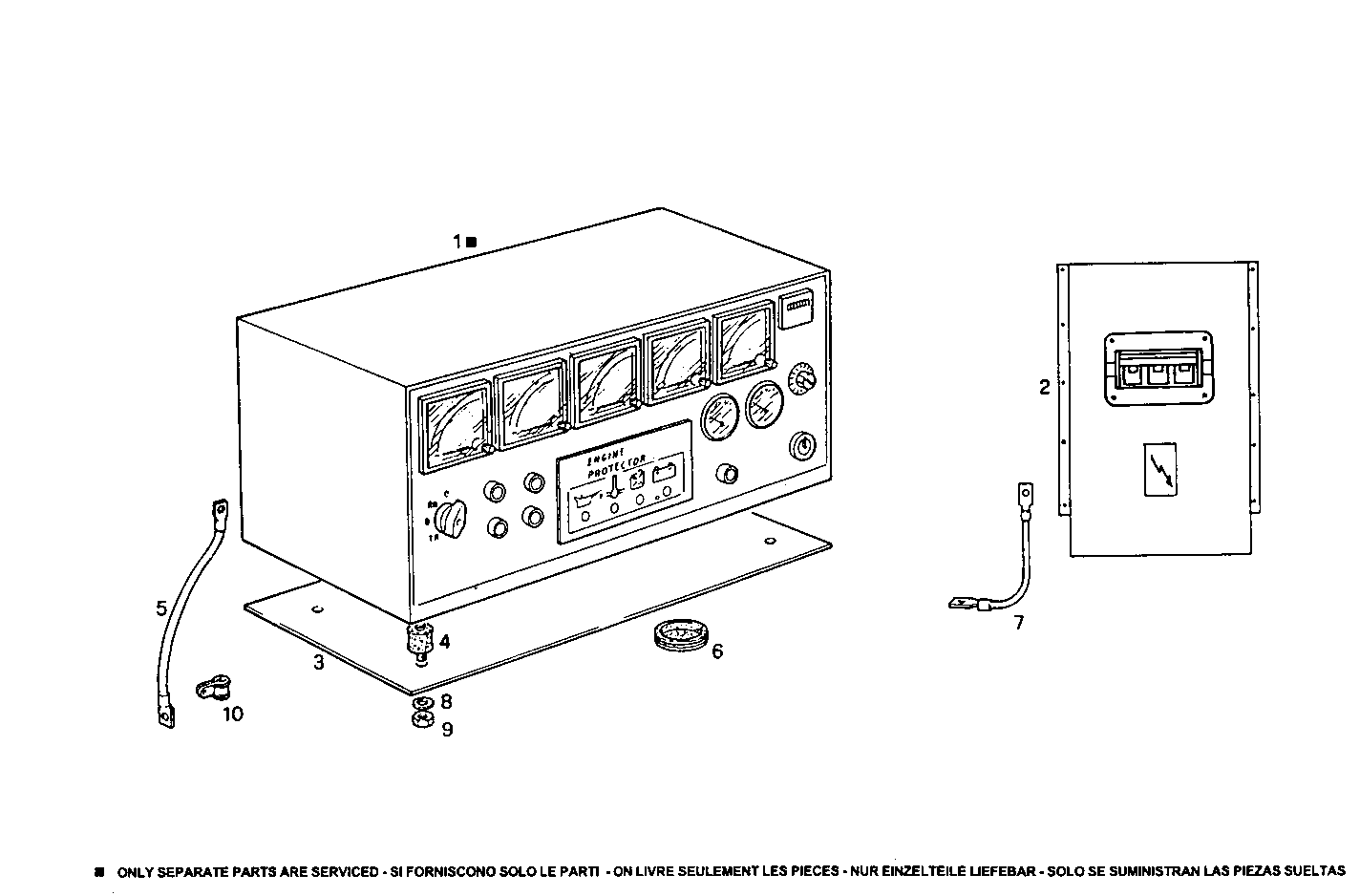

A60240006 MANUAL CONTROL BOARD FOR ELECT. MACHINE - MECC-ALTE
| Item | Part number | Description |
|---|---|---|
| 1 | 8009013 | CONTROL BOARD ASSY 380V 50-60HZ [from ...] |
| 2 | 8016301 | SWITCH 500A |
| 3 | 8016367 | COVER |
| 4 | 8104155 | DOWEL |
| 5 | 8016372 | EARTH WIRE |
| 6 | 8113214 | INSULATING RING |
| 7 | 8016373 | EARTH WIRE |
| 8 | 17088474 | WASHER Ø6X12 MM |
| 9 | 17037821 | HEXAGON NUT M6X1 |
| 10 | 17314890 | CLIP |
