GE8361SRi26.06A955

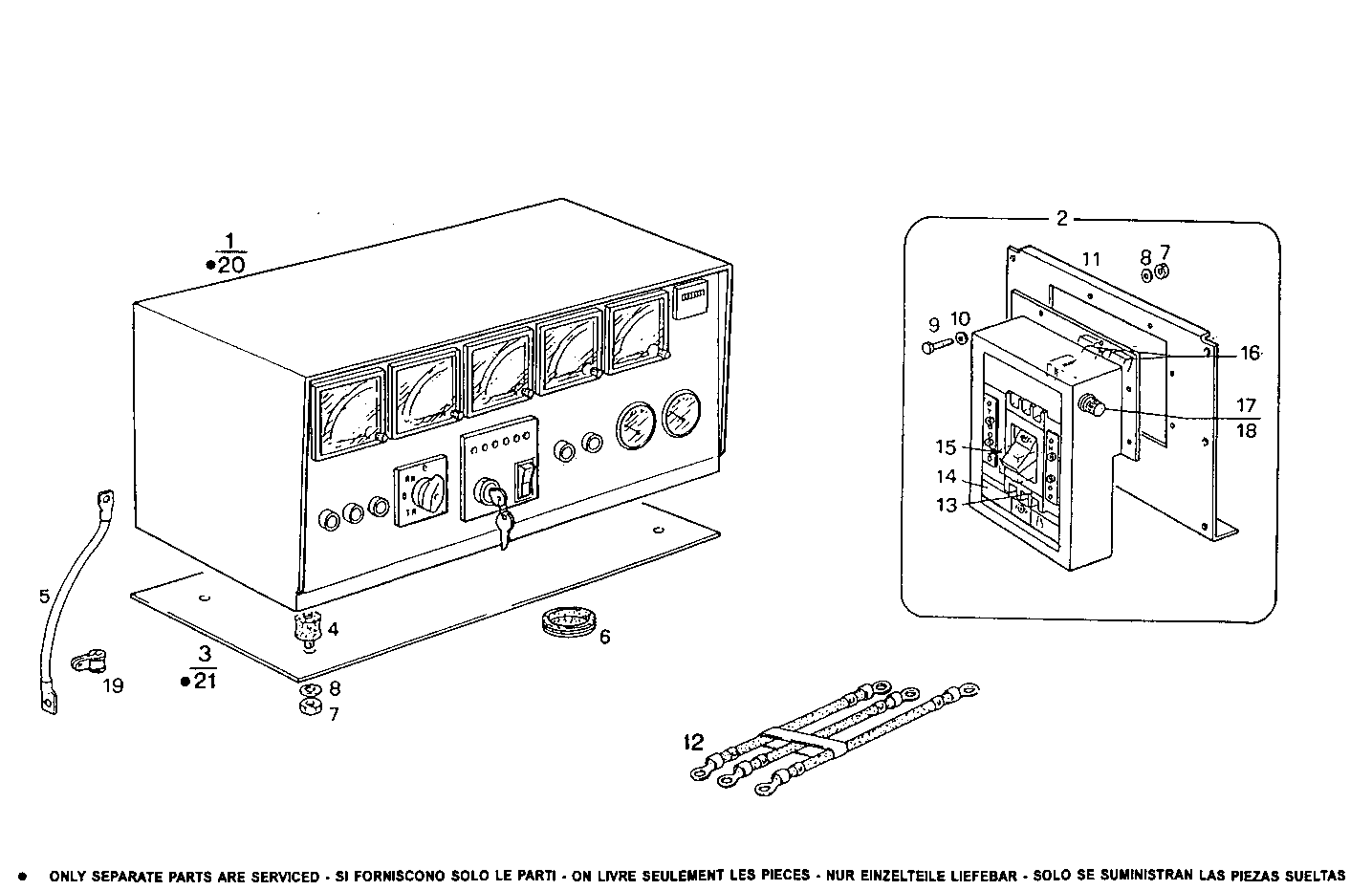

A60220063 MANUAL CONTROL BOARD FOR ELECT. MACHINE - LEROY [D 07-1995] [from07-1995]
| Item | Part number | Description |
|---|---|---|
| 1 | 8018940 | CONTROL BOARD ASSY 220V/380V 50-60HZ |
| 2 | 8020590 | SWITCH 400A |
| 3 | 8019257 | COVER |
| 4 | 8104155 | DOWEL |
| 5 | 8110852 | EARTH WIRE |
| 6 | 8113214 | INSULATING RING |
| 7 | 17037821 | HEXAGON NUT M6X1 |
| 8 | 17088474 | WASHER Ø6X12 MM |
| 9 | 16603524 | SCREW M6X12 MM (8.8) |
| 10 | 17094714 | WASHER Ø6,4X12 MM |
| 11 | 8021224 | COVER |
| 12 | 8022041 | WIRE/CABLE |
| 13 | 8021332 | THERMOSWITCH |
| 14 | 8021327 | SWITCH |
| 15 | 8021328 | MINIMUN TENSION COIL |
| 16 | 8090287 | TRANSFORMATOR |
| 17 | 8105267 | FUSE BOX 2A |
| 18 | 8105216 | FUSE 10A |
| 19 | 17314890 | CLIP |
| 20 | 8009060 | CONTROL BOARD ASSY 200-210KVA 380V 50-60HZ [from 07-93] |
| 21 | 8015662 | COVER |
