GE8361SRi26.07A955

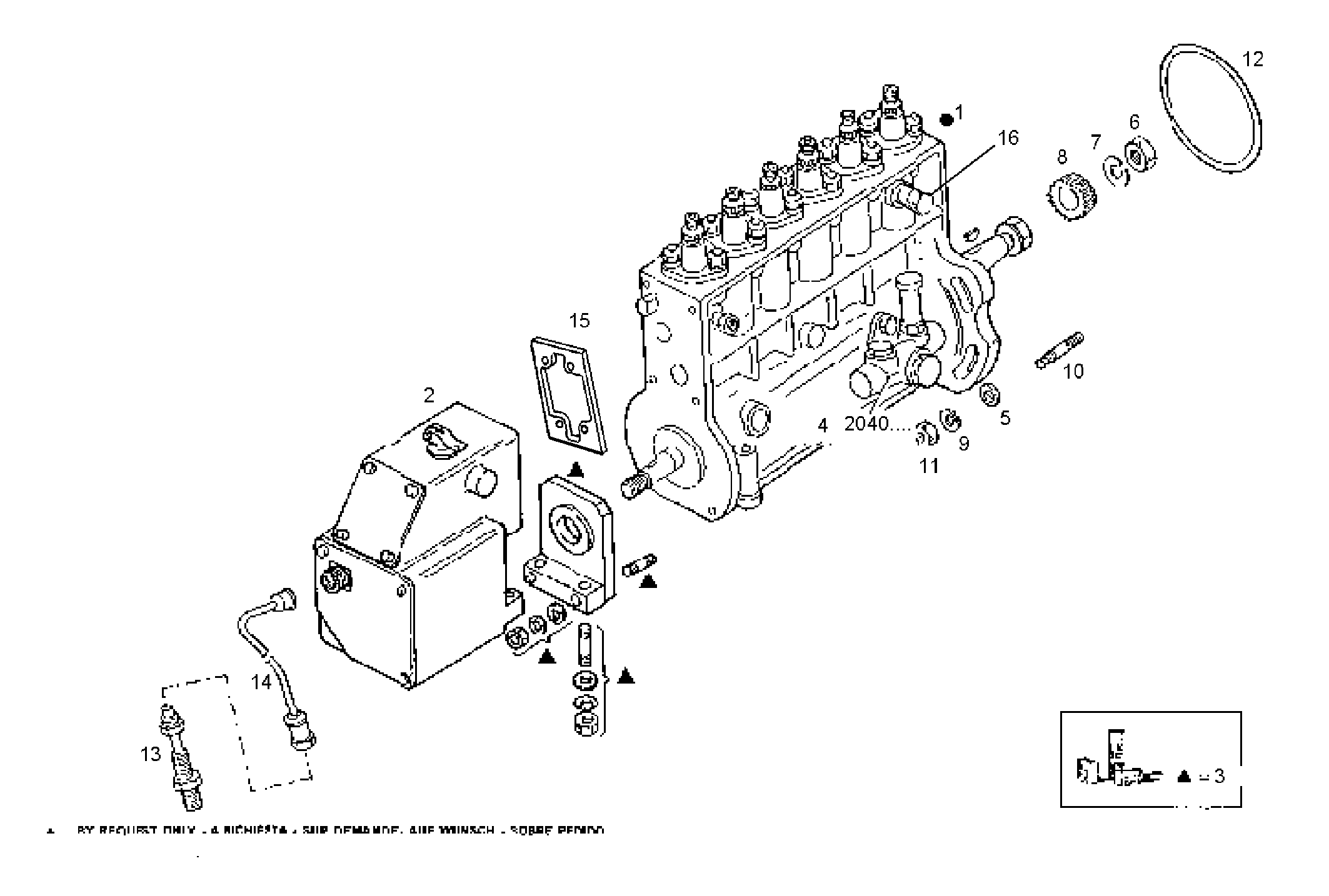

1400.219 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 8010683 | INLINE INJECT.PUMP ASSY |
| 2 | 8029133 | ENGINE ACTUATOR |
| 3 | 8018386 | SPEED-GOVERNOR-KIT |
| 4 | 8092638 | FUEL PUMP ASSY |
| 5 | 759850 | WASHER Ø10X21X2 MM |
| 6 | 4750524 | NUT |
| 7 | 4750525 | WASHER |
| 8 | 4816286 | BUSH 158ø |
| 9 | 17090274 | WASHER Ø10X20 MM |
| 10 | 13449821 | STUD M10X1,25X15 MM |
| 11 | 17038221 | HEXAGON NUT M10 |
| 12 | 17289281 | O-RING Ø34,5 MM SP=3,53 MM |
| 13 | 8018673 | PICK-UP |
| 14 | 8022927 | ENGINE HARNESS |
| 15 | 8093808 | GASKET |
| 16 | 8194141 | VALVE |
