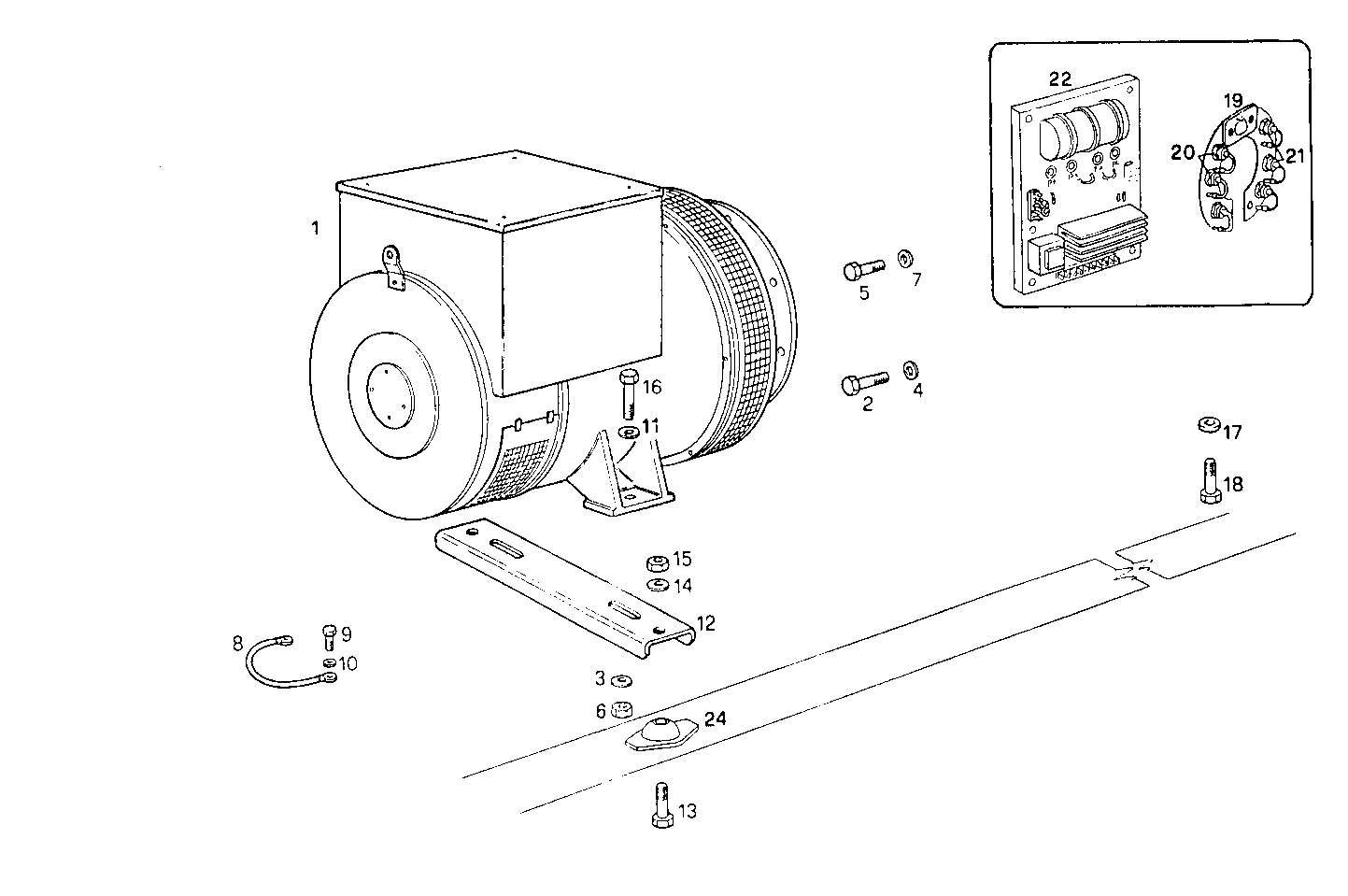

| Item |
Part number |
Description |
|
1 |
8014313 |
ELECTRIC MACHINE LSA 461 M5 50-60HZ |
|
2 |
11306921 |
SCREW M10X1,25X30 |
|
3 |
4279447 |
WASHER |
|
4 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
5 |
15970521 |
HEXAGON BOLT M10X20 MM |
|
6 |
17039321 |
NUT M20X2,5 |
|
7 |
17494934 |
WASHER Ø10X18,1X2,2 MM |
|
8 |
8104707 |
WIRE/CABLE |
|
9 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
10 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
11 |
17092774 |
WASHER Ø20X38X4,6 MM |
|
12 |
8015167 |
SUPPORT |
|
13 |
16620124 |
SCREW M24X3X80 |
|
14 |
17093174 |
WASHER Ø24X46X5,4 MM |
|
15 |
17039721 |
HEXAGON NUT M24 |
|
16 |
16619824 |
SCREW |
|
17 |
8109912 |
SPACING BAR 10MM |
|
18 |
16610824 |
SCREW M12X80 |
|
19 |
8092295 |
SUPPRESSOR |
|
20 |
8092294 |
EL.MACHINE DIODE - |
|
21 |
8092293 |
EL.MACHINE DIODE + |
|
22 |
8092292 |
EL.MACHINE VOLTAGE REGUL. |
|
24 |
4955094 |
RUBBER PAD |
