GE8361SRi26.07R970

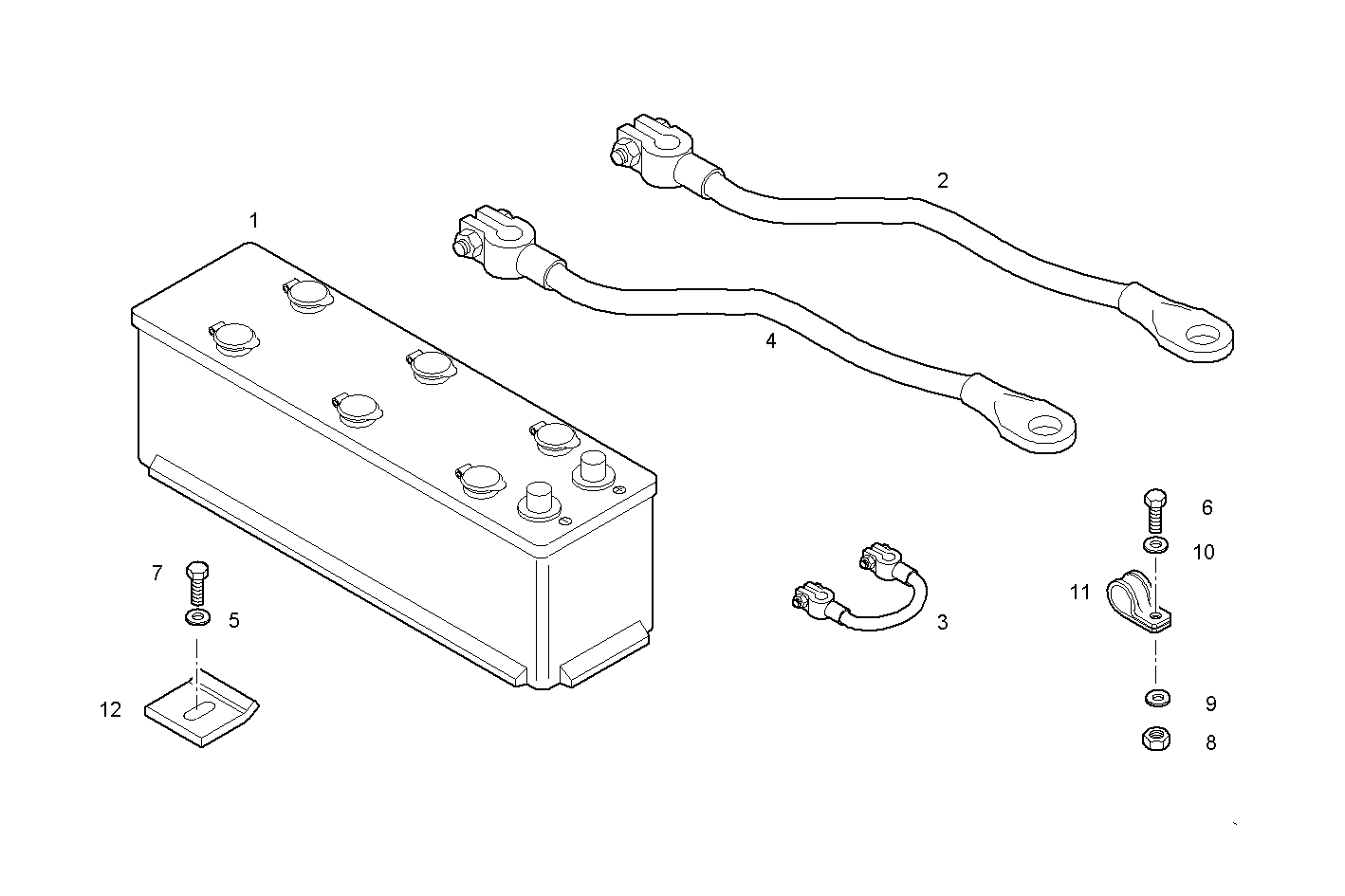

A30040010 STARTING BATTERY 24V
| Item | Part number | Description |
|---|---|---|
| 1 | 4931027 | BATTERY 12V |
| 2 | 4930995 | WIRE/CABLE (+) |
| 3 | 4930994 | WIRE/CABLE |
| 4 | 4936214 | WIRE/CABLE (-) |
| 5 | 12626221 | WASHER Ø10X25 MM [up to ...] |
| 6 | 16603734 | HEXAGON BOLT M6X20 MM |
| 7 | 16607524 | HEXAGON BOLT M10X1,5X20 MM (8.8) |
| 8 | 17037821 | HEXAGON NUT M6X1 |
| 9 | 17088474 | WASHER Ø6X12 MM |
| 10 | 17090174 | SPRING WASHER Ø10X20 MM |
| 11 | 17315090 | FASTENING BRACKET Ø14 MM |
| 12 | 8024305 | RETAINER |
