GE8361SRi26.07R970

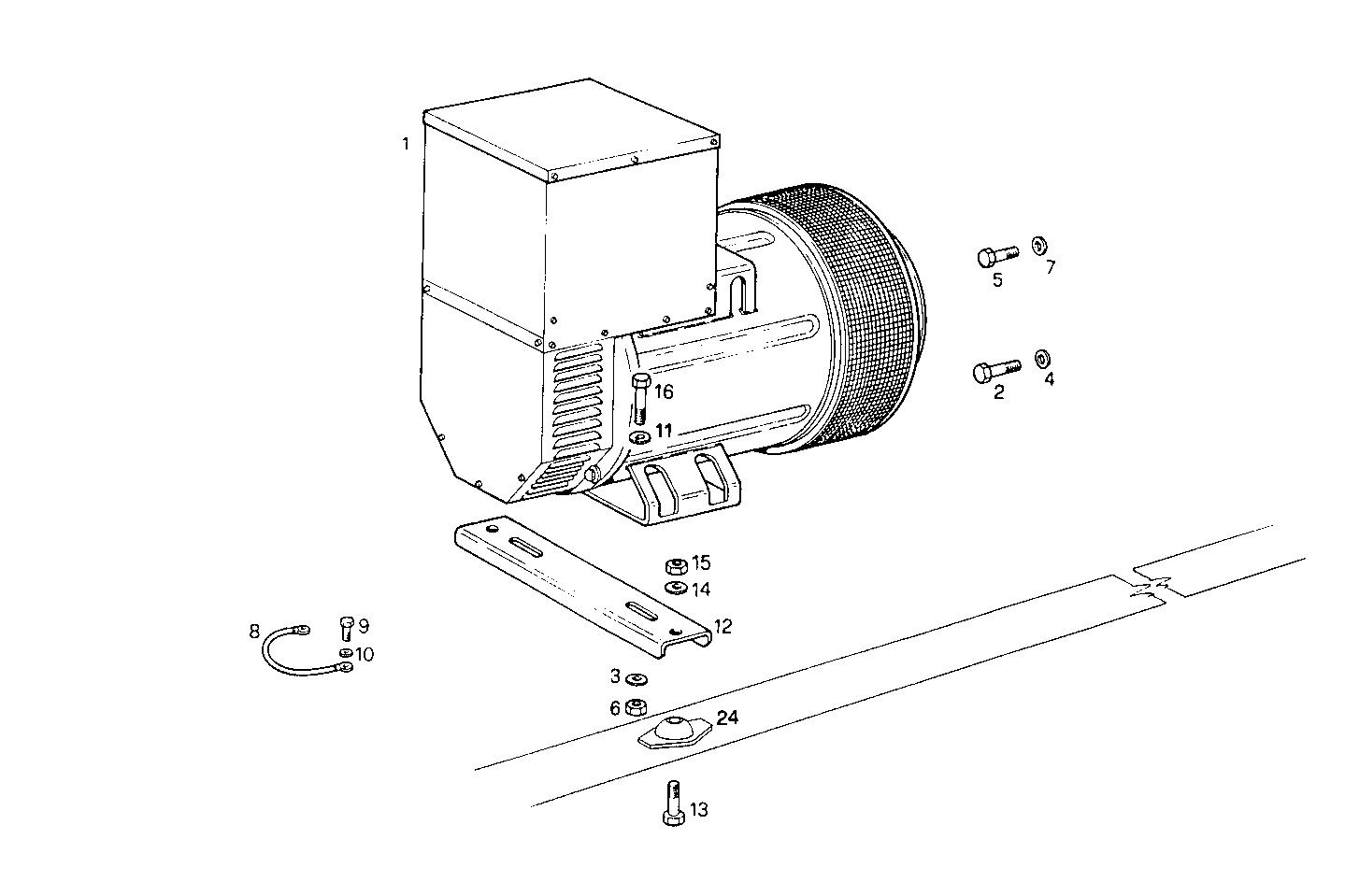

A37410022 SINGLE BEARING ELECTRIC MACHINE - MECC-ALTE
| Item | Part number | Description |
|---|---|---|
| 1 | 8015004 | ELECTRIC MACHINE ECN 37 SD/4 50-60HZ |
| 2 | 11306921 | SCREW M10X1,25X30 |
| 3 | 4279447 | WASHER |
| 4 | 17090174 | SPRING WASHER Ø10X20 MM |
| 5 | 15970521 | HEXAGON BOLT M10X20 MM |
| 6 | 17039321 | NUT M20X2,5 |
| 7 | 17494934 | WASHER Ø10X18,1X2,2 MM |
| 8 | 8104707 | WIRE/CABLE |
| 9 | 16605524 | HEXAGON BOLT M8X20 MM |
| 10 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 11 | 17092774 | WASHER Ø20X38X4,6 MM |
| 12 | 8015167 | SUPPORT |
| 13 | 16620124 | SCREW M24X3X80 |
| 14 | 17093174 | WASHER Ø24X46X5,4 MM |
| 15 | 17039721 | HEXAGON NUT M24 |
| 16 | 16619824 | SCREW |
| 24 | 4955094 | RUBBER PAD |
