| Item |
Part number |
Description |
|

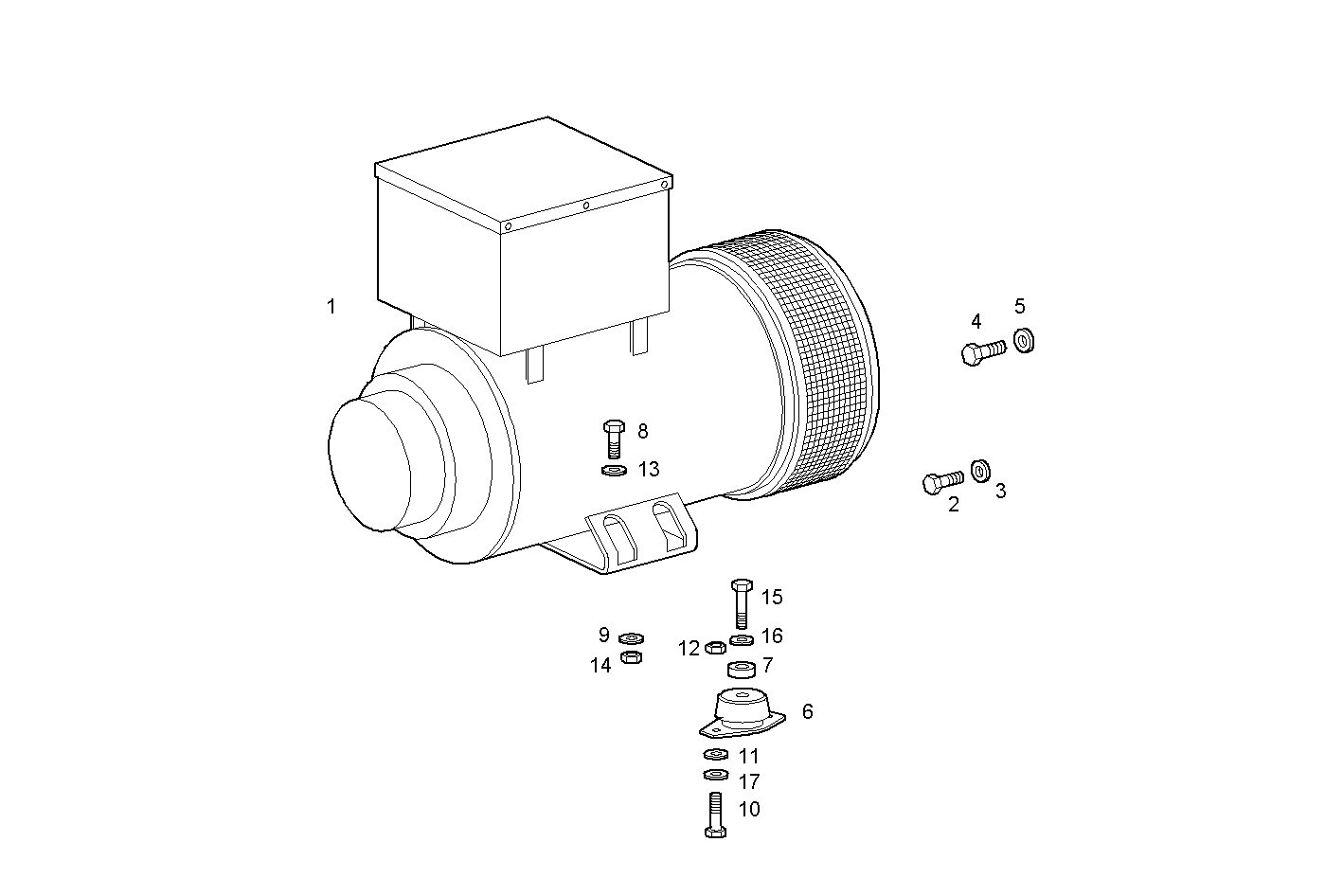

1 |
503112284 |
ELECTRIC MACHINE MJB250LB4 |
|
2 |
16608224 |
SCREW M10X1,5X55 MM |
|
3 |
17090174 |
SPRING WASHER �10X20 MM |
|
4 |
16609924 |
HEXAGON BOLT M12X30 MM (8.8) |
|
5 |
17091074 |
WASHER �12X24X2,8 MM |
|
6 |
503111672 |
RUBBER LUG |
|
7 |
8015985 |
SPACING BAR |
|
8 |
16617224 |
SCREW M20X50 |
|
9 |
17092774 |
WASHER �20X38X4,6 MM |
|
10 |
16607734 |
HEXAGON BOLT M10X30 MM |
|
11 |
17090474 |
SPRING WASHER �10X27 MM SP=2,5 |
|
12 |
17038125 |
NUT M10 |
|
13 |
17096050 |
WASHER �20X37 MM |
|
14 |
17039321 |
NUT M20X2,5 |
|
15 |
16615424 |
HEXAGON BOLT |
|
16 |
17092174 |
SPRING WASHER �16X32X3,4 |
|
17 |
16665604 |
WASHER �10X20 MM |
