GECURSOR250ES.A001

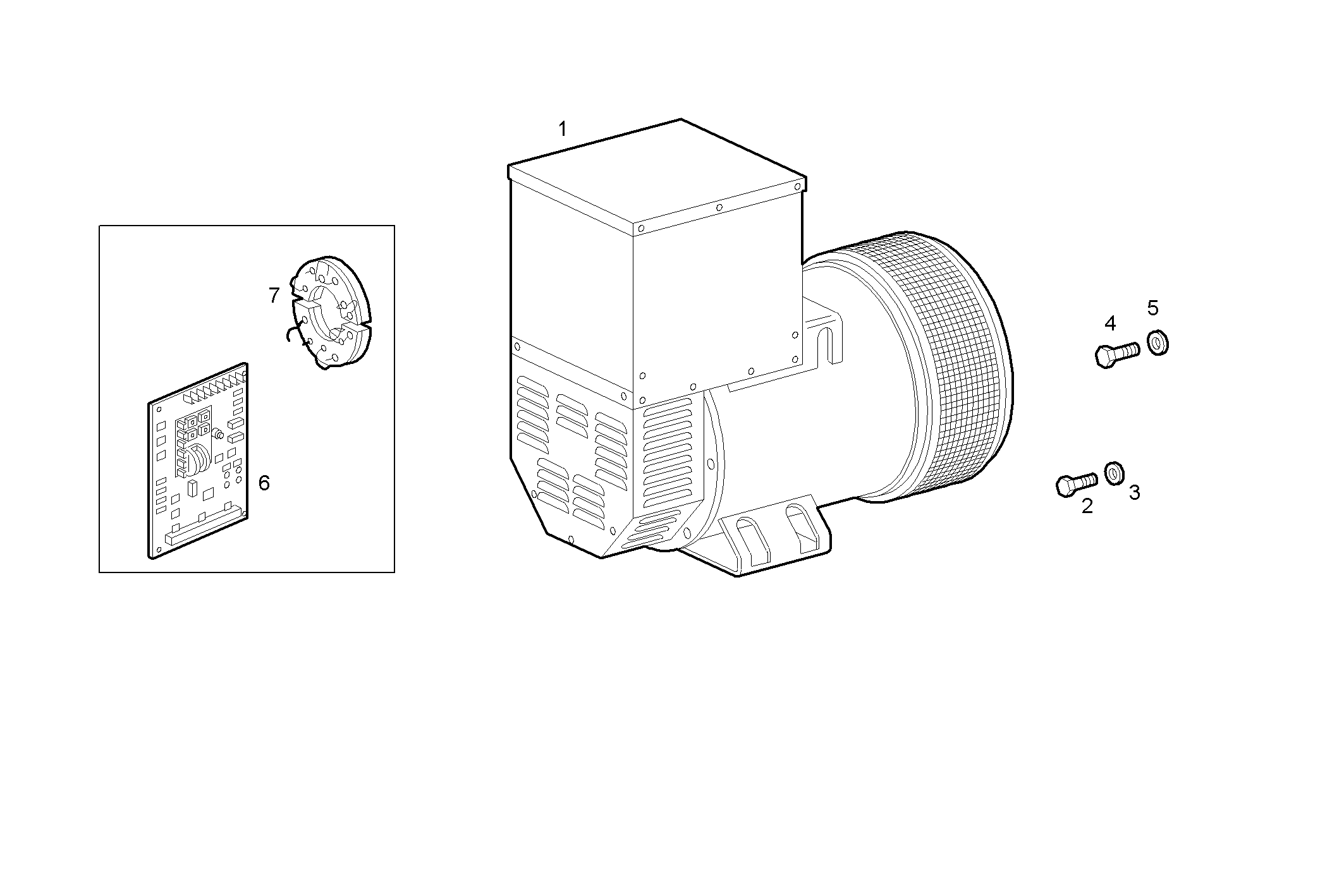

5720.004 ELECTRIC MACHINE

Iveco/FPT ELECTRIC MACHINE

Item Part number Description
1 503112283 ELECTRIC MACHINE ECO381LN 250KVA
2 16608325 HEXAGON BOLT
3 17090174 SPRING WASHER Ø10X20 MM
4 16609924 HEXAGON BOLT M12X30 MM (8.8)
5 17091074 WASHER Ø12X24X2,8 MM
6 8094731 EL.MACHINE VOLTAGE REGUL.
7 8093763 EL.MACH.DIODE BRIDGE
