GECURSOR270ED.R990

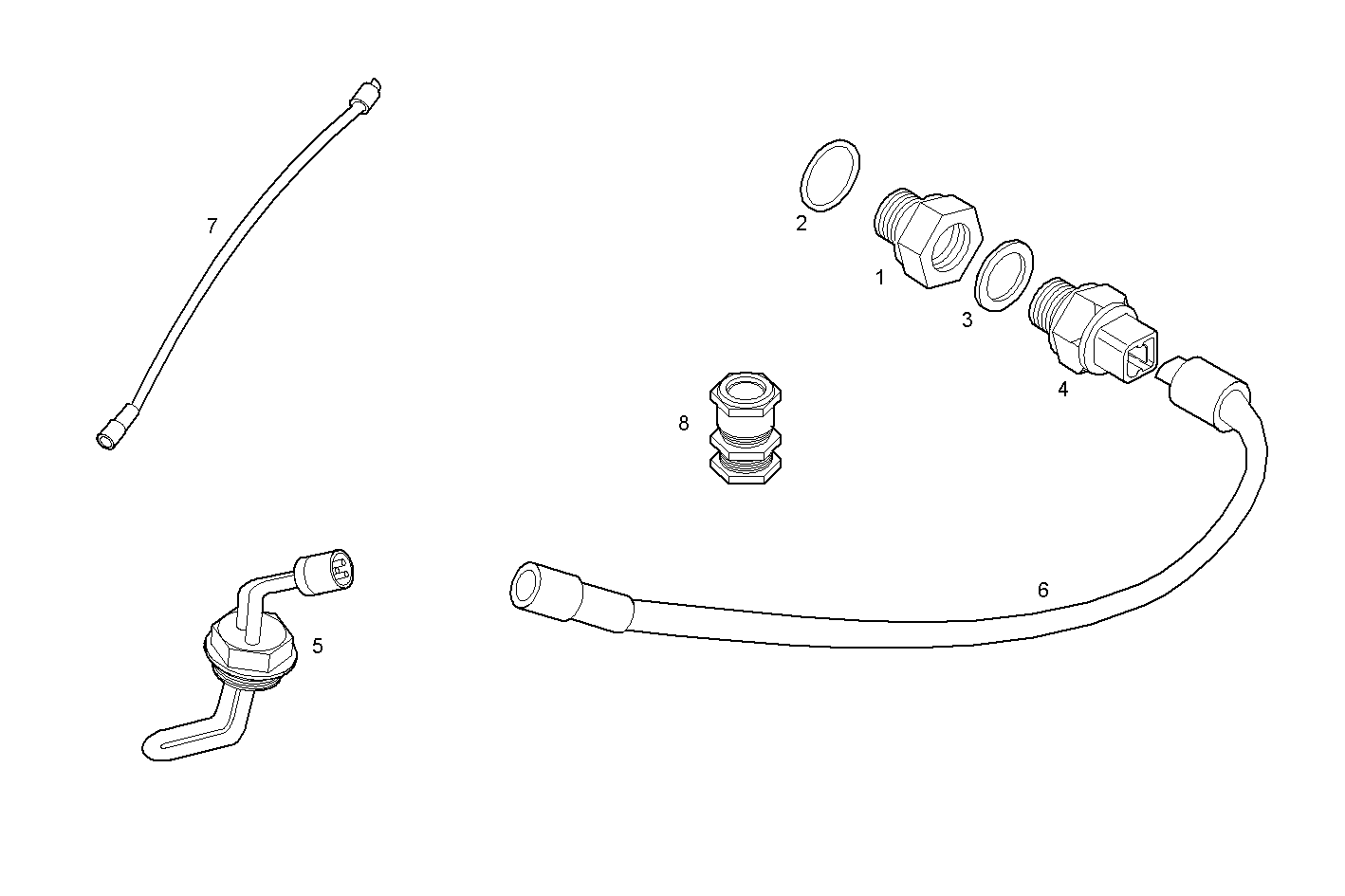

A20605005 WATER PREHEATER DEVICE - 230V
| Item | Part number | Description |
|---|---|---|
| 1 | 4928330 | PIPE SOCKET M16X1,5/M14X1,5 |
| 2 | 98474309 | WASHER Ø16X24 MM SP=1,9 MM |
| 3 | 98474308 | SEAL GASKET Ø14X22 MM |
| 4 | 503110825 | THERMOSWITCH |
| 5 | 8045149 | HEATER |
| 6 | 503111088 | WIRE/CABLE |
| 7 | 8038505 | WIRE/CABLE |
| 8 | 503111395 | GROMMET |
