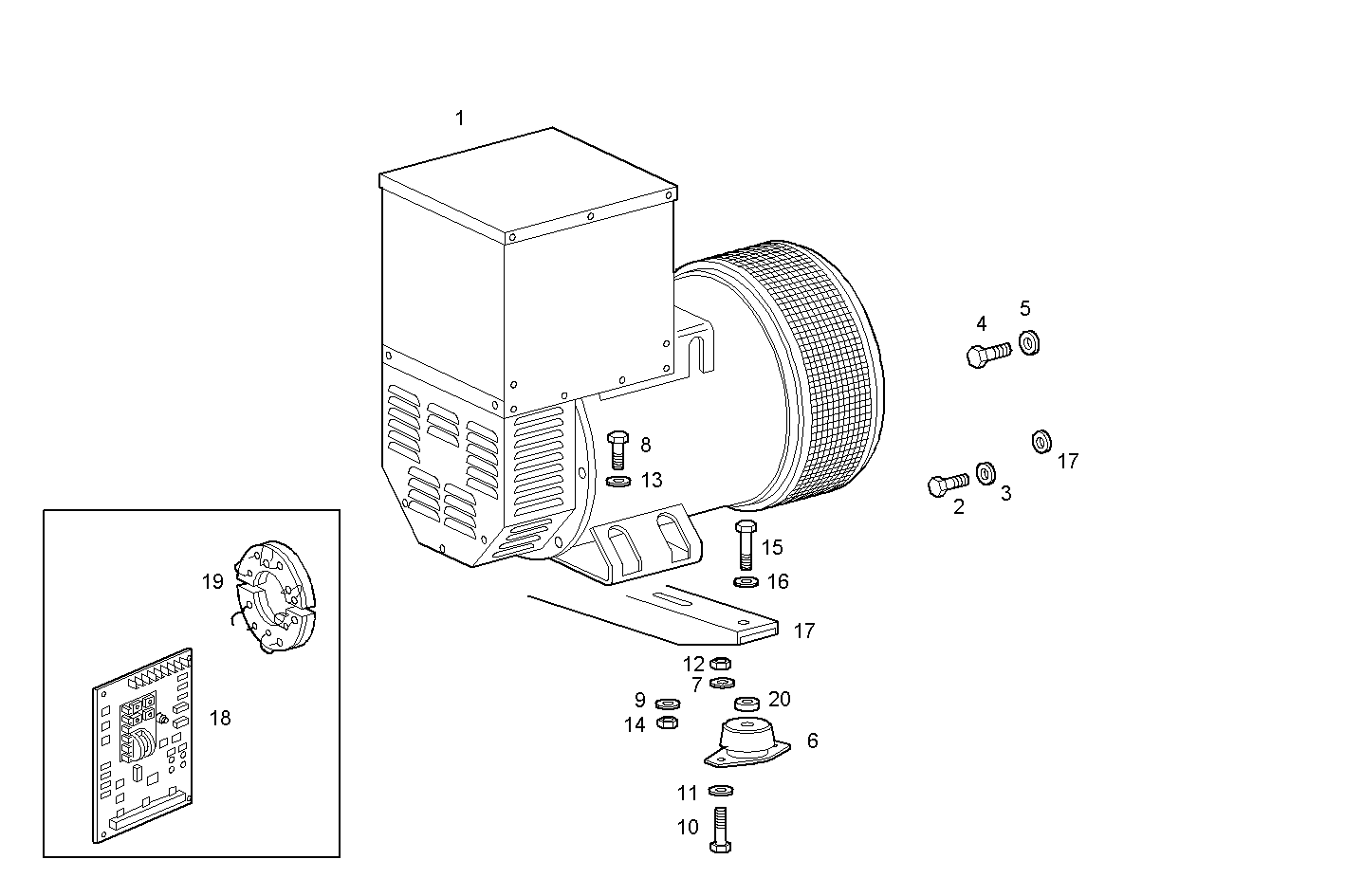

| Item |
Part number |
Description |
|
1 |
503112750 |
ELECTRIC MACHINE ECO 383 LN 300KVA |
|
2 |
17091074 |
WASHER �12X24X2,8 MM |
|
3 |
16609924 |
HEXAGON BOLT M12X30 MM (8.8) |
|
4 |
16608525 |
HEXAGON BOLT M10X1,5X70 MM (8.8) |
|
5 |
17090174 |
SPRING WASHER �10X20 MM |
|
6 |
503112690 |
RUBBER PAD |
|
7 |
17091674 |
WASHER �14X27X3,0 MM |
|
8 |
16615924 |
SCREW |
|
9 |
17092774 |
WASHER �20X38X4,6 MM |
|
10 |
16612424 |
HEXAGON BOLT M14X40 MM |
|
11 |
17095504 |
WASHER �14X28 MM |
|
12 |
17038725 |
NUT M14 |
|
13 |
17096050 |
WASHER �20X37 MM |
|
14 |
17039321 |
NUT M20X2,5 |
|
15 |
16617424 |
SCREW M20X60 |
|
16 |
17092174 |
SPRING WASHER �16X32X3,4 |
|
17 |
503112683 |
TIE |
|
18 |
8094731 |
EL.MACHINE VOLTAGE REGUL. |
|
19 |
8093763 |
EL.MACH.DIODE BRIDGE |
|
20 |
503112698 |
SPACING BAR |
