GECURSOR350EA.A71M

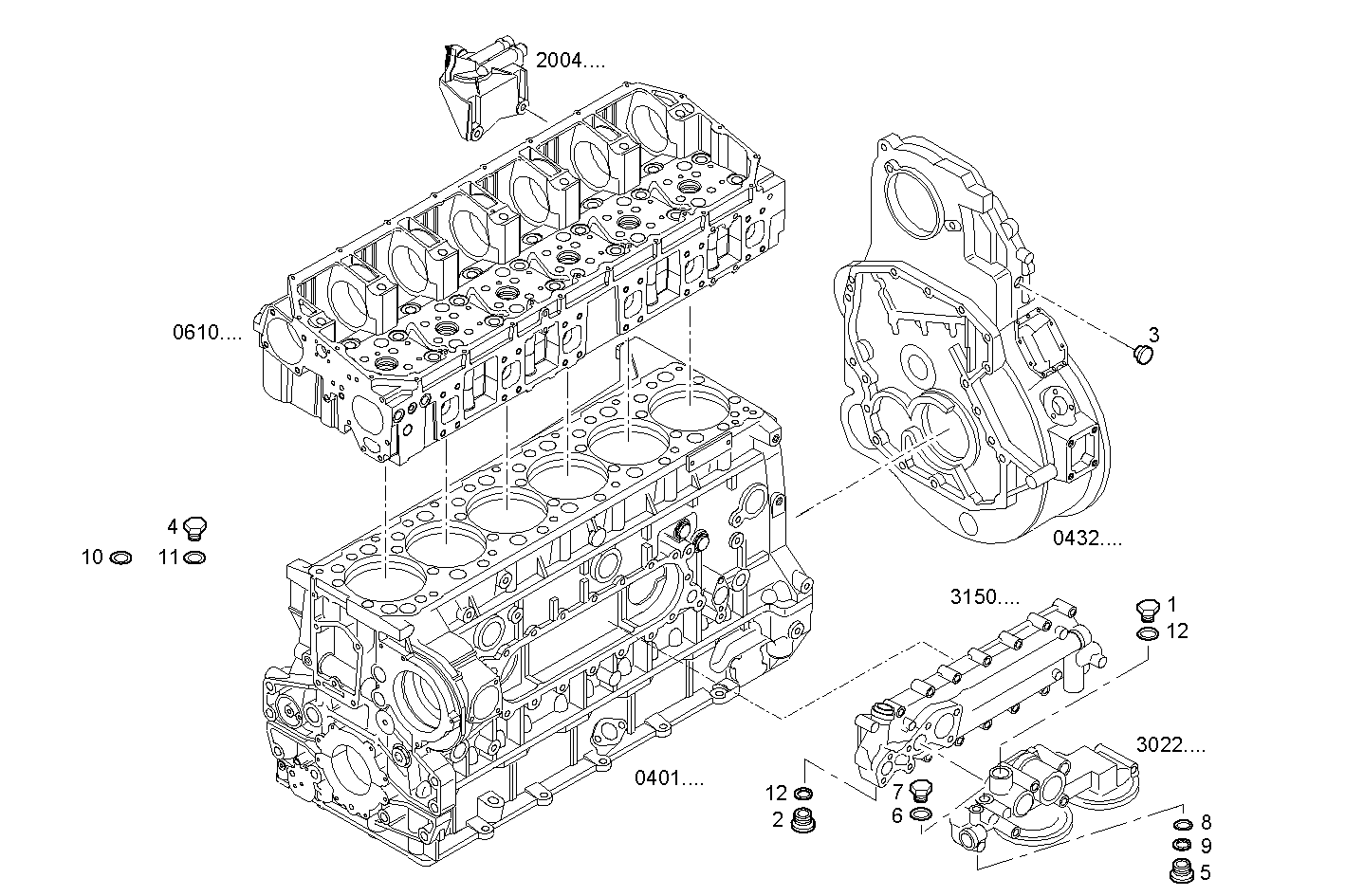

1712.026 SENSORS

Iveco/FPT SENSORS

Item Part number Description
1 504084571 THREADED PLUG
2 10300611 LOCK PLUG M14X1,5
3 504051237 THREADED PLUG DIAM=1/4"
4 16992211 THREADED PLUG M12X1,5
5 500337200 THREADED PLUG [FROM # 50368]
6 99489019 WASHER Ø16X24 MM SP=1,5 MM
7 16992415 THREADED PLUG M16X1,5
8 17278181 O-RING [FROM # 50368]
9 500337199 O-RING [FROM # 50368]
10 17277881 O-RING Ø7,65 MM SP=1,78 MM
11 99489017 SEAL GASKET Ø12X20 MM SP=1,5 MM
12 99489018 SEAL GASKET Ø14X22 MM SP=1,5 MM
