GECURSOR350EA.R990

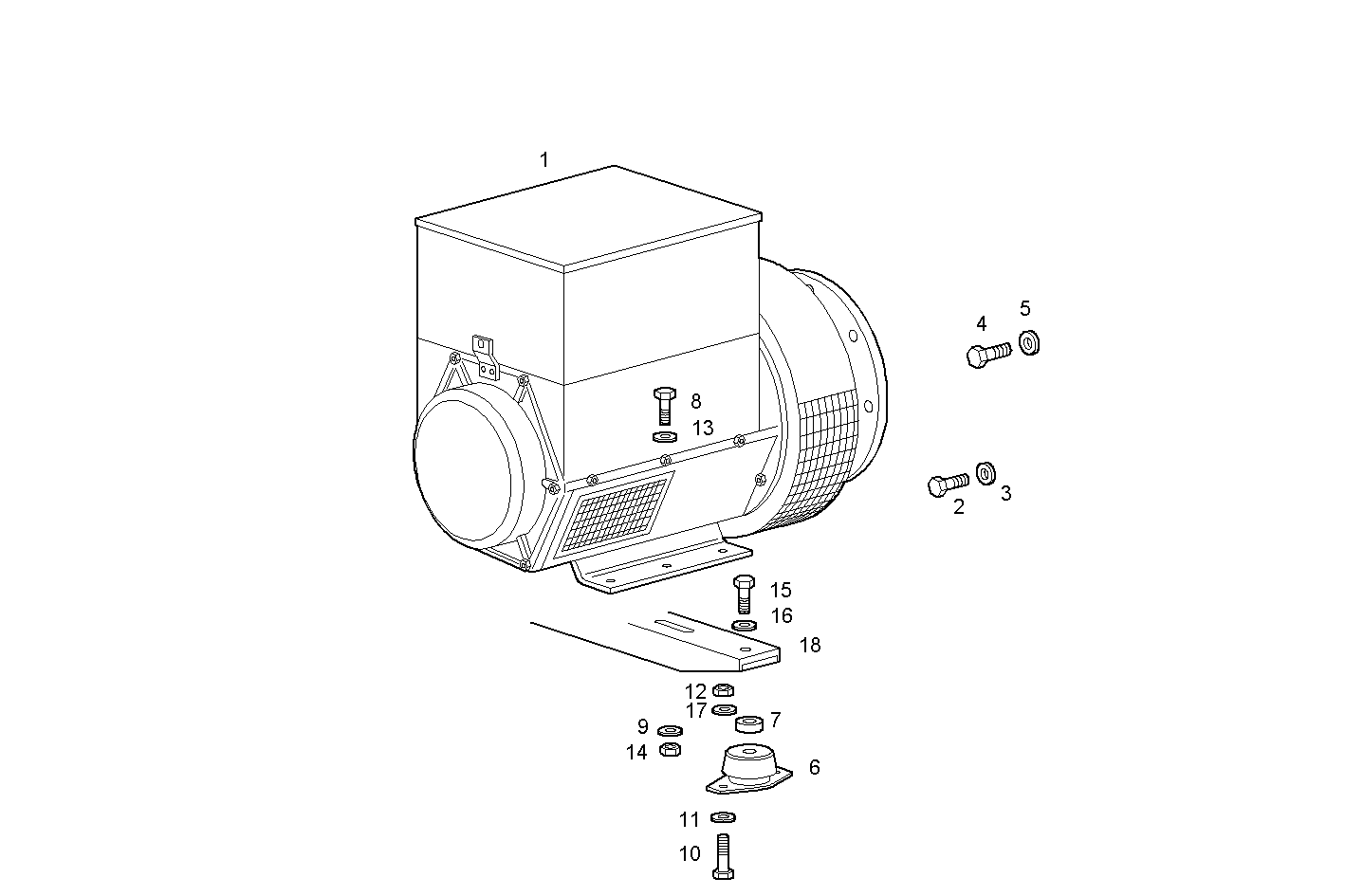

A37215009 ELECTRIC MACHINE - MARELLI

Iveco/FPT ELECTRIC MACHINE

Item Part number Description
1 503112754 ELECTRIC MACHINE MJB315
2 16608125 HEXAGON BOLT M10X50
3 17090174 SPRING WASHER Ø10X20 MM
4 16609924 HEXAGON BOLT M12X30 MM (8.8)
5 17091074 WASHER Ø12X24X2,8 MM
6 503112690 RUBBER PAD
7 503112698 SPACING BAR
8 16619824 SCREW
9 17096214 WASHER
10 16612424 HEXAGON BOLT M14X40 MM
11 17091674 WASHER Ø14X27X3,0 MM
12 17038725 NUT M14
13 17093174 WASHER Ø24X46X5,4 MM
14 17039721 HEXAGON NUT M24
15 16615524 HEXAGON BOLT
16 17092174 SPRING WASHER Ø16X32X3,4
17 17095504 WASHER Ø14X28 MM
18 503112683 TIE
