GECURSOR400E.A001

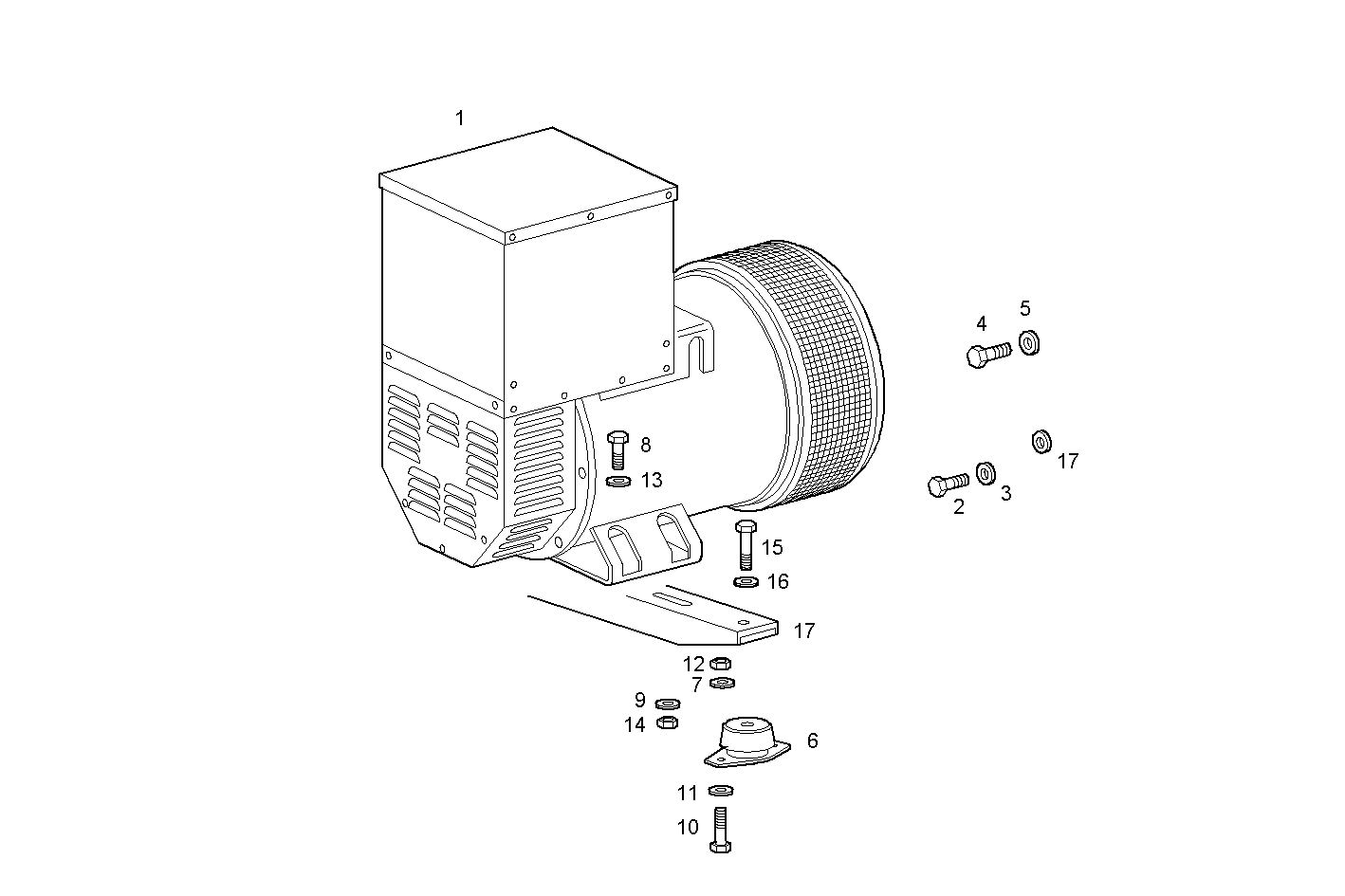

A37415008 ELECTRIC MACHINE - MECC-ALTE
| Item | Part number | Description |
|---|---|---|
| 1 | 503112751 | ELECTRIC MACHINE ECO 40 1S 50-60HZ |
| 2 | 17091074 | WASHER �12X24X2,8 MM |
| 3 | 16610024 | SCREW M12X35 |
| 4 | 16608424 | SCREW M10X1,25X65 |
| 5 | 17090174 | SPRING WASHER �10X20 MM |
| 6 | 503112690 | RUBBER PAD |
| 7 | 17095504 | WASHER �14X28 MM |
| 8 | 16619824 | SCREW |
| 9 | 17093174 | WASHER �24X46X5,4 MM |
| 10 | 16612424 | HEXAGON BOLT M14X40 MM |
| 11 | 17091674 | WASHER �14X27X3,0 MM |
| 12 | 17038725 | NUT M14 |
| 13 | 17096204 | WASHER �24 MM |
| 14 | 17039721 | HEXAGON NUT M24 |
| 15 | 16615024 | SCREW M16 |
| 16 | 17092174 | SPRING WASHER �16X32X3,4 |
| 17 | 503112683 | TIE |
