GECURSOR400E.A71M

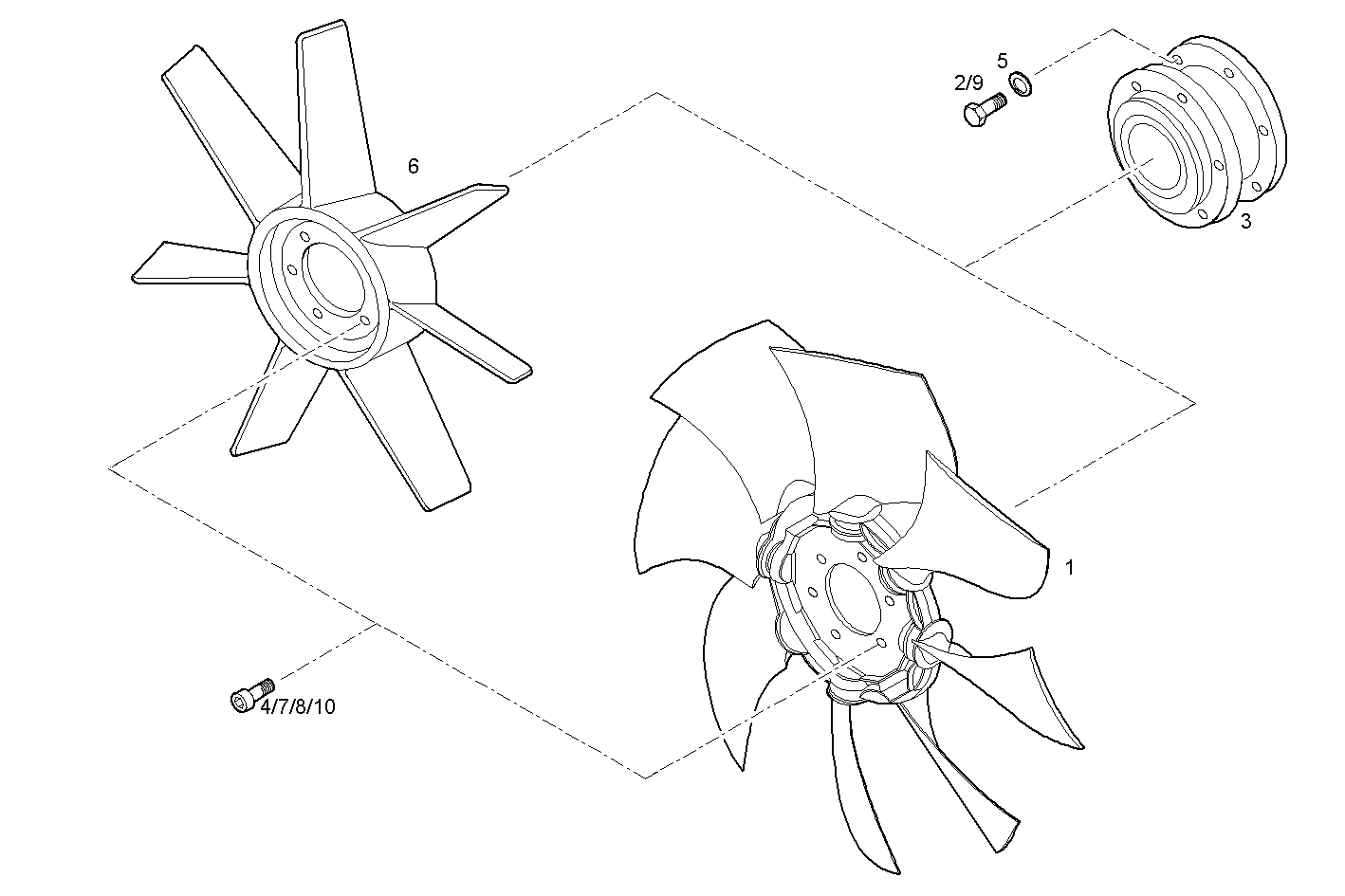

A08010504 PUSHER FAN
| Item | Part number | Description |
|---|---|---|
| 1 | 8041461 | FAN EIGHT BLADES |
| 2 | 16690924 | CYLIND-HEAD SCREW M8X40 MM |
| 3 | 8037429 | HUB |
| 4 | 504003975 | CYLIND-HEAD SCREW M8X1,25X20 |
| 5 | 17096824 | WASHER Ø8,40X15 MM |
| 6 | 8021735 | FAN DIA 820 |
| 7 | 500355362 | CYLIND-HEAD SCREW M8X30 MM |
| 8 | 504010369 | CYLIND-HEAD SCREW M8X40 MM [FROM 05-2005] |
| 9 | 16690625 | CYLIND-HEAD SCREW M8X25 MM |
