GECURSOR400E.A71M

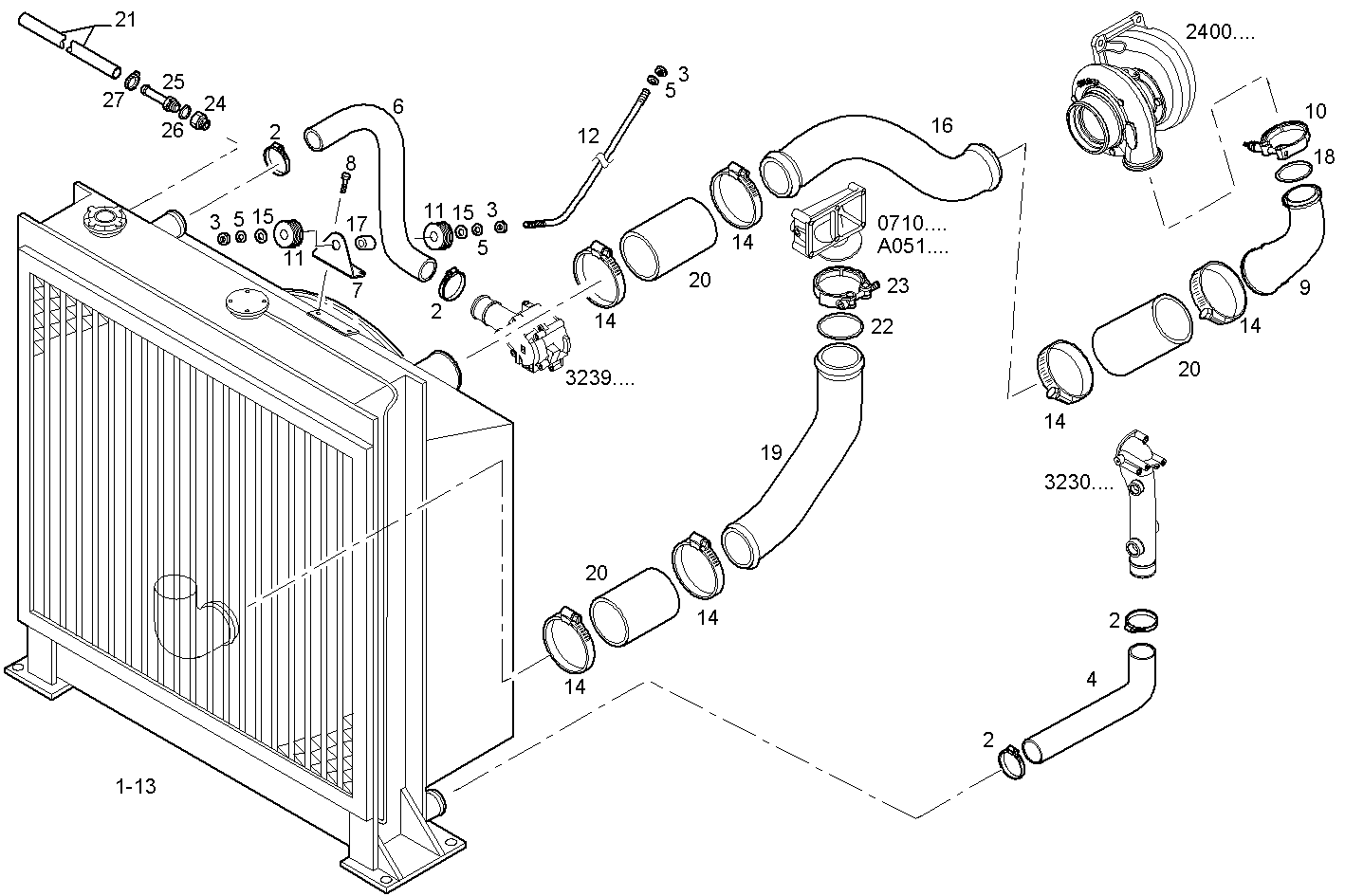

A22480502 RADIATOR 2 CIRCUITS AIR/WATER

Iveco/FPT RADIATOR 2 CIRCUITS AIR/WATER

Item Part number Description
1 8045778 WATER RADIATOR
2 17765091 CLIP Ø60/80 MM
3 17038425 HEXAGON NUT M12 (8)
4 8040979 RUBBER SLEEVE
5 17091074 WASHER Ø12X24X2,8 MM
6 8040980 RUBBER SLEEVE
7 8019397 RETAINER
8 16605624 HEXAGON BOLT M8X25 MM (8.8)
9 504039838 AIR PIPE/DUCT
10 500307975 CLIP
11 741569 RUBBER LUG
12 8041271 TIE ROD
13 8039384 WATER RADIATOR
14 17765391 CLIP Ø90/110 MM
15 741570 WASHER Ø10X17 MM SP=2,3
16 8040977 AIR PIPE/DUCT
17 741571 SPACING BAR Ø10X17 MM SP=2,3
18 17290781 O-RING Ø78,97X3,53 MM
19 8040935 AIR PIPE/DUCT
20 8030531 TURBOCHARGER HOSE
21 19056687 RUBBER HOSE Ø7,5 MM
22 17291281 O-RING Ø94,84 MM SP=3,53 MM
23 99435103 CLIP
24 8100963 PIPE SOCKET
25 4935134 OIL LINE
26 4858606 GASKET Ø10X14X1 MM
27 18087991 CLIP Ø8/16 MM
