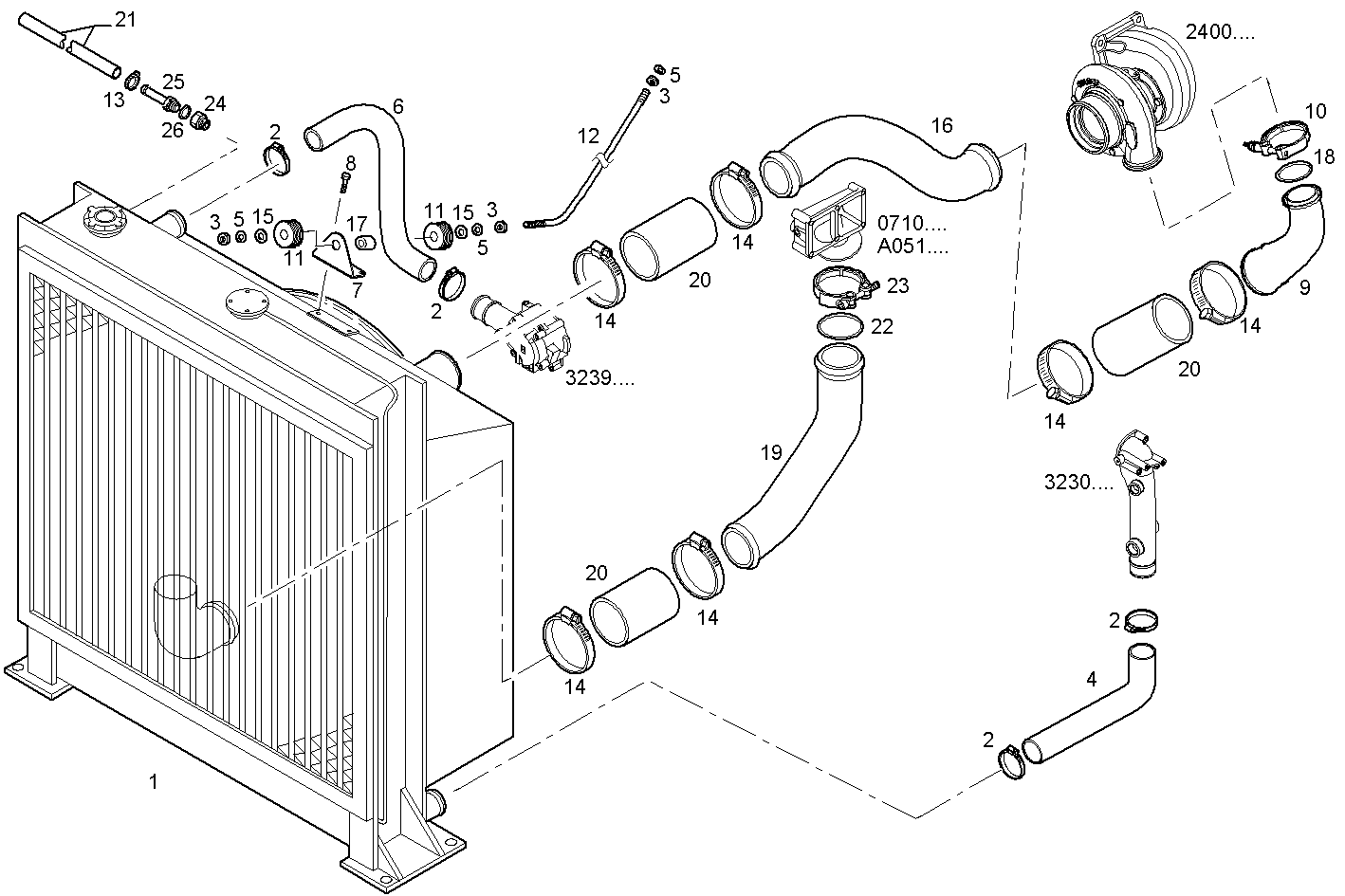

| Item |
Part number |
Description |
|
1 |
8045778 |
WATER RADIATOR |
|
2 |
17765091 |
CLIP Ø60/80 MM |
|
3 |
17038425 |
HEXAGON NUT M12 (8) |
|
4 |
8040979 |
RUBBER SLEEVE |
|
5 |
17091074 |
WASHER Ø12X24X2,8 MM |
|
6 |
8040980 |
RUBBER SLEEVE |
|
7 |
8019397 |
RETAINER |
|
8 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
9 |
61318365 |
AIR PIPE/DUCT |
|
10 |
4800661 |
CLIP Ø 75 mm. |
|
11 |
741569 |
RUBBER LUG |
|
12 |
8041271 |
TIE ROD |
|
13 |
18087991 |
CLIP Ø8/16 MM |
|
14 |
17765391 |
CLIP Ø90/110 MM |
|
15 |
741570 |
WASHER Ø10X17 MM SP=2,3 |
|
16 |
8044438 |
AIR PIPE/DUCT |
|
17 |
741571 |
SPACING BAR Ø10X17 MM SP=2,3 |
|
18 |
17284681 |
O-RING Ø61,6 MM SP=2,62 MM |
|
19 |
8044259 |
AIR PIPE/DUCT |
|
20 |
8030531 |
TURBOCHARGER HOSE |
|
21 |
19056687 |
RUBBER HOSE Ø7,5 MM |
|
22 |
17291281 |
O-RING Ø94,84 MM SP=3,53 MM |
|
23 |
99435103 |
CLIP |
|
24 |
8100963 |
PIPE SOCKET |
|
25 |
4935134 |
OIL LINE |
|
26 |
4858606 |
GASKET Ø10X14X1 MM |
