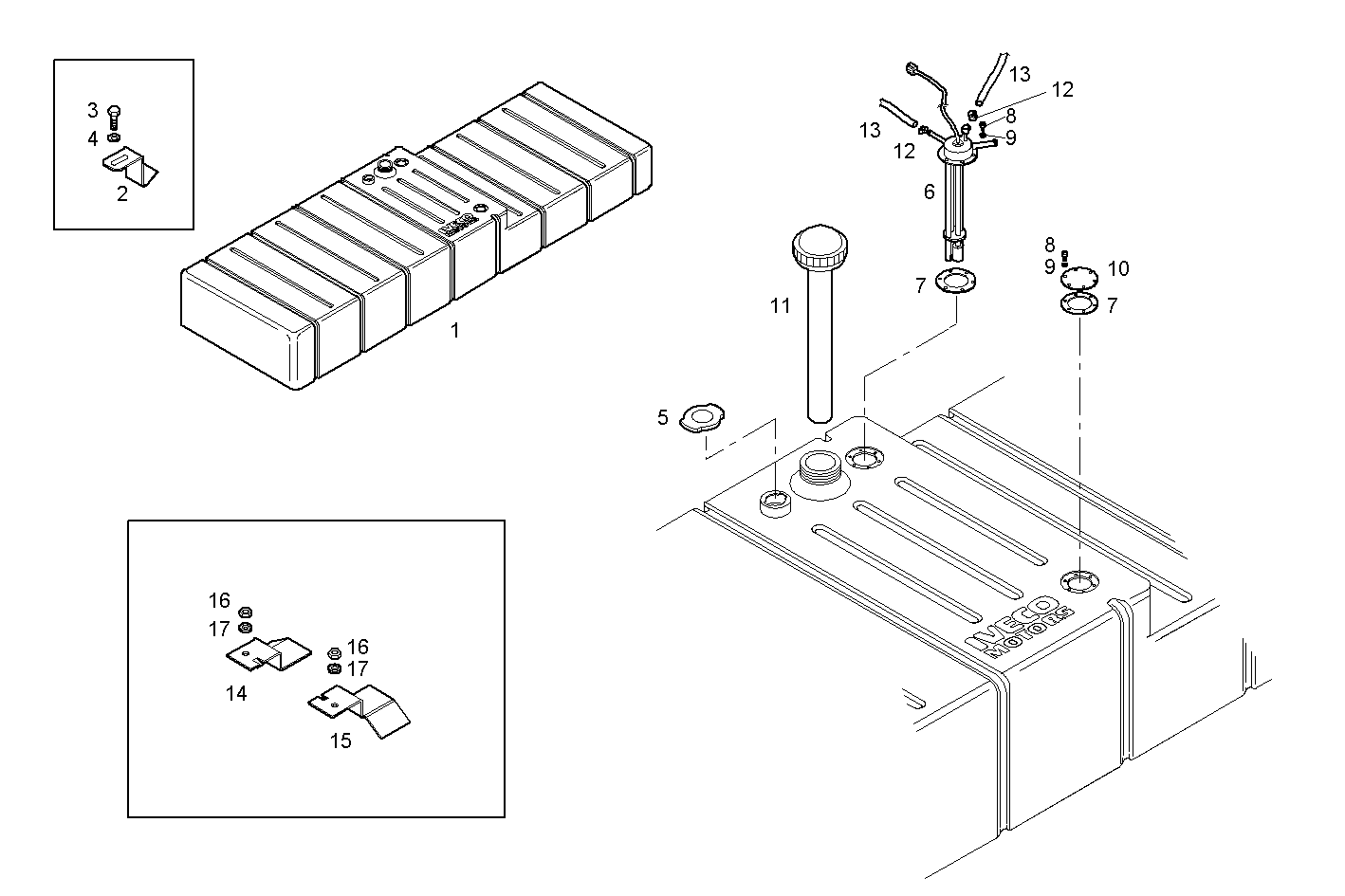

| Item |
Part number |
Description |
|
1 |
503111804 |
TANK |
|
2 |
503111785 |
RETAINER |
|
3 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
4 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
5 |
2993924 |
FUEL TANK PLUG |
|
6 |
503112816 |
CONTROL ASSEMBLY ASSY |
|
7 |
8030334 |
FLAT ENGINE GASKET |
|
8 |
16687824 |
CYLIND-HEAD SCREW |
|
9 |
11199279 |
SPRING WASHER Ø5X10X0,5 MM |
|
10 |
503111987 |
COVER |
|
11 |
8030287 |
FUEL LEVEL GAUGE |
|
12 |
18087993 |
CLIP Ø8/16 MM |
|
13 |
19056687 |
RUBBER HOSE Ø7,5 MM |
|
14 |
503111786 |
RETAINER |
|
15 |
503111787 |
RETAINER |
|
16 |
17037925 |
HEXAGON NUT M8X1,25 |
|
17 |
17094914 |
WASHER 8x16 |
