GECURSOR400EA.A551

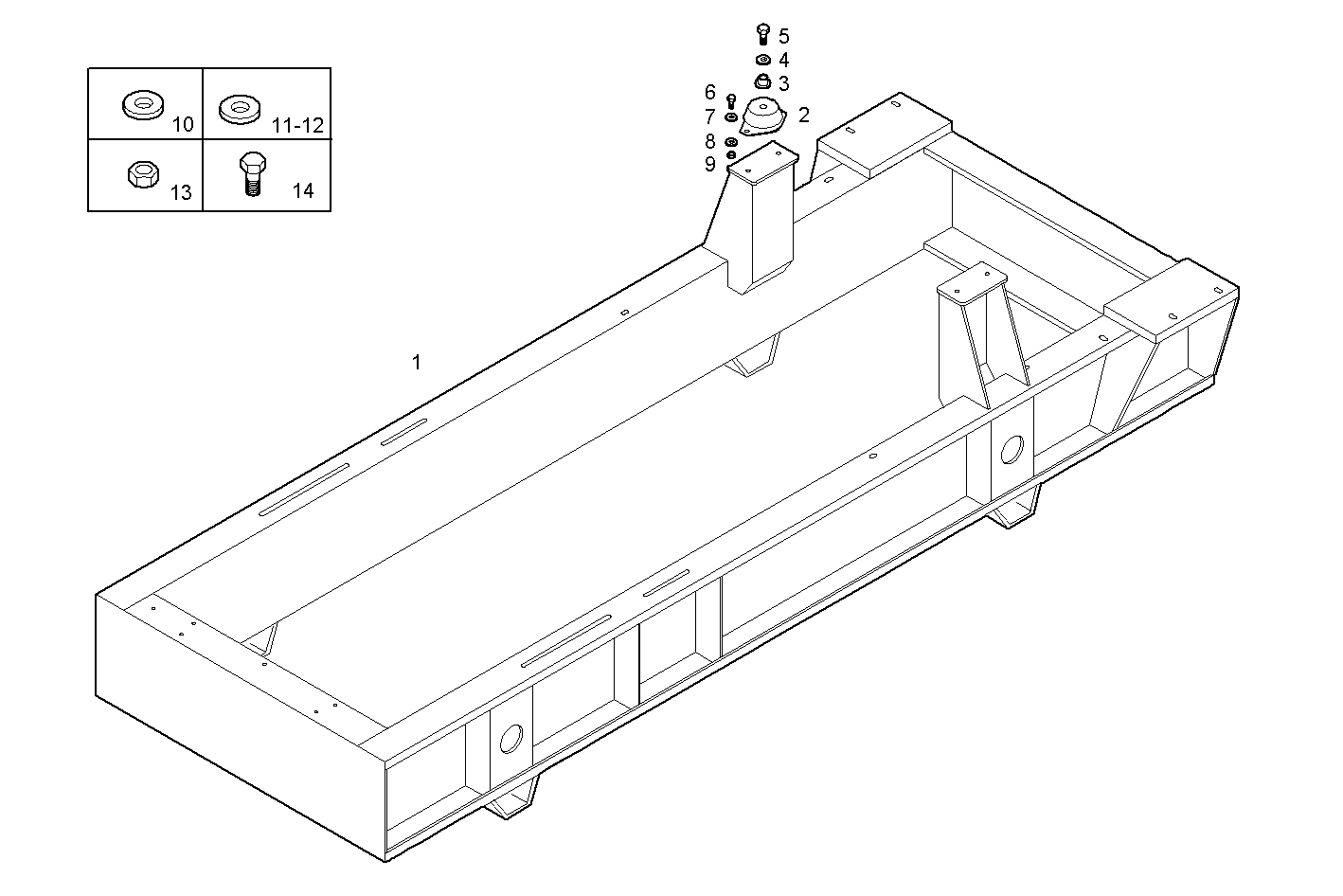

A36125002 SUBBASE FOR GENERATOR UNIT
| Item | Part number | Description |
|---|---|---|
| 1 | 503112656 | SUBBSAE-SUPPORT FRAME |
| 2 | 503112690 | RUBBER PAD |
| 3 | 503112692 | SPACING BAR |
| 4 | 17092174 | SPRING WASHER Ø16X32X3,4 |
| 5 | 16615224 | HEXAGON BOLT M16X70 MM |
| 6 | 16612324 | HEXAGON BOLT M14X35 MM |
| 7 | 17091674 | WASHER Ø14X27X3,0 MM |
| 8 | 17095504 | WASHER Ø14X28 MM |
| 9 | 17038725 | NUT M14 |
| 10 | 17709474 | TOOTHED WASHER |
| 11 | 17092774 | WASHER Ø20X38X4,6 MM |
| 12 | 17096050 | WASHER Ø20X37 MM |
| 13 | 17039321 | NUT M20X2,5 |
| 14 | 16617224 | SCREW M20X50 |
