GEF3230MA.R980

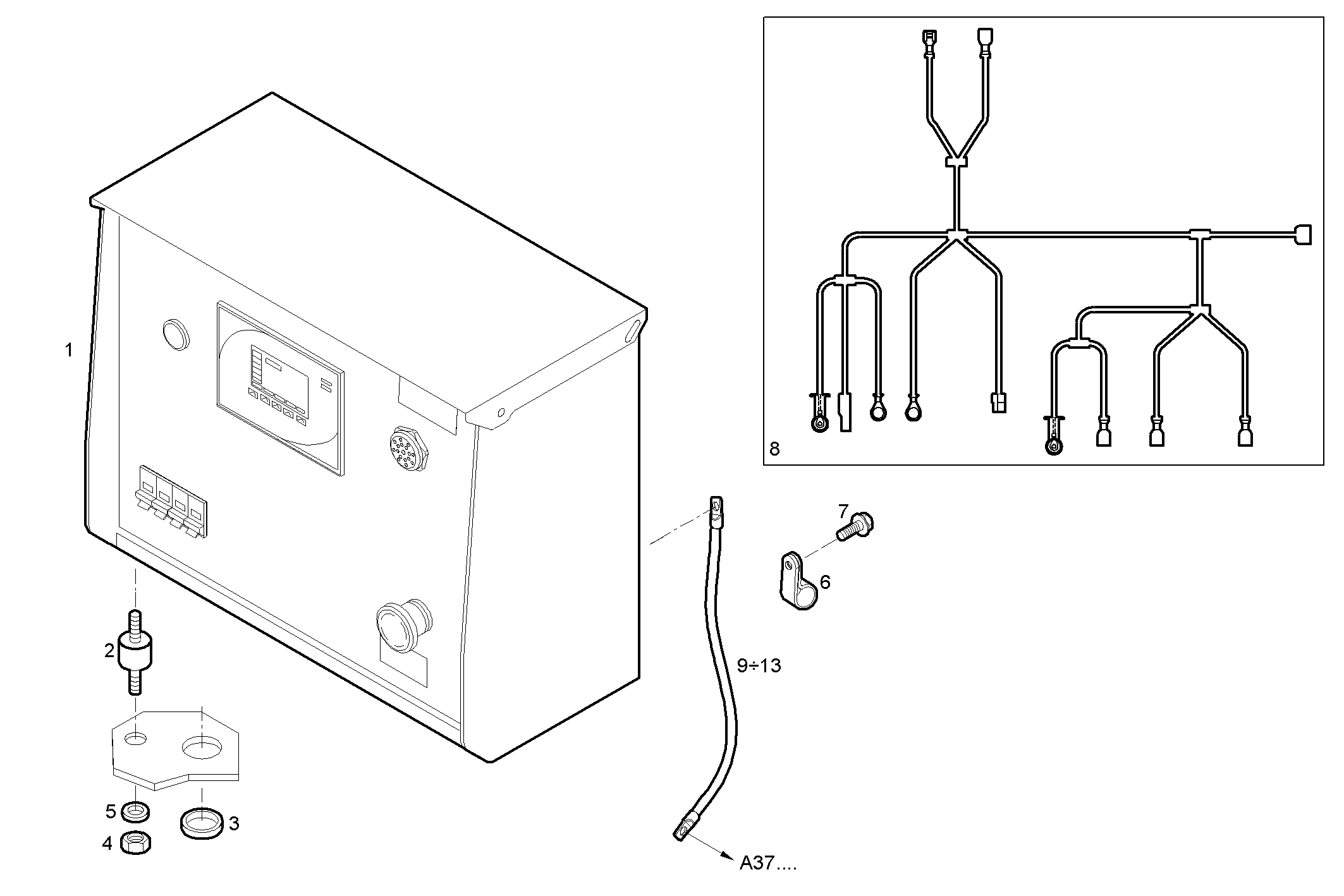

A64105011 AUTOMATIC CONTROL PANEL - 63A 12V 3 POLI
| Item | Part number | Description |
|---|---|---|
| 1 | 503114499 | CONTROL BOARD ASSY AUTOMAT. |
| 2 | 4910949 | RUBBER LUG |
| 3 | 8113214 | INSULATING RING |
| 4 | 17037821 | HEXAGON NUT M6X1 |
| 5 | 17088474 | WASHER Ø6X12 MM |
| 6 | 17314990 | FASTENING BRACKET |
| 7 | 16603724 | HEXAGON BOLT M6X20 MM (8.8) |
| 8 | 503114489 | ENGINE HARNESS |
| 9 | 503114480 | WIRE/CABLE U |
| 10 | 503114481 | WIRE/CABLE V |
| 11 | 503114482 | WIRE/CABLE W |
| 12 | 503114483 | WIRE/CABLE N |
| 13 | 503114484 | WIRE/CABLE L=650 mm.-yellow/green-Ø 10mm.-8 |
