GEF3240MA.R980

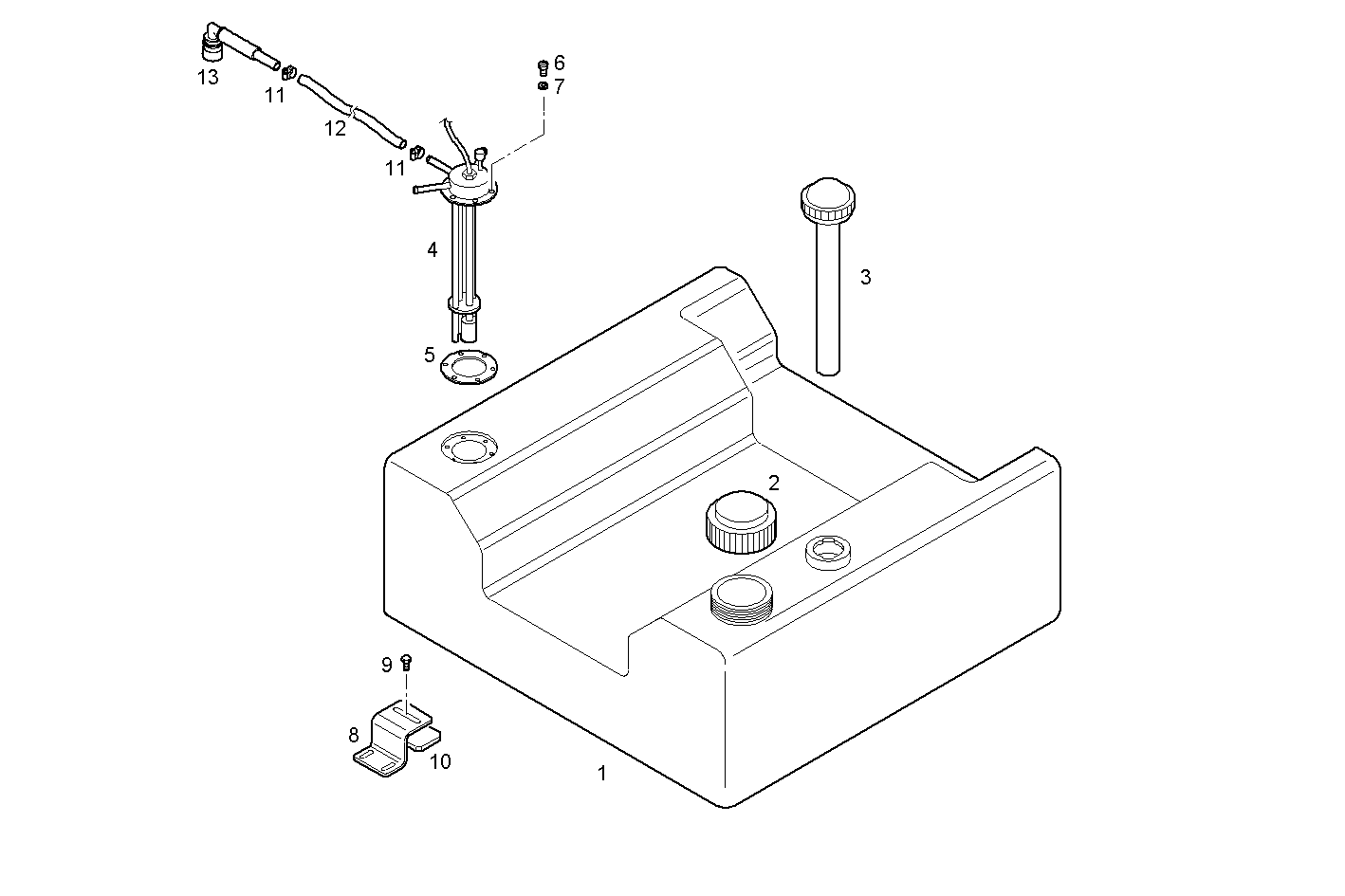

A29215005 FUEL TANK
| Item | Part number | Description |
|---|---|---|
| 1 | 8030294 | TANK |
| 2 | 500025735 | LOCKABLE FUEL CAP |
| 3 | 8030287 | FUEL LEVEL GAUGE |
| 4 | 503115209 | FUEL LEVEL GAUGE ASSY |
| 5 | 8030334 | FLAT ENGINE GASKET |
| 6 | 16687824 | CYLIND-HEAD SCREW |
| 7 | 11199279 | SPRING WASHER Ø5X10X0,5 MM |
| 8 | 503115161 | FASTENING BRACKET |
| 9 | 16585870 | HEXAGON BOLT M6X20 |
| 10 | 503110491 | SPACING BAR |
| 11 | 18087993 | CLIP Ø8/16 MM |
| 12 | 16899187 | HOSE |
| 13 | 503115267 | SWIVEL COUPLING |
