GEF3250MA.R980

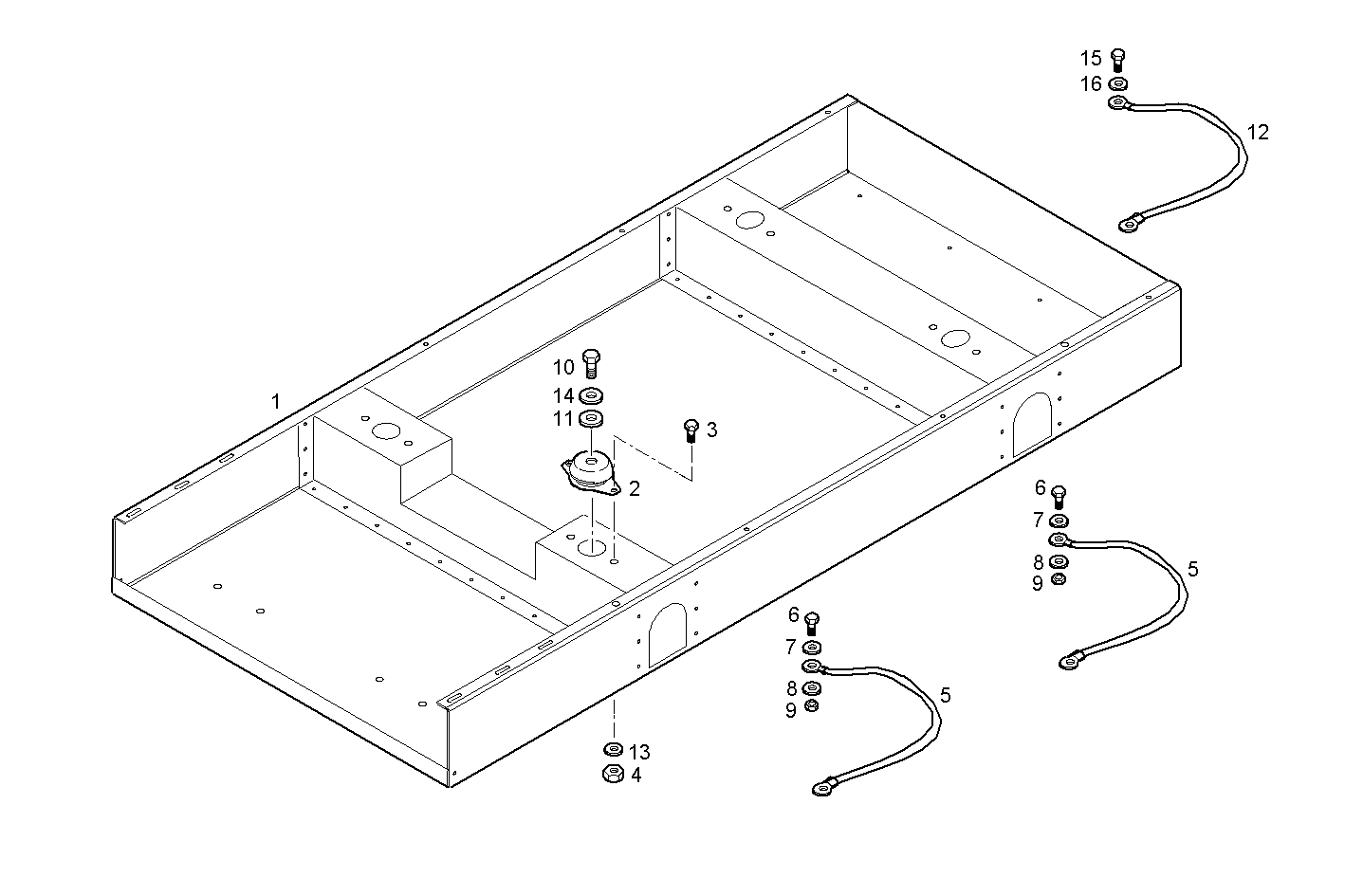

A36105009 SUBBASE FOR GENERATOR UNIT
| Item | Part number | Description |
|---|---|---|
| 1 | 503115184 | SUBBSAE-SUPPORT FRAME |
| 2 | 503111673 | RUBBER PAD |
| 3 | 16607625 | SCREW M10X25 |
| 4 | 17038125 | NUT M10 |
| 5 | 8031723 | EARTH WIRE L=250 MM - FOR SEA WATER ADAPT. |
| 6 | 16609725 | HEXAGON BOLT M6X14 MM |
| 7 | 17094724 | WASHER Ø6X12 MM |
| 8 | 17710074 | WASHER Ø6X11 MM |
| 9 | 17037821 | HEXAGON NUT M6X1 |
| 10 | 16614934 | SCREW M16X55 MM |
| 11 | 17095724 | WASHER Ø16 MM |
| 12 | 8104707 | WIRE/CABLE |
| 13 | 17090474 | SPRING WASHER Ø10X27 MM SP=2,5 |
| 14 | 17092174 | SPRING WASHER Ø16X32X3,4 |
| 15 | 16605424 | SCREW M8X16 MM (8.8) |
| 16 | 17089574 | WASHER Ø8X16 MM |
