GEF3250MA.R980

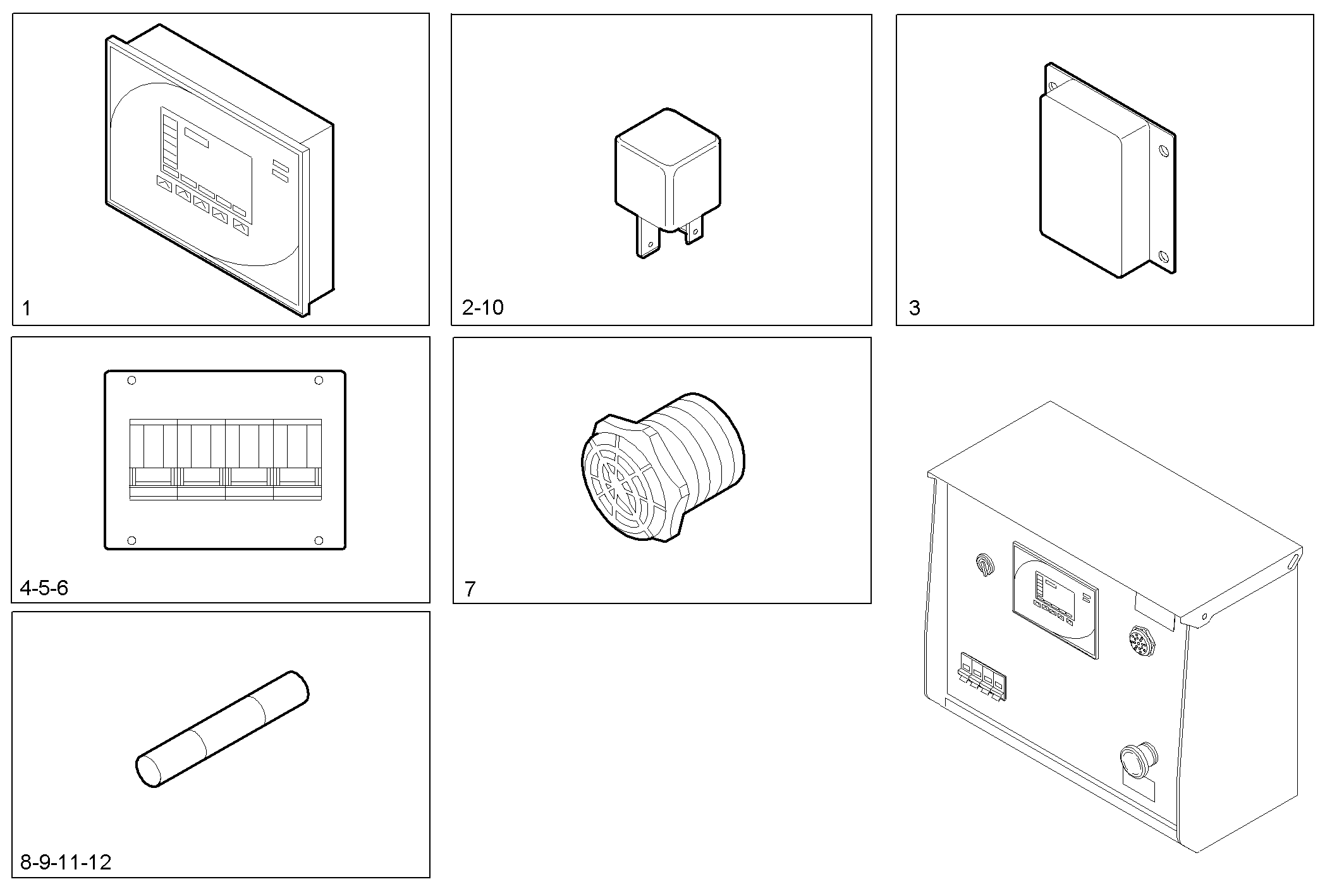

Q0000129 AUTOMATIC CONTROL PANEL - components

Iveco/FPT AUTOMATIC  CONTROL PANEL

Item Part number Description
1 503358620 SWITCH PANEL NEF 4 cyl. Automatic contr. Board
1 503358628 SWITCH PANEL CURSOR 8 Manual contr. Board
1 503358627 SWITCH PANEL NEF6 cyl Mech. Manual contr. Board
1 503358626 SWITCH PANEL NEF6 cyl Elect. Manual contr. Board
1 503358625 SWITCH PANEL NEF 4 cyl. Manual contr. Board
1 503358624 SWITCH PANEL CURSOR 13 Automatic contr. Board
1 503358623 SWITCH PANEL CURSOR 8 Automatic contr. Board
1 503358622 SWITCH PANEL NEF6 cyl Mech. Autom. contr. Board
1 503358621 SWITCH PANEL NEF6 cyl Elect. Autom. contr. Board
1 503358629 SWITCH PANEL CURSOR 13 Manual contr. Board
2 8095012 RELAY 12V
3 8095057 BATTERY CHARGING
4 8095059 SWITCH
5 8095060 MINIMUN TENSION COIL
6 8095061 SWITCH
7 8095018 ACOUSTIC HORN
8 8095019 FUSE 10x38 2A
9 8095020 FUSE 10x38 4A
10 8095062 RELAY 7A 12V
11 8095063 FUSE 10x38 10A
12 8095064 FUSE 10x38 2A
