GENEF100MA.A004

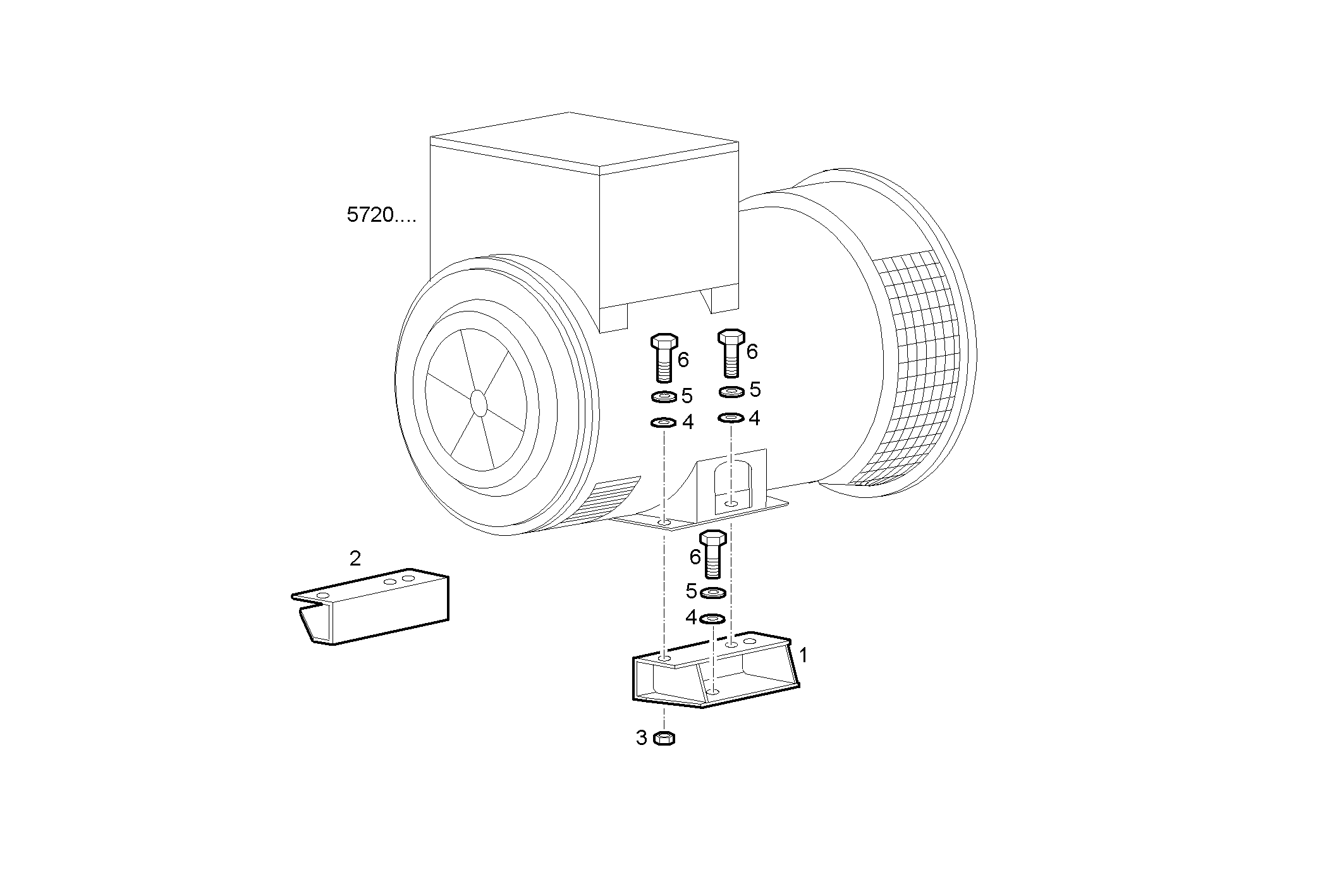

5720.002 ELECTRIC MACHINE
| Item | Part number | Description |
|---|---|---|
| 1 | 503113055 | SPACING BAR |
| 2 | 503113060 | SPACING BAR |
| 3 | 17038931 | HEXAGON NUT M16X2 |
| 4 | 17095724 | WASHER Ø16 MM |
| 5 | 17092174 | SPRING WASHER Ø16X32X3,4 |
| 6 | 16614524 | HEXAGON BOLT M16X35 MM |
