GENEF180E.R980

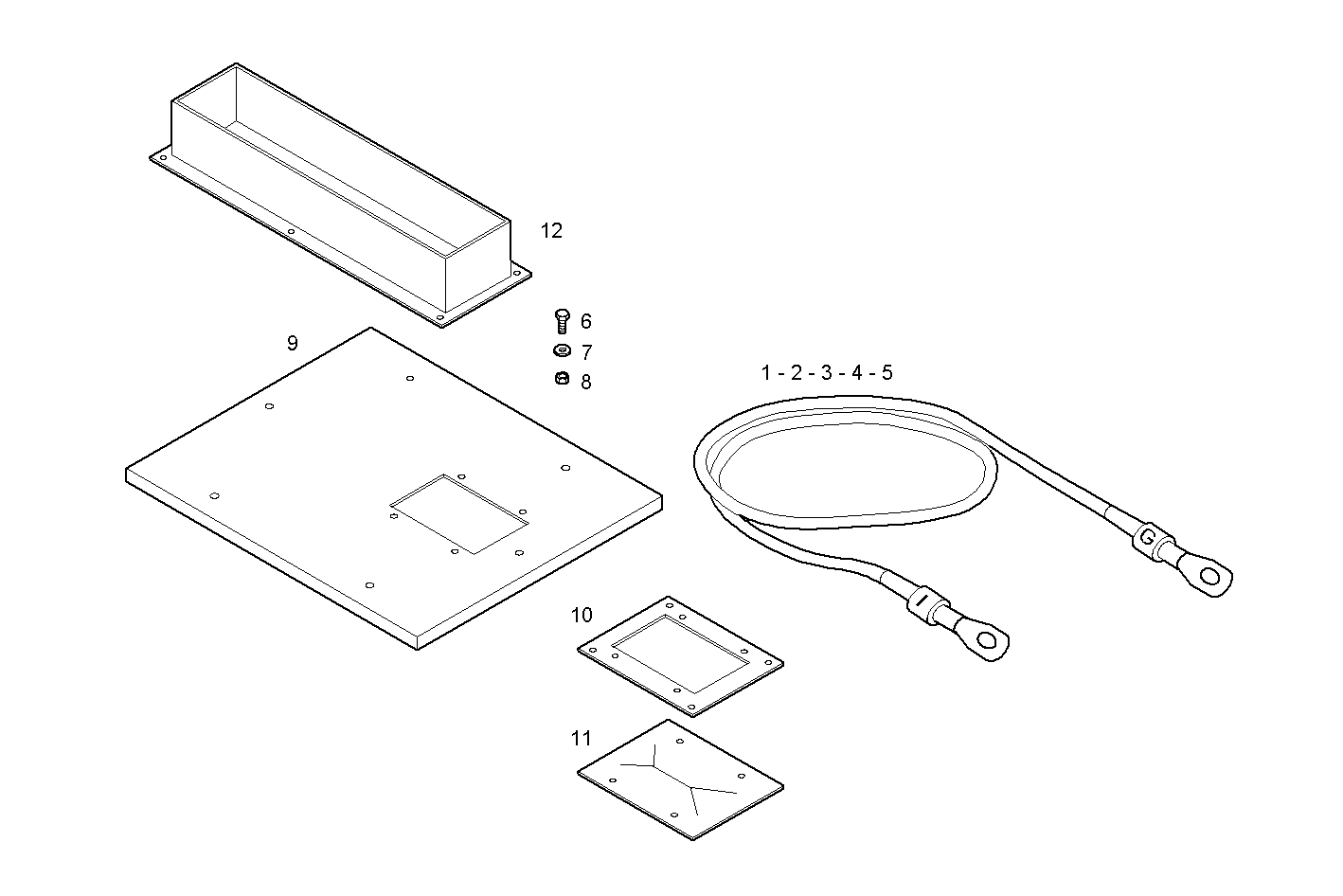

A62705005 POWER CABLES - for Stamford [From # 15/12/04] [From # 15/12/04]
| Item | Part number | Description |
|---|---|---|
| 1 | 503111227 | WIRE/CABLE L=900 MM |
| 2 | 503112374 | WIRE/CABLE |
| 3 | 503112373 | WIRE/CABLE |
| 4 | 503112372 | WIRE/CABLE |
| 5 | 503112371 | WIRE/CABLE |
| 6 | 16609724 | HEXAGON BOLT |
| 7 | 17088474 | WASHER Ø6X12 MM |
| 8 | 17037821 | HEXAGON NUT M6X1 |
| 9 | 503112196 | EL.MACHINE COVER |
| 10 | 503111035 | COVER |
| 11 | 503111036 | GROMMET |
| 12 | 503112194 | PROTECTION |
