GENEF180E.R980

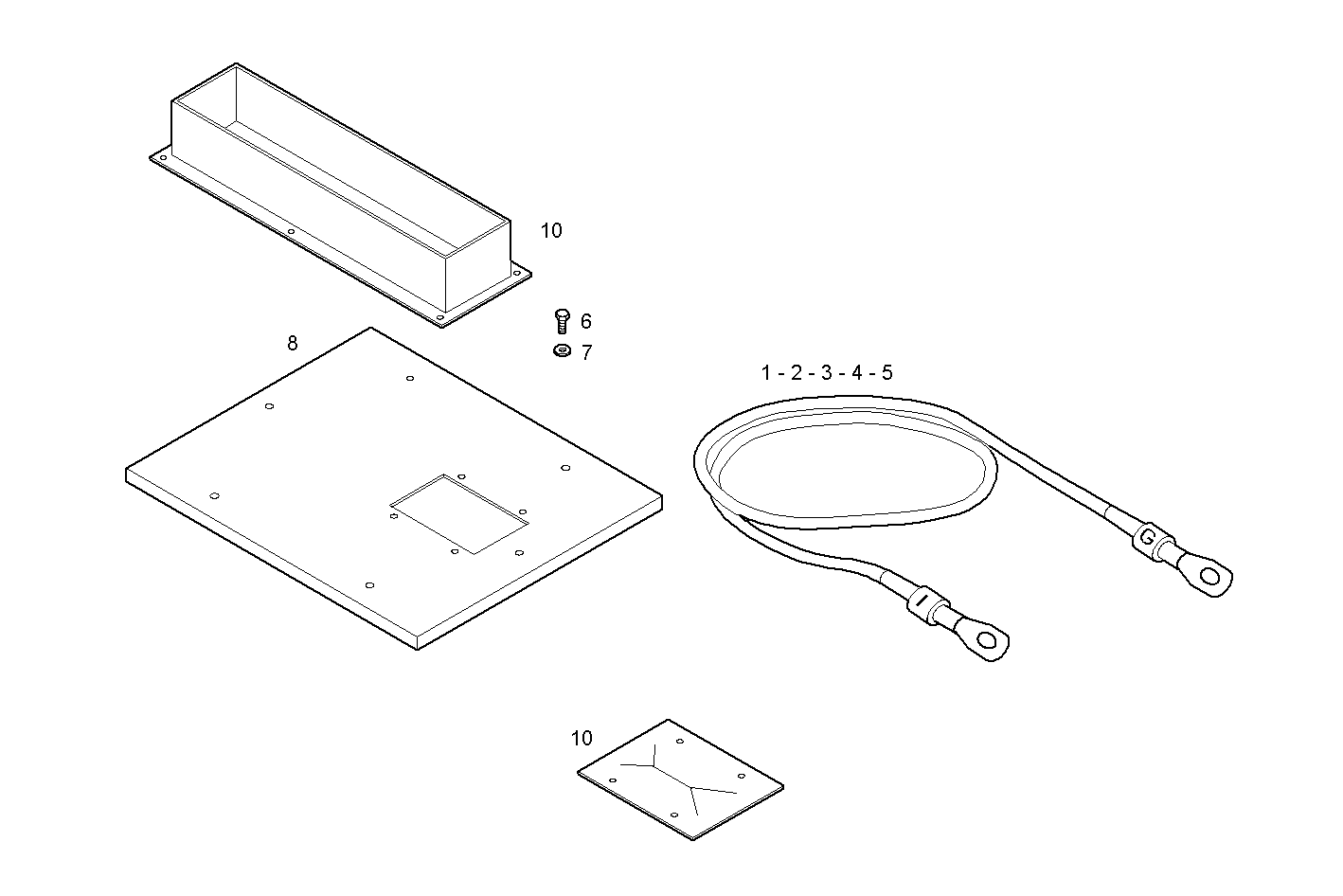

A62725005 POWER CABLES - for Marelli [From # 15/12/04] [From # 15/12/04]
| Item | Part number | Description |
|---|---|---|
| 1 | 503111211 | WIRE/CABLE L=700 MM |
| 2 | 503112401 | WIRE/CABLE |
| 3 | 503112400 | WIRE/CABLE |
| 4 | 503112399 | WIRE/CABLE |
| 5 | 503112398 | WIRE/CABLE |
| 6 | 16609724 | HEXAGON BOLT |
| 7 | 17088474 | WASHER Ø6X12 MM |
| 8 | 503111035 | COVER |
| 9 | 503111036 | GROMMET |
| 10 | 503112193 | PROTECTION |
