GENEF180E.R980

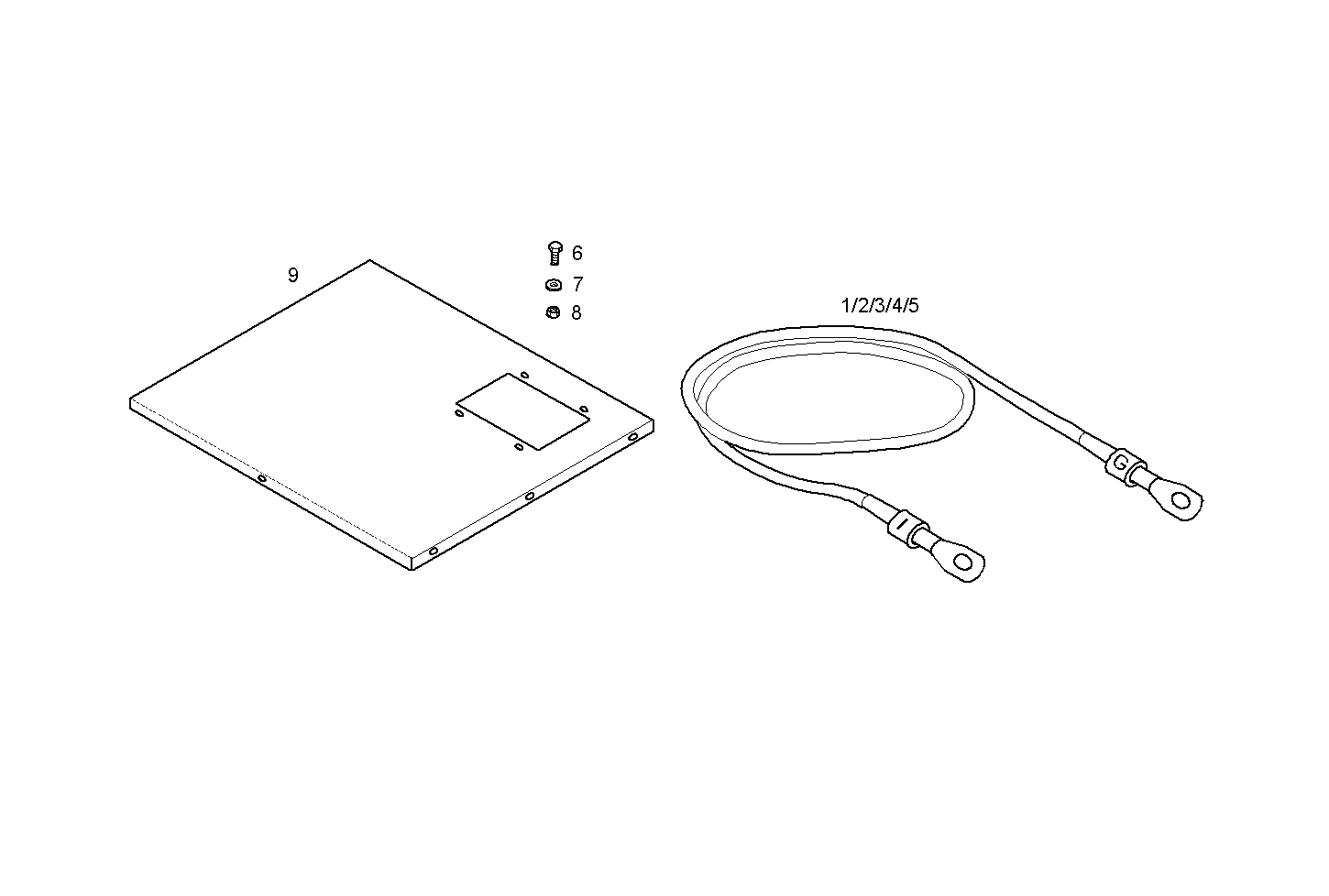

A62735001 POWER CABLES - for Mecc-Alte
| Item | Part number | Description |
|---|---|---|
| 1 | 503111212 | WIRE/CABLE L=670 MM |
| 2 | 503111213 | WIRE/CABLE L=680 MM |
| 3 | 503111214 | WIRE/CABLE L=700 MM |
| 4 | 503111215 | WIRE/CABLE L=880 MM |
| 5 | 503111442 | WIRE/CABLE L=700 MM |
| 6 | 16609725 | HEXAGON BOLT M6X14 MM |
| 7 | 17088474 | WASHER Ø6X12 MM |
| 8 | 17037821 | HEXAGON NUT M6X1 |
| 9 | 504080950 | EL.MACHINE COVER |
