GENEF200E.R980

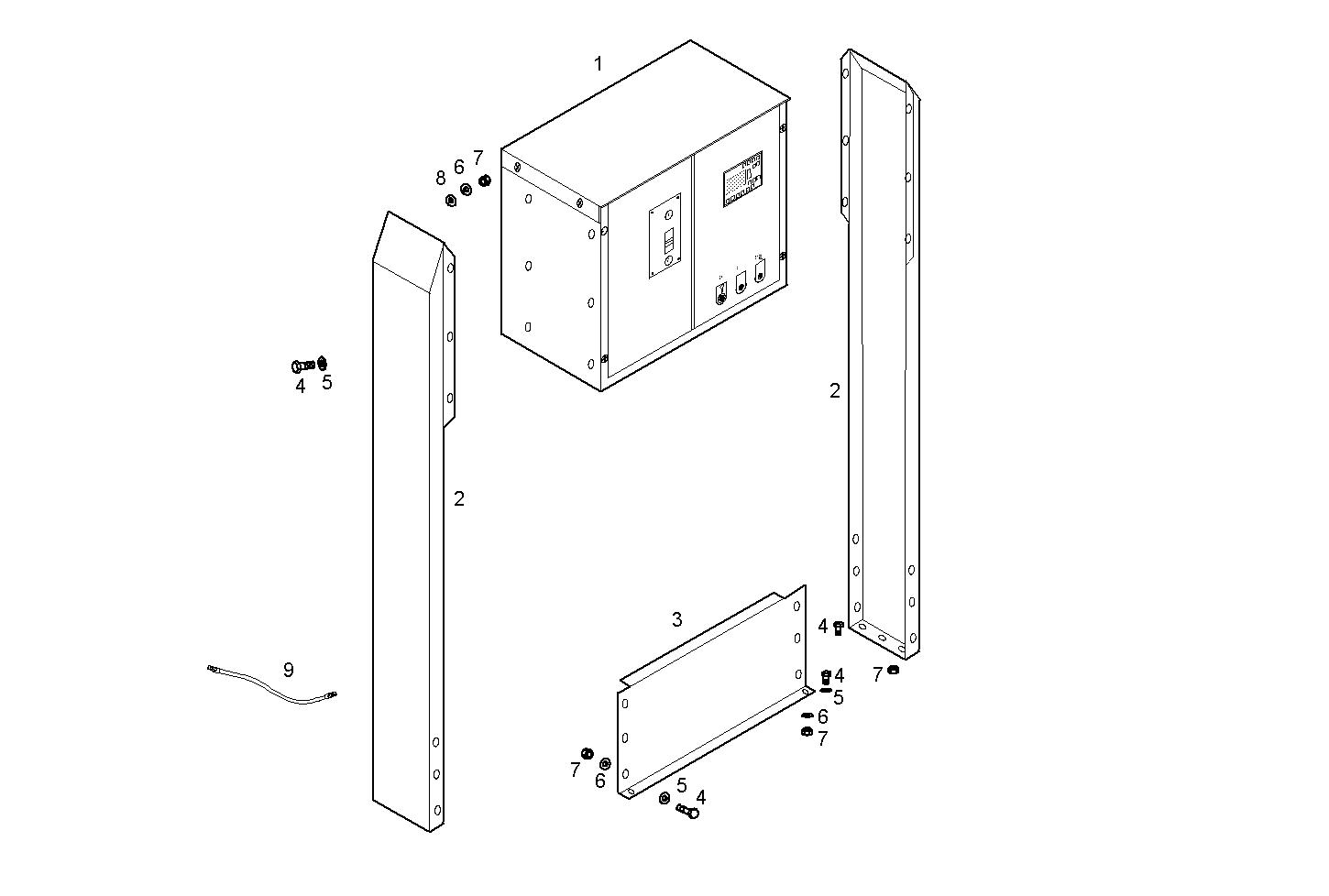

A64105007 AUTOMATIC CONTROL PANEL
| Item | Part number | Description |
|---|---|---|
| 1 | 503112102 | CONTROL BOARD ASSY AUTOMAT. |
| 2 | 504080733 | SUPPORT |
| 3 | 503110830 | SUPPORT |
| 4 | 16605524 | HEXAGON BOLT M8X20 MM |
| 5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 6 | 17094914 | WASHER 8x16 |
| 7 | 17037925 | HEXAGON NUT M8X1,25 |
| 8 | 17710174 | WASHER Ø6X11 MM |
| 9 | 8006993 | EARTH WIRE |
