GENEF45MA.R980

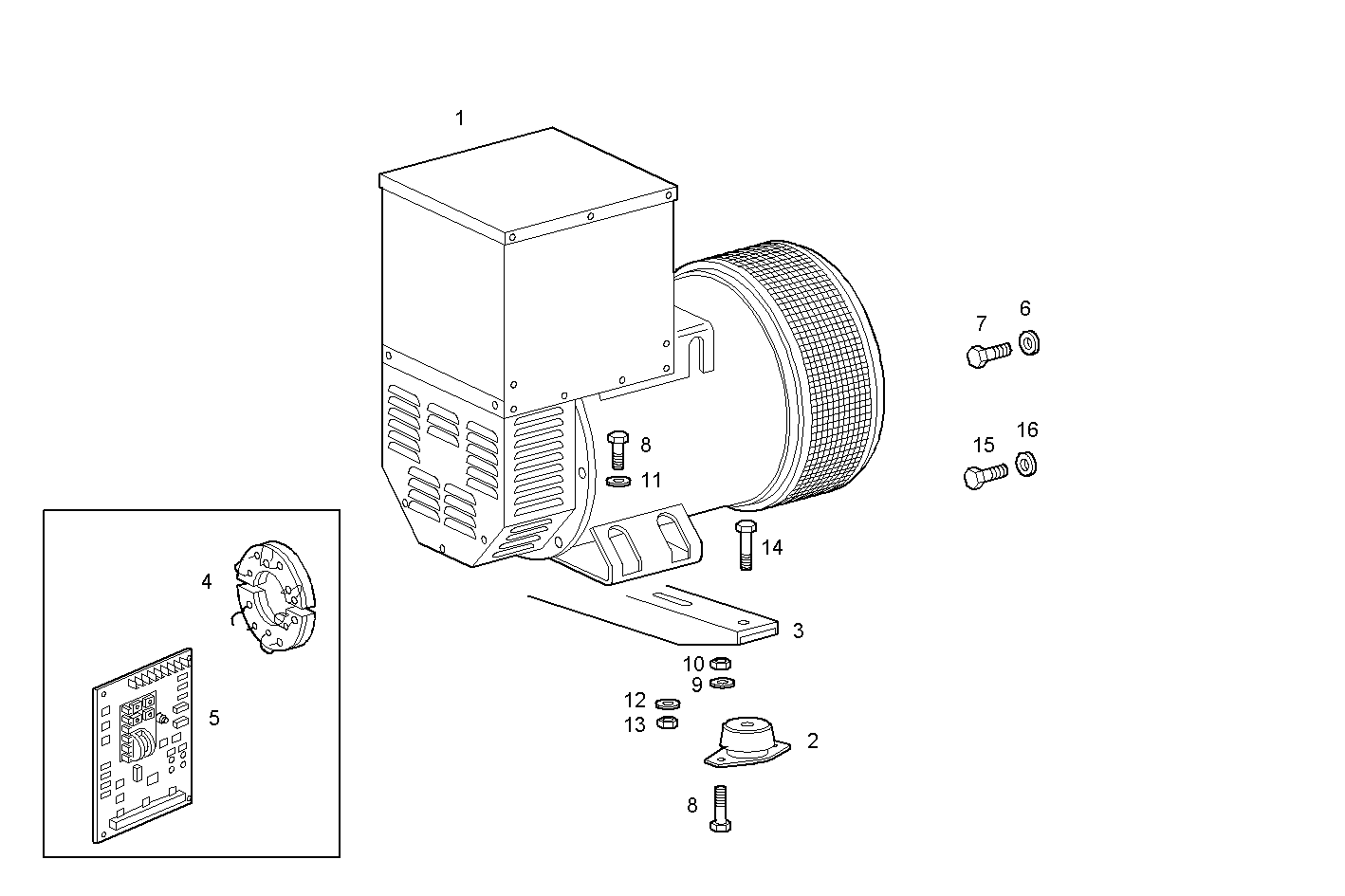

A37415011 ELECTRIC MACHINE - MECC-ALTE

Iveco/FPT ELECTRIC MACHINE

Item Part number Description
1 8027352 ELECTRIC MACHINE
2 503111672 RUBBER LUG
3 503113378 TIE
4 8093763 EL.MACH.DIODE BRIDGE
5 8093717 EL.MACHINE VOLTAGE REGUL. MECC-ALTE
6 17494934 WASHER Ø10X18,1X2,2 MM
7 16619124 SCREW M10X22 MM
8 16607724 HEXAGON BOLT M10X1,5X30 MM (8.8)
9 17090474 SPRING WASHER Ø10X27 MM SP=2,5
10 17038131 HEXAGON NUT M10
11 17095724 WASHER Ø16 MM
12 17092174 SPRING WASHER Ø16X32X3,4
13 17038925 NUT M16
14 16614524 HEXAGON BOLT M16X35 MM
15 16607824 HEXAGON BOLT M10X35 MM (8.8)
16 17090174 SPRING WASHER Ø10X20 MM
