GENEF60MA.A71M

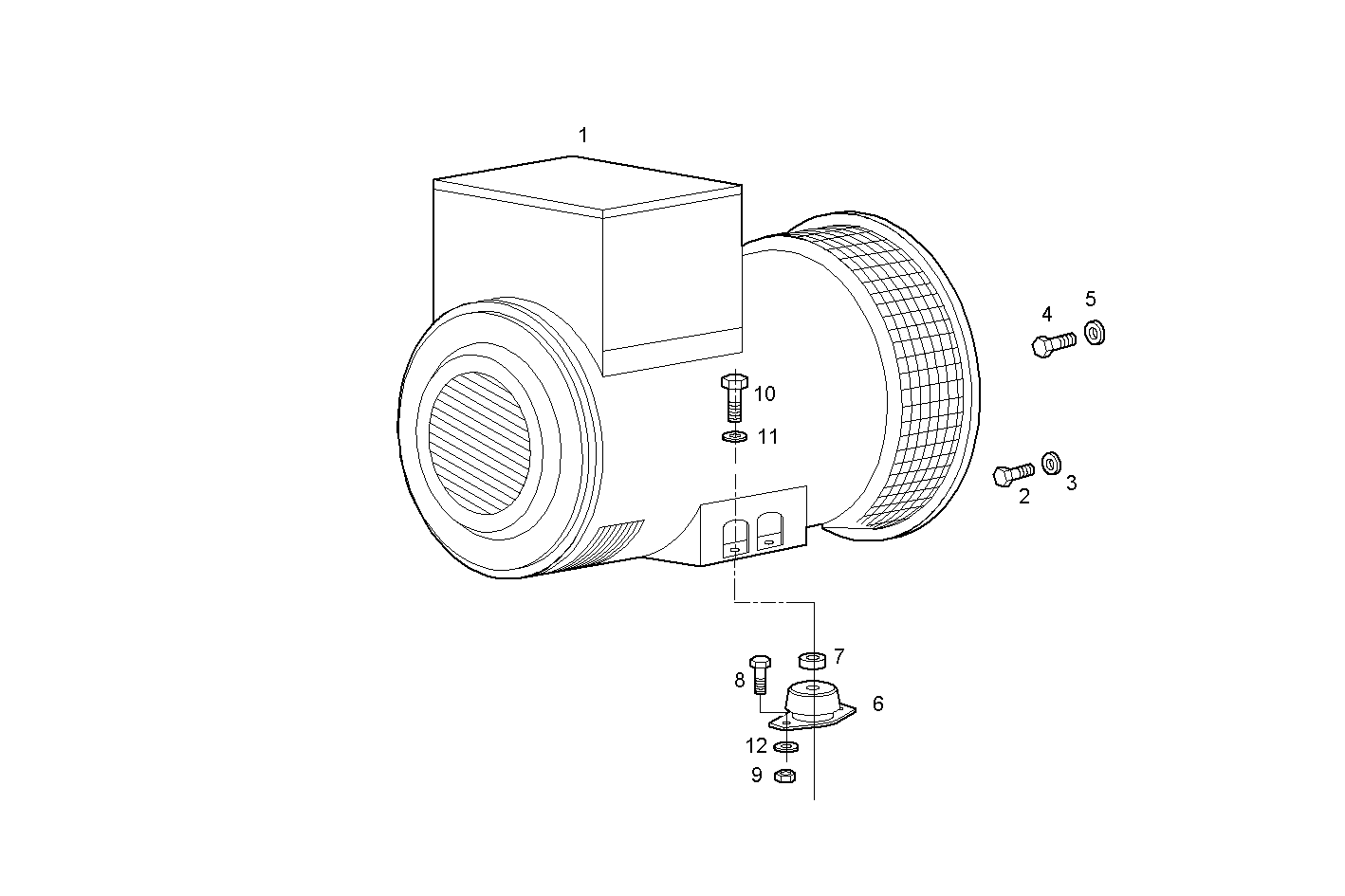

A37415012 ELECTRIC MACHINE - MECC-ALTE
| Item | Part number | Description |
|---|---|---|
| 1 | 8027353 | ELECTRIC MACHINE MECC-ALTE |
| 2 | 16607824 | HEXAGON BOLT M10X35 MM (8.8) |
| 3 | 17090174 | SPRING WASHER Ø10X20 MM |
| 4 | 16619124 | SCREW M10X22 MM |
| 5 | 17494934 | WASHER Ø10X18,1X2,2 MM |
| 6 | 503111672 | RUBBER LUG |
| 7 | 503113166 | SPACING BAR |
| 8 | 16607734 | HEXAGON BOLT M10X30 MM |
| 9 | 17038125 | NUT M10 |
| 10 | 16615224 | HEXAGON BOLT M16X70 MM |
| 11 | 17092174 | SPRING WASHER Ø16X32X3,4 |
| 12 | 17090474 | SPRING WASHER Ø10X27 MM SP=2,5 |
